Model No.: LPM
Brand: FERRTX
Species: Inductor Surface Mount
Supply Type: Original Manufacturer
Place Of Origin: China
Features: Not Applicable
Installation Method: Surface Mount
Certifications: RoHS 3.0, REACH, AEC-Q200
Core Material: Carbonyl Iron Powder / Alloy Iron Powder
DCR Range: 0.25mΩ min - 350mΩ max
Saturation Current: 3.8A to 40A (LPM series)
Operating Frequency: Up to 5MHz
Shielding Type: Full Molded Shield
Operating Temp: 40℃ to +150℃
Auto-Grade: IATF 16949 Compliant
Medical Application: EMI Sensitive Devices
| Selling Units: | Piece/Pieces |
|---|---|
| Download: |
|
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 2~8weeks
Port: Xi'an,Shanghai
Payment Type: L/C,T/T

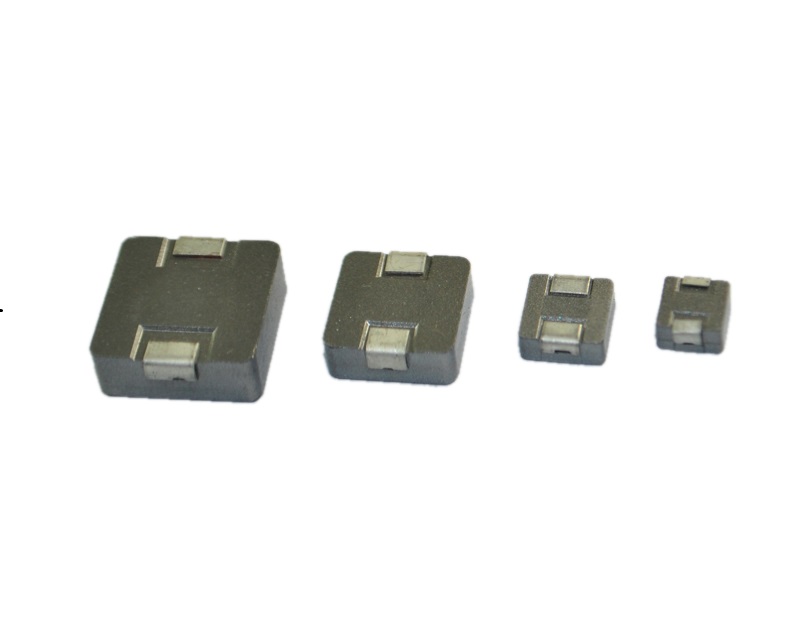

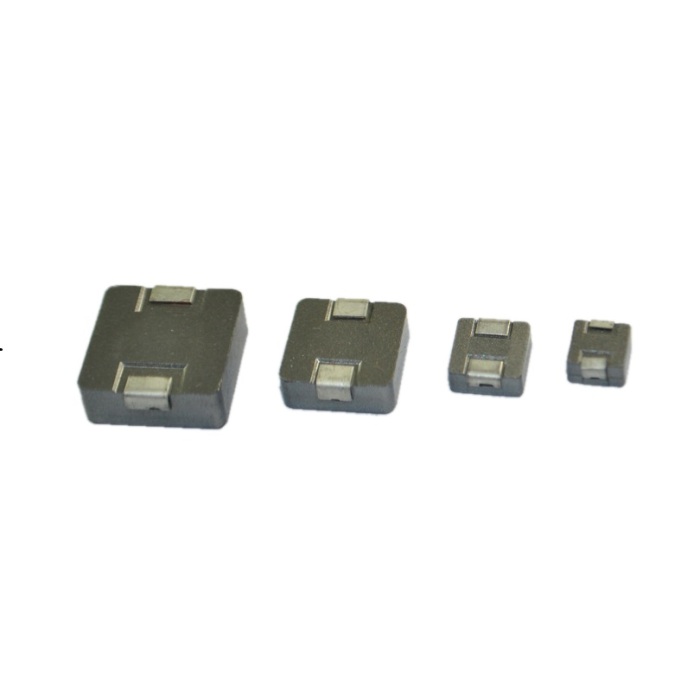

FERRTX Shielding Inductor LPM Series redefines smd power inductor performance with revolutionary molded-shield technology. Designed for mission-critical applications from solar farms to operating rooms, our inductors deliver:
Ultra-Low DCR down to 0.25mΩ (LPM1040) – Minimize energy loss in high-current paths
5MHz High-Frequency Operation – Enable compact DC-DC converters
EMI Suppression >30dB – Exceed medical-grade isolation standards
-40°C to +150°C operating range – Thrive in harsh environments

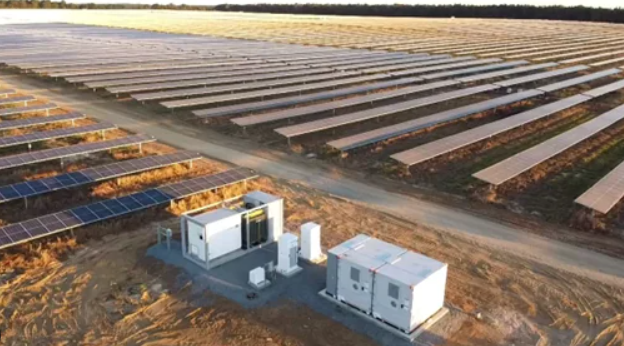

Ultra Low DCR Inductors for Solar Inverters
When Tesla’s engineers needed to boost inverter efficiency by 1.5%, they chose ModuShield™. Why? Our carbonyl iron powder core achieves:
Medical Grade shielded inductors
In GE’s latest MRI control module, our shielding inductor technology eliminated EMI-induced false readings. Critical specs for life-saving devices:
AEC-Q200 & ISO 13485 Certified
Leakage flux <0.3μT (vs. 2μT in standard inductors)
Passed 10kV ESD surge tests
Non-magnetic alloys prevent interference
Design Tip: Pair with our EMI Filter arrays for full-noise cancellation in ECG monitors.
High Frequency DC-DC Inductors 5MHz
Server giants like Dell EMC use ModuShield™ to shrink server PSU size by 22%. Key advantages for GaN/SiC designs:
| Model | Q Factor | SRF |
| LPM1040 | 48@MHz | >10MHz |
| LPM1510 | 55@5MHz | >12MHz |
Zero core loss up to 150°C
ΔT≤15℃ @ 20A continuous operation
Robust Construction
Drop-in Compatibility
Proven Endurance
| Parameter | LPM0420 | LPM1040 | Test Condition |
|---|---|---|---|
| Inductance | 0.22μH±20% | 10μH±20% | 0.1V, 100kHz |
| DCR max | 0.85mΩ | 25mΩ | DC resistance |
| I_sat | 12.0A | 3.8A | 30% L drop |
| Rated Current | 7.0A | 2.5A | Temp rise 40℃ |
Download full datasheet:PDF file at the top of the page
Custom inductance values (0.1μH–100μH)
IATF 16949 automotive batches
Tape-and-reel packaging (EIA-481 compliant)
