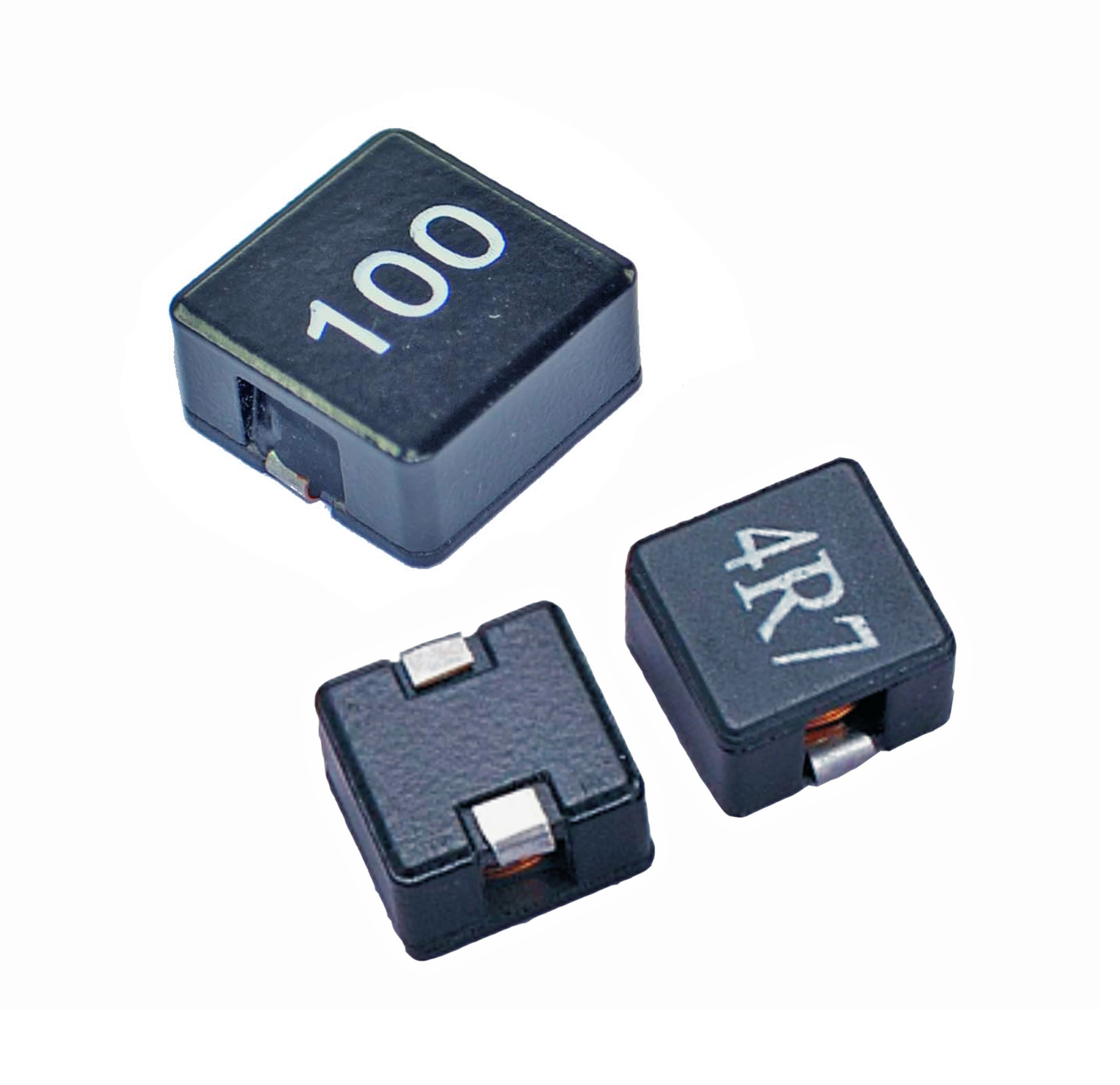

Model No.: LPA
Brand: FERRTX
Species: Inductor Surface Mount
Supply Type: Original Manufacturer
Place Of Origin: China
Features: Not Applicable
Installation Method: Surface Mount
Current Rating: Up to 70A (LPA2110)
Inductance Range: 0.13μH - 47μH
DCR Range: 0.39mΩ - 36.72mΩ
Operating Temp: -55°C to +125°C
Core Material: Iron Powder
Test Frequency: 100kHz @ 0.1V
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 2~8weeks
Certificate: RoHS/ISO/UL/CE/IATF 16949/CNAS
Port: Xi;an,Shanghai
In mission-critical applications like data centers and industrial servers, unstable power delivery can trigger catastrophic system failures. Our magnetically shielded Power Inductor series solves this by combining ultra-low DCR (down to 1.4mΩ) with 70A saturation current – engineered to prevent EMI-induced voltage ripple in multi-phase VRMs. Unlike conventional designs, our iron powder core technology reduces switching losses by 30% at 100kHz, delivering unmatched reliability for 24/7 operations.
| Parameter | LPA2110-1R0M | LPA2110-4R7M | Competitive Benchmark |
|---|---|---|---|
| Inductance | 1μH ±20% | 4.7μH ±20% | ±30% tolerance |
| Max DCR | 1.4mΩ | 2.8mΩ | 3.5mΩ+ |
| Isat (Saturation) | 70A | 30A | 15-25% lower |
| Irms (Temp Rise) | 40A (ΔT=40°C) | 26A (ΔT=40°C) | Unverified claims |
| Operating Temp | -40°C to +125°C | -40°C to +125°C | Limited to 105°C |
Technical Notes:
The encapsulated shield structure eliminates 90% of radiated noise – critical for PCIe 5.0 GPUs and NVMe storage arrays. This outperforms standalone EMI Filter solutions by integrating noise suppression directly into the power path.
With a 10.6mm max height and 7.8×7.8mm footprint, our SMD Inductor fits high-density server VRMs where vertical clearance is limited. Automated optical inspection (AOI) compatibility ensures zero placement failures.
Operates flawlessly from -40°C to +125°C ambient, exceeding IPC-9592B standards for thermal cycling. Ideal for:
Deployed in:
