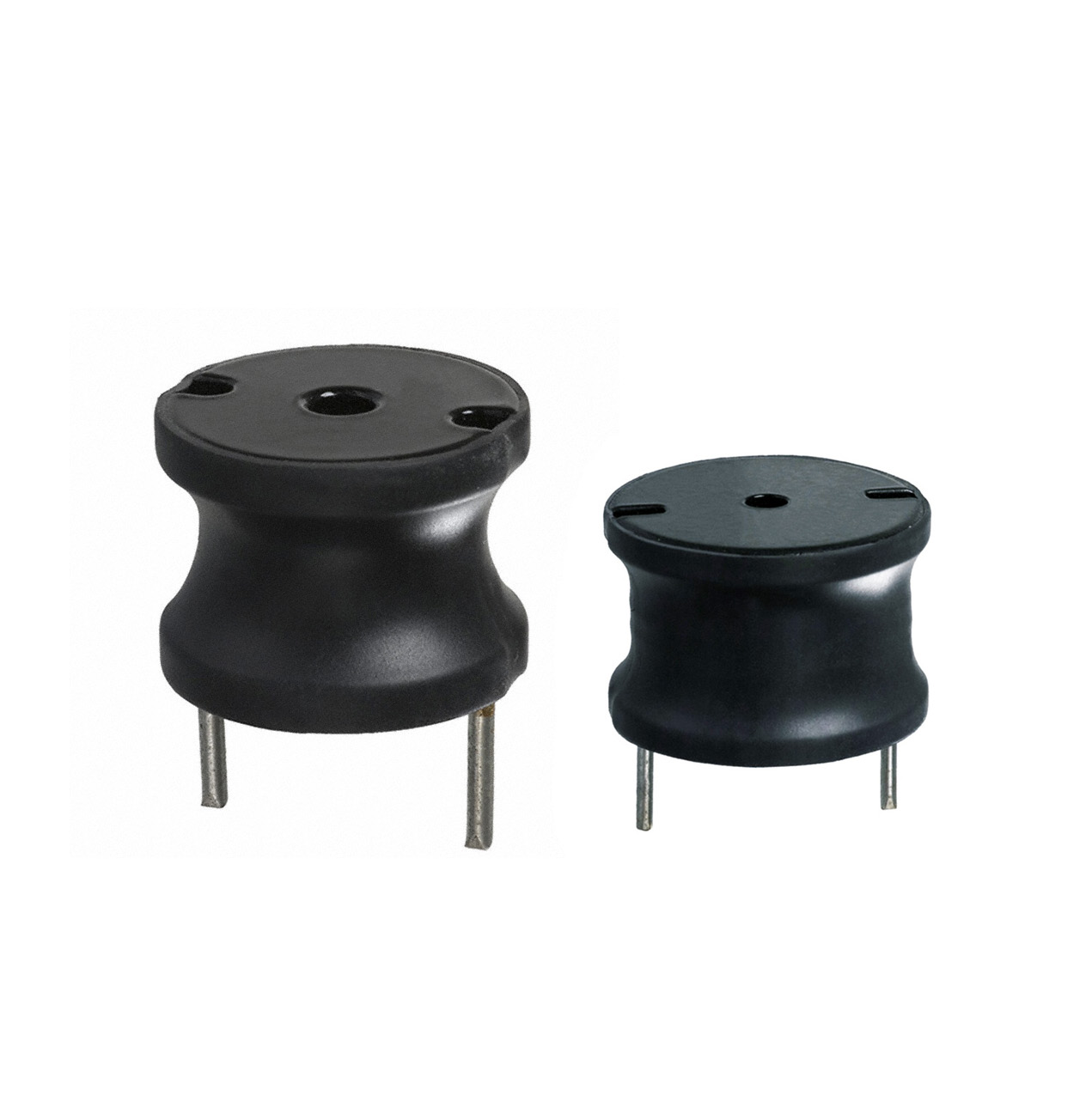

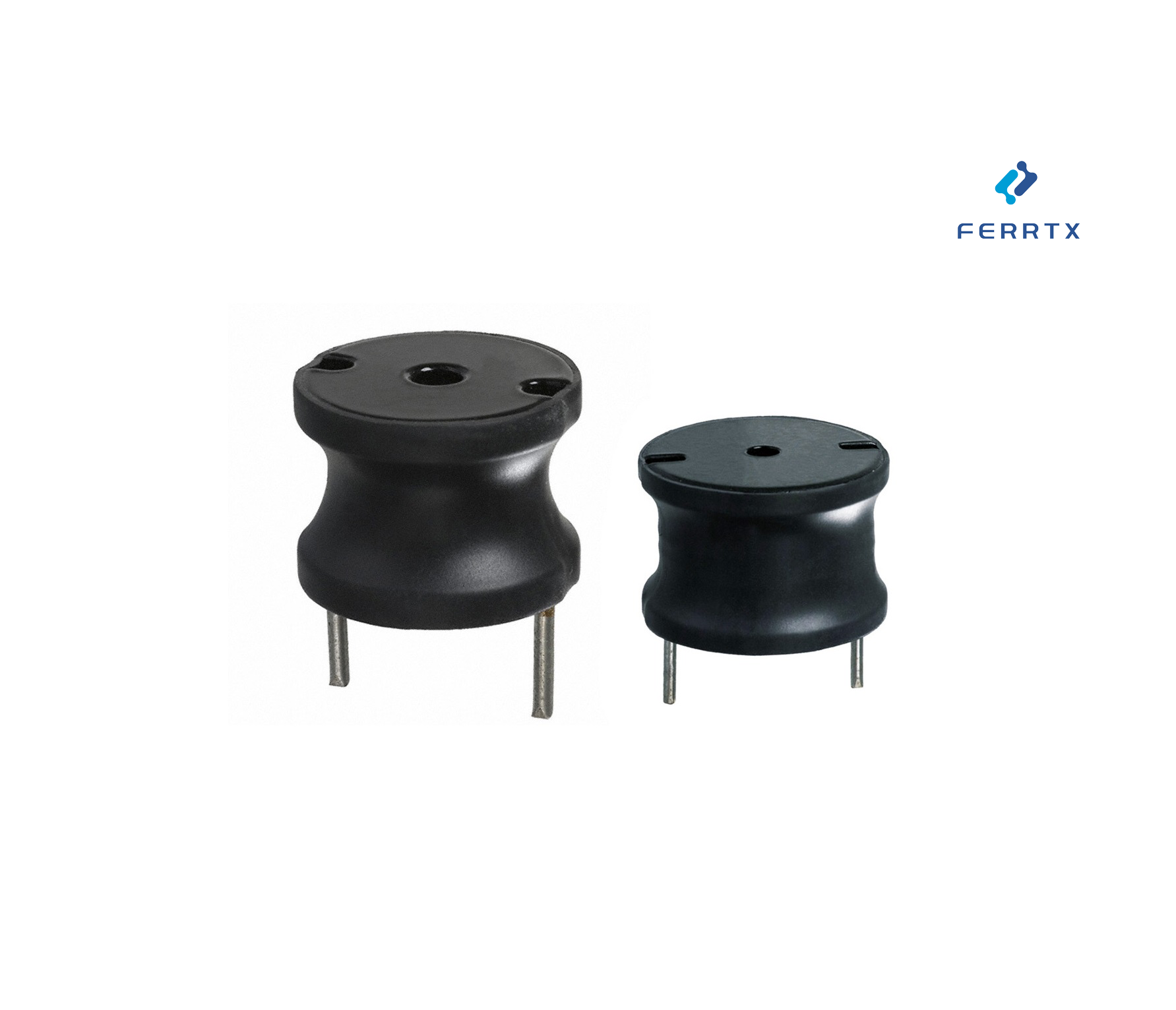

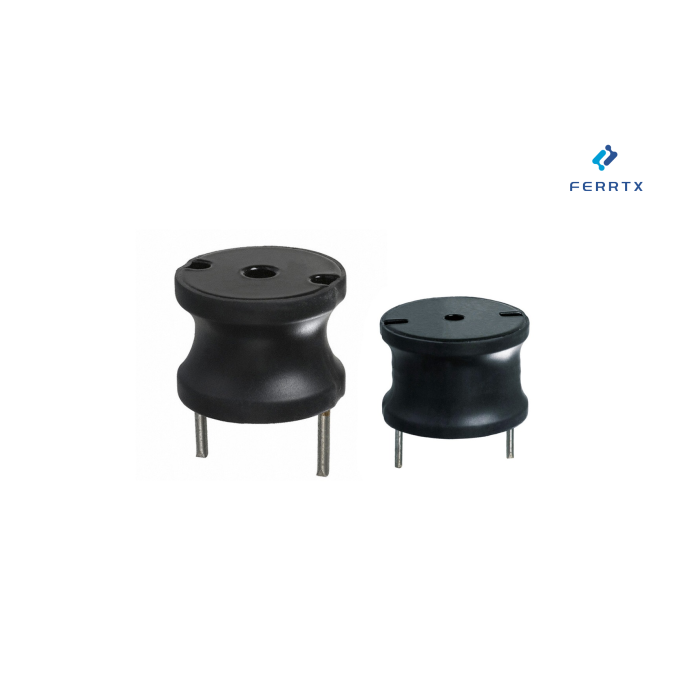

Unshielded Inductor AIRD

Through-Hole Radial High Current Power Chok‌

‌Unshielded Inductor‌ designs, particularly ‌Power Inductor‌ variants, are engineered for compact size and automated assembly, enabling customized sizing to meet diverse application needs. These ‌Unshielded Inductor‌ units excel in cost-sensitive environments due to their superior solderability, heat resistance, and compatibility with reflow processes. Unlike shielded alternatives, ‌Power Inductor‌ solutions with open magnetic paths deliver high saturation currents, making them ideal for power chokes and DC/DC converters in automotive and industrial systems.

For specialized applications like ‌motorcycle gasoline inductor‌ systems, ‌Unshielded Inductor‌ technology ensures reliable EMI suppression in fuel injection controls. Meanwhile, ‌on chip inductor‌ components provide miniaturized filtering for high-frequency SMPs and IoT devices, leveraging ferrite core construction for spike ripple mitigation.

‌Key Features‌

• ‌Open Magnetic Path Design‌:
  Enhances thermal performance of ‌Power Inductor‌ modules while reducing costs vs. shielded counterparts.
• ‌AEC-Q200 Qualified‌:
  Critical for ‌motorcycle gasoline inductor‌ durability in vibration-heavy environments.
• ‌Low DCR & High Saturation‌:
  ‌Unshielded Inductor‌ series outperform in power supply smoothing circuits.
• ‌Industry Standard Footprints‌:
  Simplifies integration of ‌on chip inductor‌ arrays into compact PCB layouts.

‌Applications‌

• ‌Switching Power Supplies‌:
  Combines ‌Power Inductor‌ efficiency with ‌Unshielded Inductor‌ affordability for industrial converters.
• ‌Motorcycle Electronics‌:
  ‌Motorcycle gasoline inductor‌ units stabilize ignition systems and ECU controls.
• ‌High-Frequency SMPs‌:
  ‌On chip inductor‌ solutions suppress noise in 5G/Wi-Fi RF front-end modules.
• ‌DC/DC Converters‌:
  ‌Power Inductor‌ and ‌Unshielded Inductor‌ families serve telecom base stations and robotics.
