Unshielded Inductor SDR-T

Product Overview

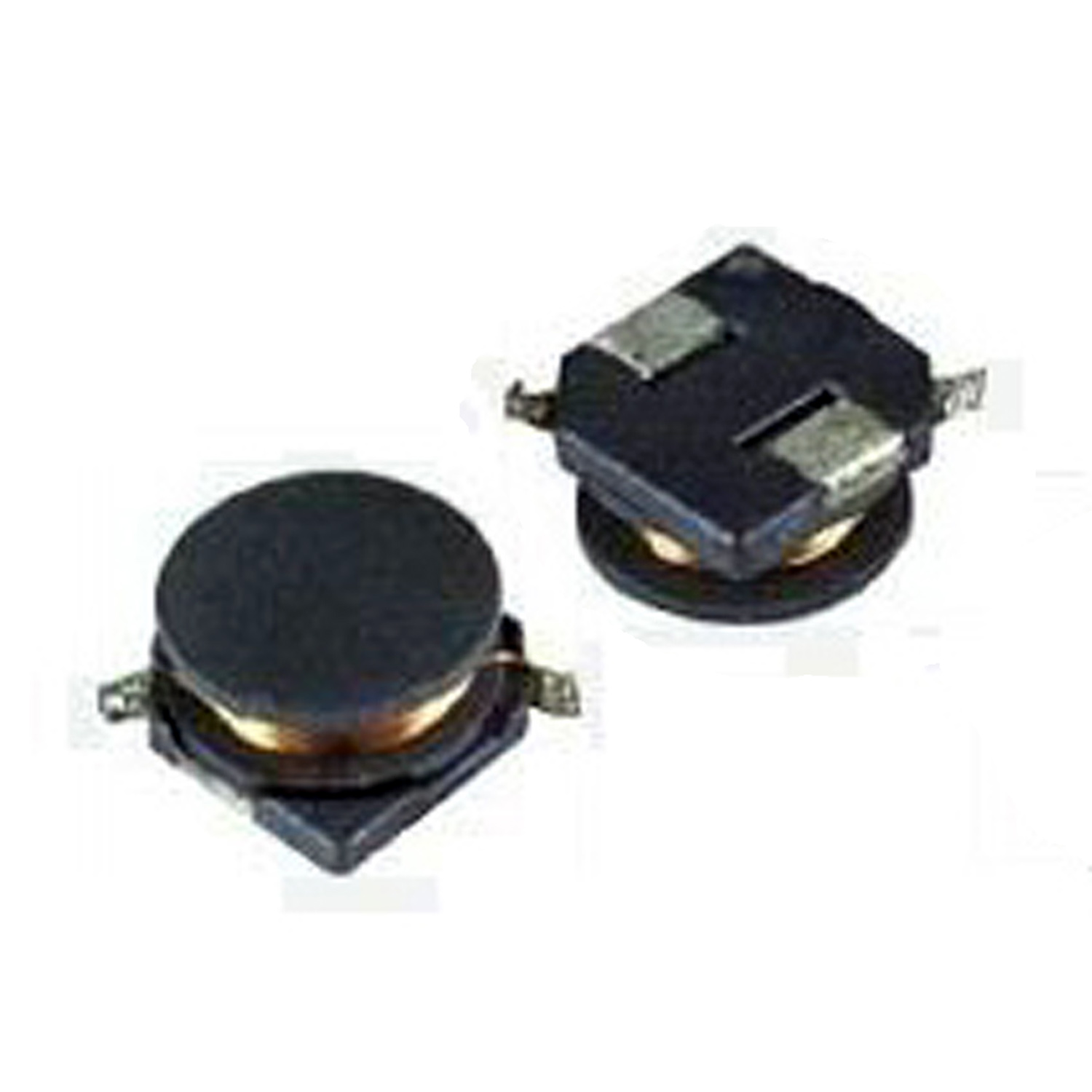

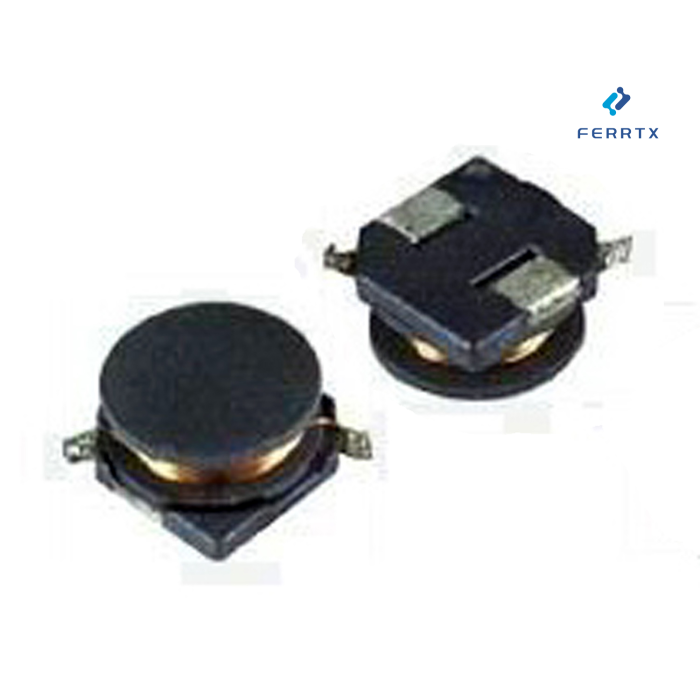

The Unshielded Inductor SDR-T series delivers robust performance in high-frequency power systems. Featuring an open magnetic structure, these inductors achieve ultra-low DCR (down to 0.0098Ω) and current handling up to 7.2A. Ideal as a Power Inductor for space-constrained designs, their unshielded architecture reduces core losses while supporting RF Inductor applications at test frequencies up to 7.96MHz.

Key Features

• Unshielded Design: Eliminates core saturation for stable inductance (1μH–1200μH ±30%)

• High Current Rating: 0.15A to 7.2A (IDC @10% drop)

• Low DCR: 0.0098Ω–6.2Ω (optimized for Power Converter efficiency)

• High-Frequency Operation: Tested at 0.252–7.96MHz for RF Inductor compatibility

• Thermal Resilience: -40°C to +105°C operating range

• EMC Filter Ready: Reduces electromagnetic noise in power buses

Applications

• Power Converters: DC/DC modules in notebooks and automotive systems

• Transformers: Coupled with energy transfer systems in XDSL/PDP TVs

• EMC Filter Networks: Noise suppression for HDDs and communication gear

• Sensor-Integrated Devices: Automotive monitoring and network sensors

• RF Inductor Systems: High-speed data circuits (tested at 7.96MHz)

• Industrial Power Supplies: Topset boxes and computer peripherals

Electrical Specifications

• Inductance Range: 1μH to 1200μH (±10%–30% @100kHz)

• DC Resistance: As low as 0.0098Ω (SDR1305T-2R5□)

• Max Current: 7.2A (SDR1305T-2R5□) to 0.15A (SDR7030T-102□)

• Q Factor: Up to 66 (SDR7030T-102□)

• Solder Tolerance: 260°C/10s (IR reflow/vapor phase)

Packaging & Compliance

• Tape & Reel: J-STD-020D compliant

• Solvent Resistance: Meets MIL-STD-202E

• RoHS: Lead-free compatible

Why Choose SDR-T Series?

These Unshielded Inductors excel where minimal DCR and high-frequency stability matter. As versatile Power Inductors, they enable compact Power Converters while serving as RF Inductors in communication systems. Their EMC Filter compatibility ensures clean power delivery for Transformers and Sensor-driven automotive networks. For noise-resistant designs without shielding constraints, SDR-T offers unmatched value.
