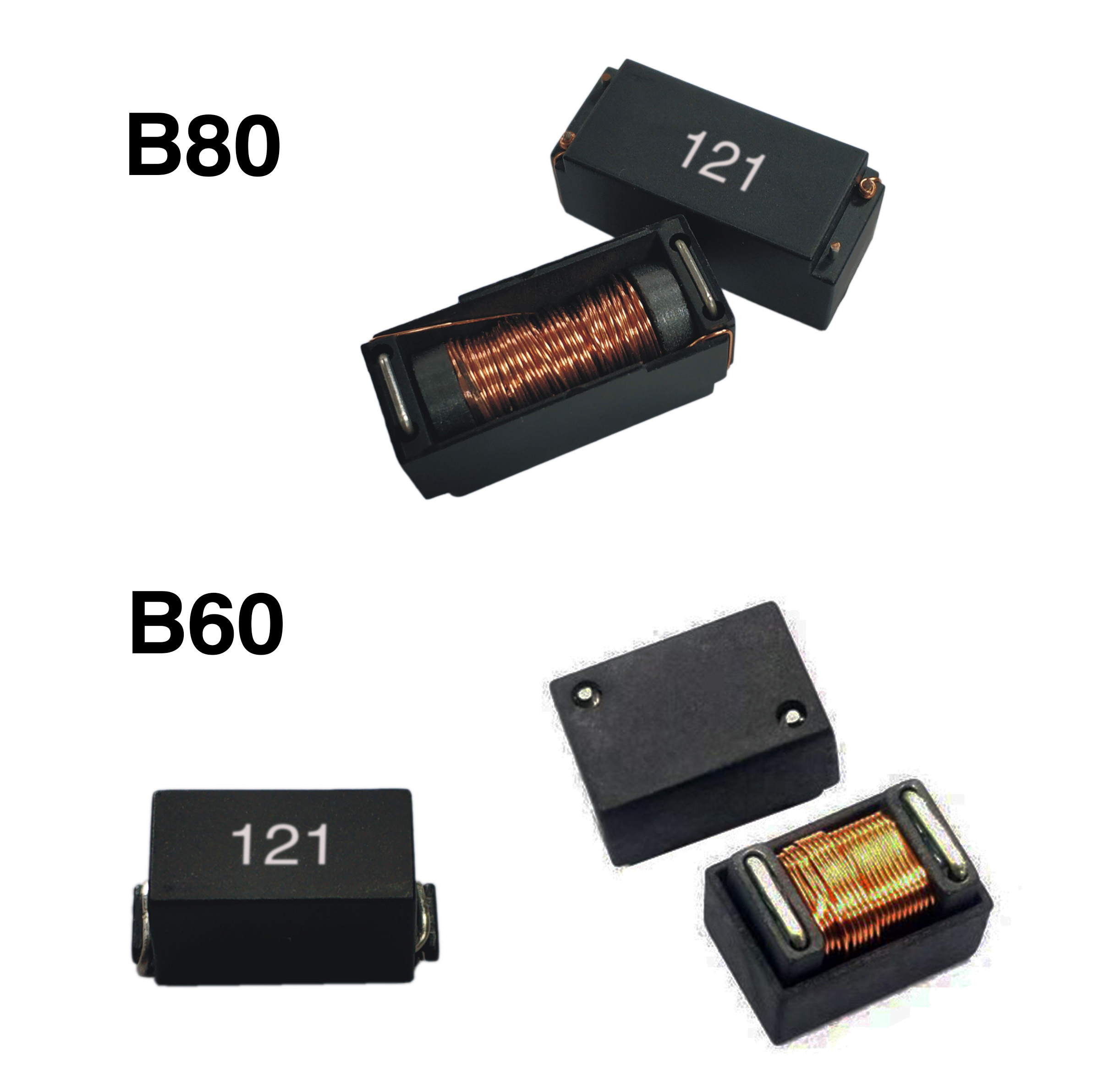

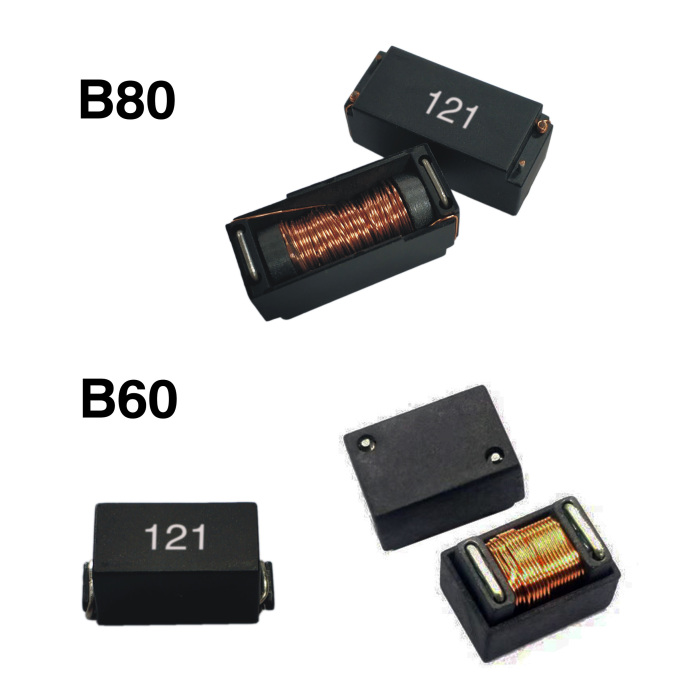

Unshielding Inductor B60 B80

Our B60 Series Unshielded Wirewound Inductors are designed for cost-sensitive power and signal circuits where compact size, stable inductance, and efficient current handling are required. As a classic unshielded SMD Inductor solution, the B60 series provides low DC resistance and fast transient response, making it suitable for a wide range of switching and filtering applications.

Compared with shielded designs, Unshielding Inductors offer lower core loss and improved thermal performance in open PCB layouts, especially where magnetic interference can be managed at the system level.

Key Features of B60 Unshielded Inductors

• Unshielded wirewound construction for fast energy transfer

• Low DC resistance (DCR) to improve overall power efficiency

• Compact SMD package optimized for automated assembly

• Stable inductance under load for reliable circuit operation

• Cost-effective alternative to Shielding Inductor solutions

• RoHS compliant materials and lead-free terminations

Why Choose an Unshielded SMD Inductor?

Unlike a Shielding Inductor, an unshielded wirewound inductor does not use a magnetic shield structure, allowing better heat dissipation and lower component cost. This makes the B60 series ideal for designs where EMI is controlled through layout or external EMI Filter solutions rather than individual component shielding.

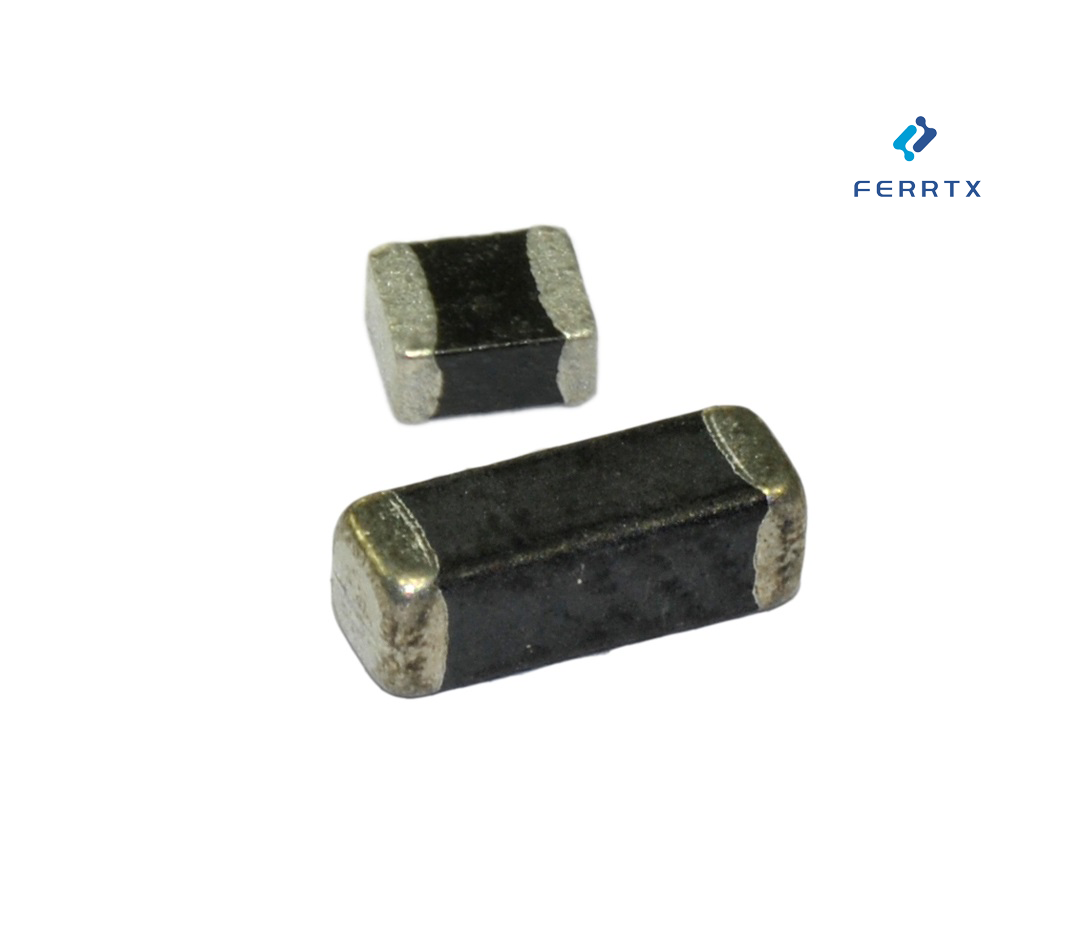

For applications requiring tighter EMI suppression, customers may also consider our SMD Inductor and Shielding Inductor product families.

Typical Applications

• DC-DC converters

• Power management modules

• Consumer electronics

• Industrial control boards

• Communication equipment

• Automotive auxiliary circuits

These inductors are commonly used alongside components such as ferrite bead inductor devices and Power Line Common Mode Choke solutions to form complete noise suppression networks.

Electrical Characteristics Overview

Design Flexibility & Custom Options

We support:

• Inductance value customization

• Current rating optimization

• Package size selection

• Performance matching to existing designs

Our unshielded designs integrate easily with Power Converter systems and can also be paired with Multilayer Chip Inductors or Wire Wound Chip Inductor components in mixed-signal designs.

Why FERRTX Unshielded Inductors?

• Dedicated magnetic component manufacturing

• Consistent electrical performance

• Engineering-level technical support

• Stable long-term supply for OEM & EMS customers

If you are evaluating unshielded SMD inductors for power or signal conditioning applications, the B60 Series offers a proven, cost-efficient solution with flexible customization options.
