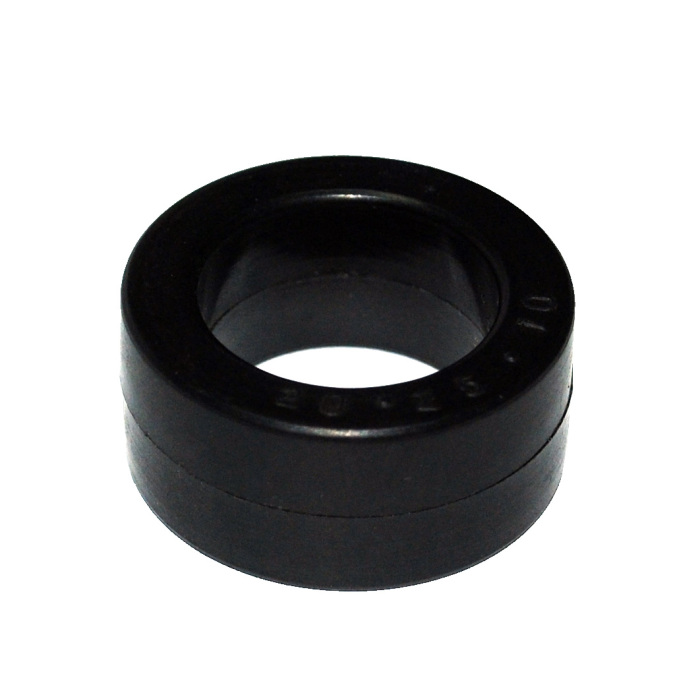

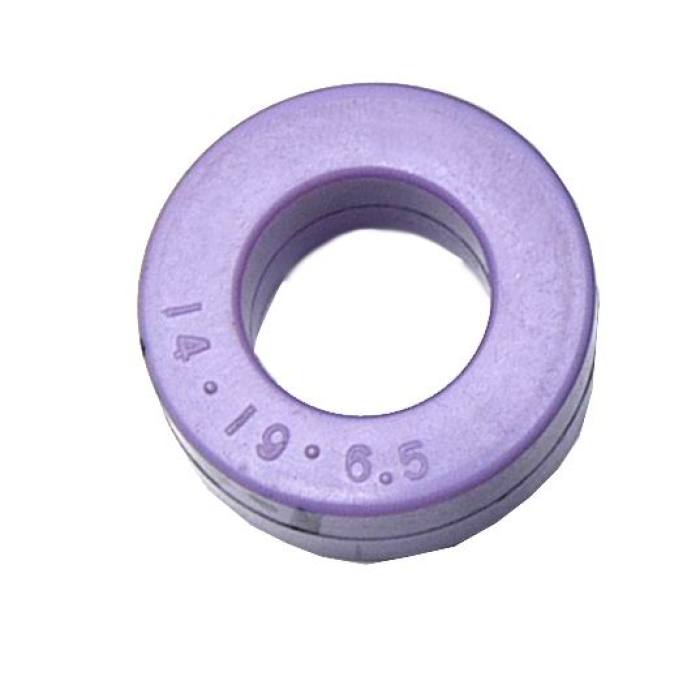

Amorphous Mag-Amp Core‌

FERRTX offers a high-performance Amorphous Magnetic Materials Core designed specifically for precision Mag-Amp (magnetic amplifier) post-regulation in multi-output switching power supplies. Using advanced Amorphous Core Material, these cores deliver exceptional squareness, low losses, and rapid magnetic response—making them a preferred choice for modern server, telecom, and industrial-grade power systems.

Our optimized Amorphous Magnetic Parts enable tighter voltage control, improved efficiency, and simplified circuit architecture compared with traditional silicon-steel or ferrite-based magnetic components.

Core Characteristics & Advantages

High Squareness Ratio for Accurate Regulation

The unique atomic structure of Amorphous Core Material provides a sharp B-H curve transition, ensuring reliable and repeatable magnetic switching behavior—critical for Mag-Amp precision control.

Low Coercive Force

Naturally low coercivity reduces core excitation power and improves regulation response, contributing to stable output voltages even under dynamic load changes.

Excellent Thermal Performance

Low core loss minimizes heat generation, helping SMPS designers maintain tight thermal budgets in compact housings.

Superior Electrical Safety

All cores comply with UL94V-0 flame-retardant standards, ensuring enhanced reliability and safety for high-density power systems.

Consistent Magnetic Behavior

The uniform structure of Amorphous Magnetic Materials Core guarantees consistent saturation characteristics, boosting regulator accuracy and durability over long-term operation.

Benefits for Power Electronics Designers

• Simplifies multi-output SMPS Mag-Amp circuitry

• Reduces component count and overall BOM cost

• Enhances surge protection and improves reliability

• Provides better noise suppression via stable saturation points

• Minimizes voltage drift during fast load transitions

• High safety performance through certified materials

Our Amorphous Magnetic Parts are engineered for demanding high-frequency environments where precision and durability are essential.

Typical Applications

Mag-Amp Regulators in Switching Power Supplies

Used extensively in:

• PC power modules

• Server power units

• Telecom DC-DC converters

• High-efficiency industrial SMPS

Saturable Reactors

Compact, efficient reactors for adapters, chargers, and communication equipment.

Pulse and Oscillator Transformers

Improved magnetic stability supports accurate pulse shaping and gating functions.

Power Electronics for Networking Systems

Routers, base stations, hubs, and data-center communication equipment.

Available Product Options

Our Amorphous Magnetic Materials Core series includes:

• Toroidal Mag-Amp Cores

• Tape-wound amorphous reactor cores

• High-squareness magnetic parts for fast switching

• Custom shapes and coating colors

• Assembly-ready Amorphous Magnetic Parts for OEM integration

We also provide full custom engineering using Amorphous Core Material to match customer-specific saturation levels, inductance targets, and thermal requirements.

Why FERRTX

FERRTX is committed to developing high-precision cores built from the most advanced Amorphous Core Material. With rigorous quality control and deep magnetics expertise, we support global manufacturers in building smaller, more stable, and more efficient power systems.
