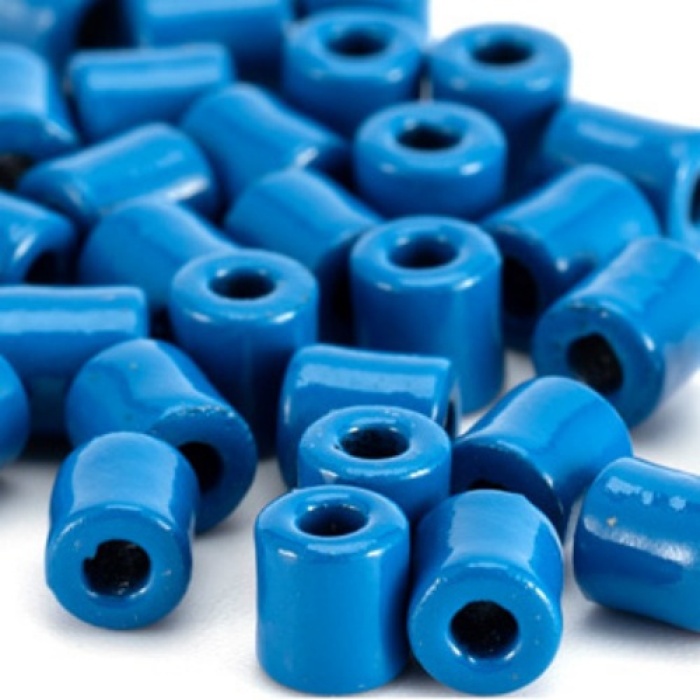

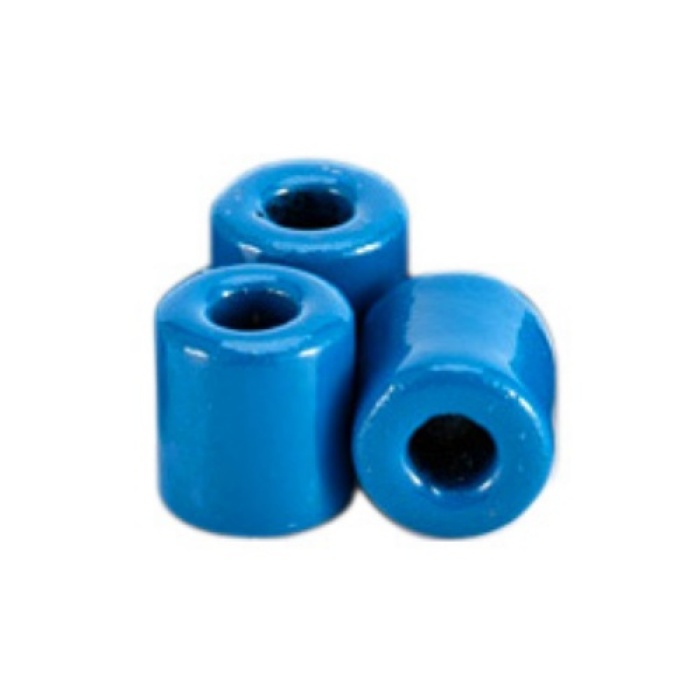

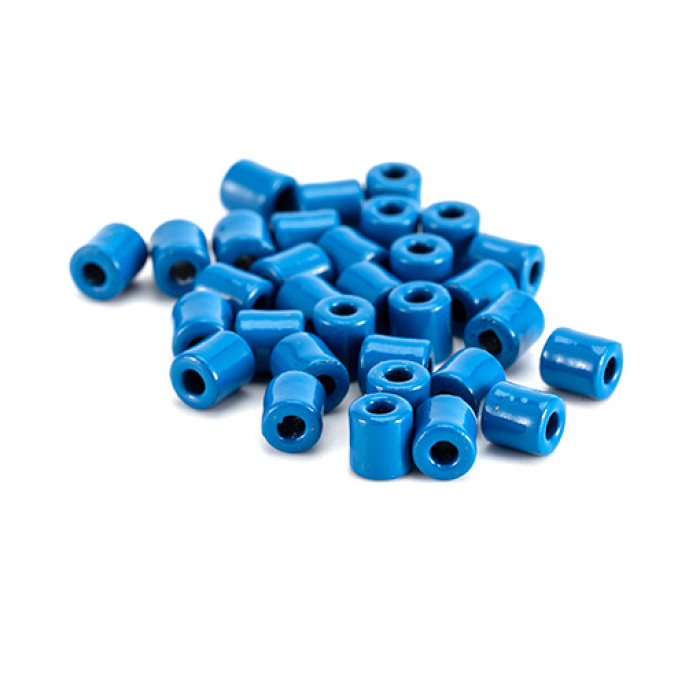

EMI Amorphous Beads

HIgh Quality EMI Amorphous Beads

The ‌EMI Amorphous Beads‌ represent a premium solution among ‌Magnetic Cores‌ for electromagnetic interference suppression. These innovative ‌Amorphous Core‌ components utilize advanced material technology to deliver superior performance in ‌RF Microwave Components‌ systems while maintaining excellent high-frequency characteristics.

Key Features

• ‌Advanced Amorphous Alloy‌: The ‌EMI Amorphous Beads‌ construction provides superior high-frequency performance compared to traditional ferrite materials
• ‌Effective EMI Suppression‌: Ideal for integration with ‌EMC Filter - EMI/RFI‌ solutions
• ‌High Temperature Stability‌: Maintains performance across wide temperature ranges
• ‌Compact Design‌: Space-saving form factor suitable for dense PCB layouts
• ‌Reliable Performance‌: Consistent operation in demanding environments

Applications

• ‌Power Electronics‌: Essential component in high-efficiency ‌Transformers‌
• ‌RF Circuitry‌: Suitable for ‌RF Inductor‌ applications requiring EMI suppression
• ‌Filter Systems‌: Core component in ‌EMC Filter - EMI/RFI‌ implementations
• ‌ Sensor Protection‌: Provides EMI shielding for sensitive ‌Sensor‌ interfaces

Technical Specifications

The ‌EMI Amorphous Beads‌ deliver:

• Exceptional high-frequency impedance characteristics
• Low core loss at elevated frequencies
• High saturation flux density
• Excellent thermal stability
• Consistent performance across operational temperature ranges

Performance Advantages

When incorporated into ‌rf microwave Components‌ systems, the ‌EMI Amorphous Beads‌ demonstrate:

• Superior EMI suppression compared to conventional ‌Magnetic Cores‌
• Reduced power loss in high-frequency applications
• Reliable high-temperature operation
• Excellent high-frequency response for an ‌Amorphous Core‌ solution

Implementation Guidelines

For optimal ‌EMI Amorphous Beads‌ performance:

1. Evaluate frequency requirements for ‌EMC Filter - EMI/RFI‌ applications
2. Consider thermal management for ‌Power Inductor‌ implementations
3. Verify compatibility with system-level ‌RF Inductor‌ specifications
4. Maintain proper clearance for optimal EMI suppression

Quality Assurance

Each ‌EMI Amorphous Beads‌ undergoes comprehensive testing including:

• Impedance frequency response verification
• Thermal cycling tests
• Mechanical durability assessments
• EMI suppression effectiveness evaluation

Ferrtx is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our EMI Amorphous Beads products.
