Amorphous & Nanocrystalline Cores for High-Performance Common Mode Chokes

FERRTX offers advanced Amorphous and Nanocrystalline Cores specifically engineered for high-efficiency Power Line Common Mode Choke applications. Thanks to their ultra-low coercivity, high permeability, and excellent frequency response, these magnetic materials deliver superior suppression of common-mode noise in compact designs.

Compared with traditional ferrites, our cores provide higher impedance and improved thermal stability—making them ideal for modern SMPS, EV chargers, renewable energy systems, and compact EMC modules.

This page focuses on the newly separated product category for Common Mode Choke Cores, offering a clearer and more targeted structure than the previous combined Amorphous Core listings.

Amorphous vs Nanocrystalline Cores — What’s the Difference?

Choosing the right material is critical for EMI and power electronics design. Understanding amorphous vs nanocrystalline cores helps engineers optimize performance.

amorphous cores

• Wide frequency response

• Good temperature performance

• Lower cost compared with nanocrystalline

• Ideal for mid-range EMI suppression

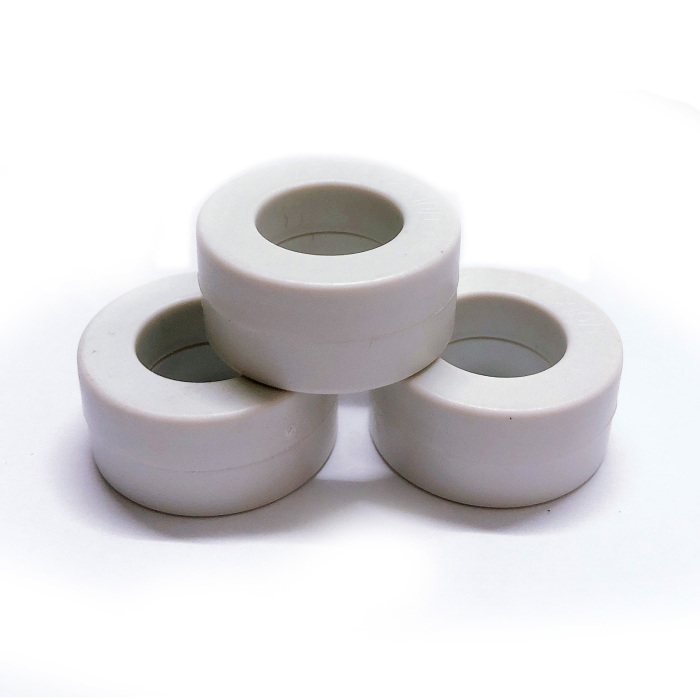

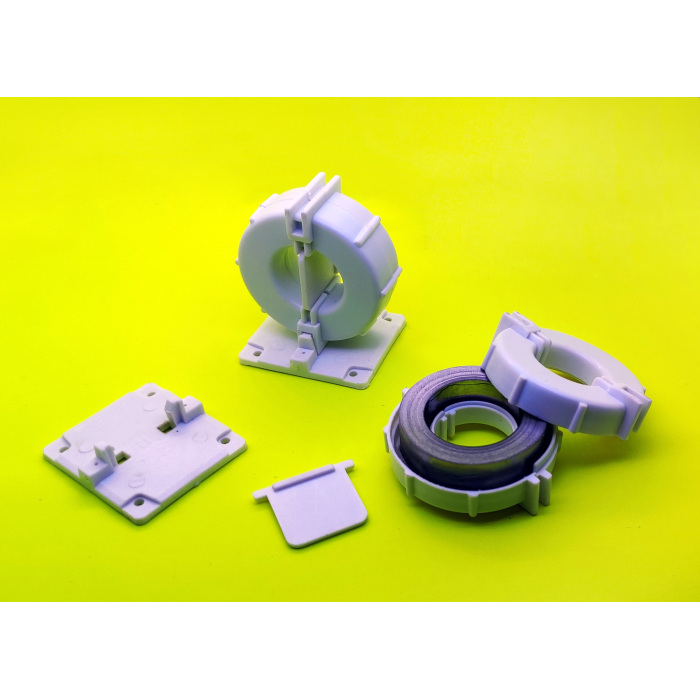

Nanocrystalline Cores

• Much higher permeability

• Higher attenuation in compact dimensions

• Excellent stability under high current

• Preferred for premium Power Line Common Mode Choke designs

FERRTX provides both materials to cover the full spectrum of EMI filtering needs.

Key Features & Benefits

• High Permeability Materials
  Excellent suppression of common-mode interference, even in compact winding windows.

• Lower Core Losses
  Nanocrystalline Cores offer exceptionally low losses under high-frequency operation.

• Stable Performance at High Temperatures
  Supports applications up to 120–150°C depending on material grade.

• Reduced Size & Weight
  Higher permeability allows smaller chokes with equivalent filtering capability.

• Optimized for High-Reliability Designs
  Suitable for industrial, automotive, and renewable power systems.

Typical Applications

• Power Line Common Mode Choke
  (SMPS, adapters, LED drivers, telecom power, industrial control)

• EV onboard chargers

• PV inverter and wind power converters

• UPS and energy storage systems

• High-current DC/DC converters

• Home appliances and smart meters

Why FERRTX Amorphous & Nanocrystalline Cores?

✔ Material Expertise

FERRTX has extensive know-how in Amorphous Core, nanocrystalline alloy processing, and advanced annealing techniques.

✔ Application-Driven Design

Formulated specifically for common-mode filtering, not generic amorphous cores—differentiating this page from the legacy website.

✔ Precision Manufacturing

Tight tolerance control and uniform magnetic performance.

✔ Multiple Sizes & Customization

OD, ID, and height can be customized for customer-specific choke dimensions.

✔ Global Quality Standards

ROHS compliant materials, stable batch consistency, and long-term reliability.

Technical Advantages of Amorphous and Nanocrystalline Cores

• μi range: 8,000 – 120,000

• Low magnetostriction → reduced noise

• High saturation flux density (up to 1.2T for nanocrystalline)

• High impedance across radiation-sensitive frequency ranges

• Suitable for both horizontal and vertical coil structures

(If you provide your data sheet, I can format the exact parameter table.)

Related Products & Categories

To support a complete EMC and magnetic solution, FERRTX also provides:

• Magnetic Cores (broad selection for power & signal applications)

• Amorphous Core (cut cores, C-cores, toroidal cores)

• Power Line Common Mode Choke components for EMI compliance

These categories help search engines understand the relevance of the page while providing internal links for user navigation.

Conclusion

FERRTX Amorphous and Nanocrystalline Cores offer unmatched performance for high-efficiency common mode choke designs. Whether you are evaluating amorphous vs nanocrystalline cores or selecting materials for advanced EMI suppression, our high-permeability cores provide the reliability, stability, and compactness required for next-generation power electronics.

Customization is available for all sizes, magnetic characteristics, and coil assembly requirements.
