Brand: FERRITES
| Selling Units: | Piece/Pieces |
|---|---|
| Download: |
|

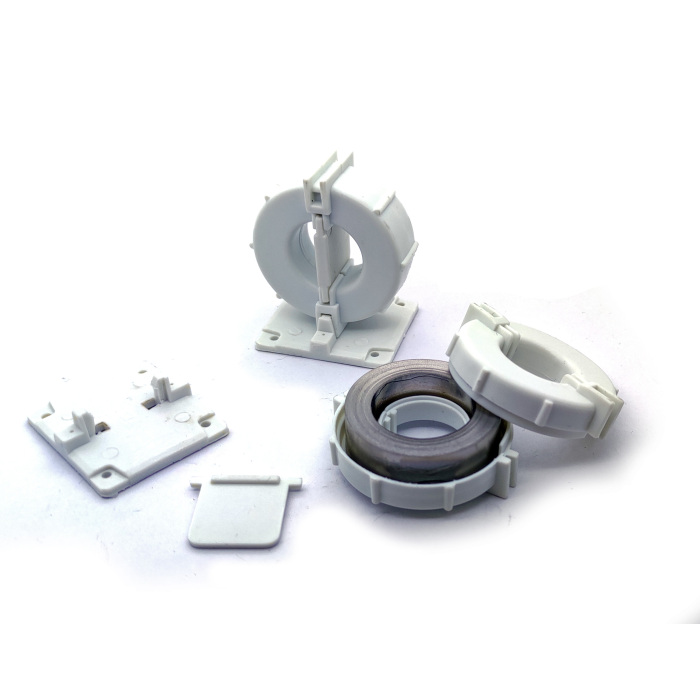

The N80 series common mode choke Magnetic Cores are engineered using Amorphous Magnetic Materials and nanocrystalline alloy, achieving ultra-high permeability (80,000) for superior EMI/EMC performance. As electronic devices dominate daily life, SHINHOM’s Amorphous Core Steel-enhanced designs meet rigorous international standards (EN500081/EN500082), suppressing high-frequency noise and voltage spikes from spark discharge. These Magnetic Cores excel in both periodic (switching power supplies) and non-periodic (telecom data lines) noise environments, covering applications from UPS units to frequency converters.
By leveraging Amorphous Core technology with Amorphous Core Steel precision, FERRITES delivers higher insertion attenuation across wide frequency ranges while reducing winding turns and core loss.
Performance
・High permeability (Amorphous Core advantage)
・Low core loss (Amorphous Magnetic Materials efficiency)
・High impedance across wide frequency (Amorphous Core Steel stability)
Design
・Ultra-low profile (1–5mm height)
・Reduced DC resistance (Amorphous Core conductivity)
EMI/EMC Solutions
・Telecommunications interface Transformers (Amorphous Core Steel-stabilized performance)
・Ground fault protectors (Amorphous Magnetic Materials surge resilience)
Precision Power Systems
・High-accuracy pulse transformers (Magnetic Cores noise suppression)
・Current sensors (Amorphous Core linearity)
Ferrites is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our Common Mode Choke Core products.
