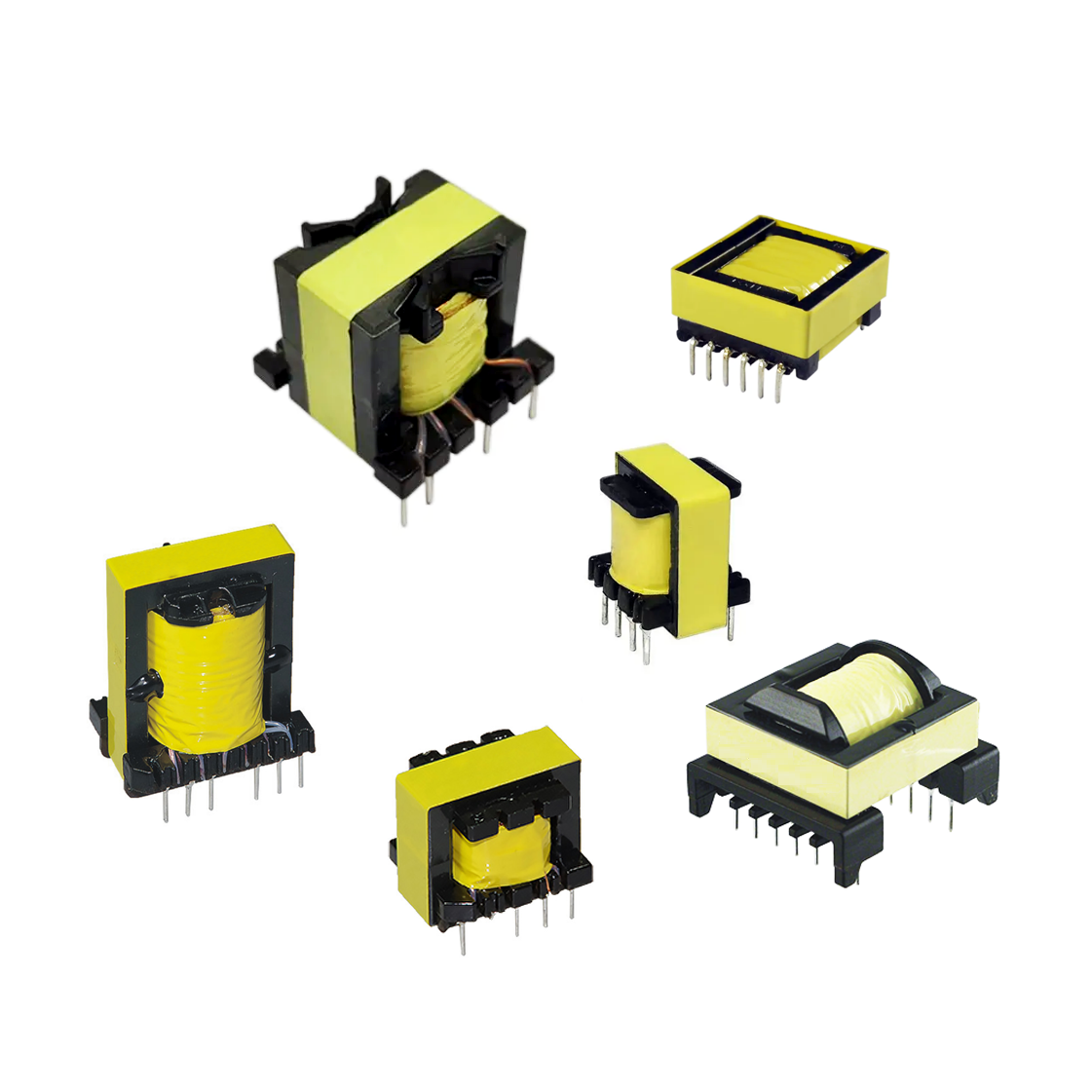

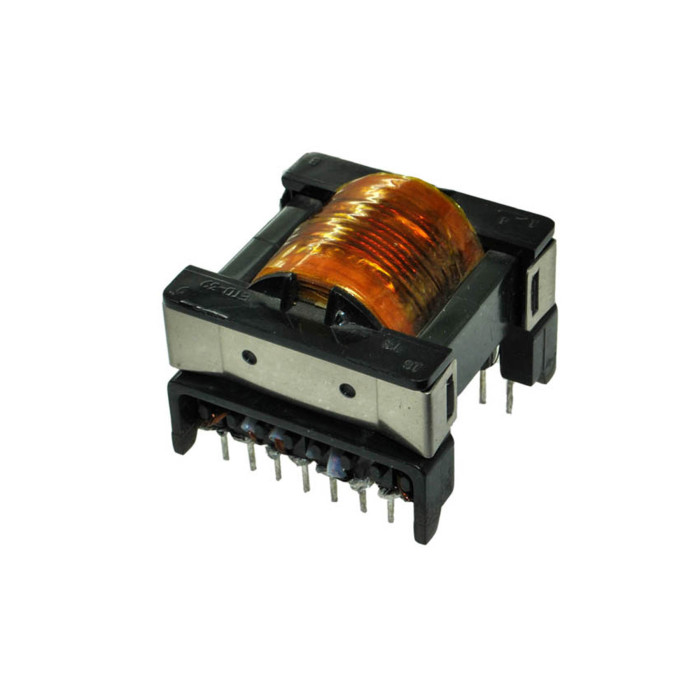

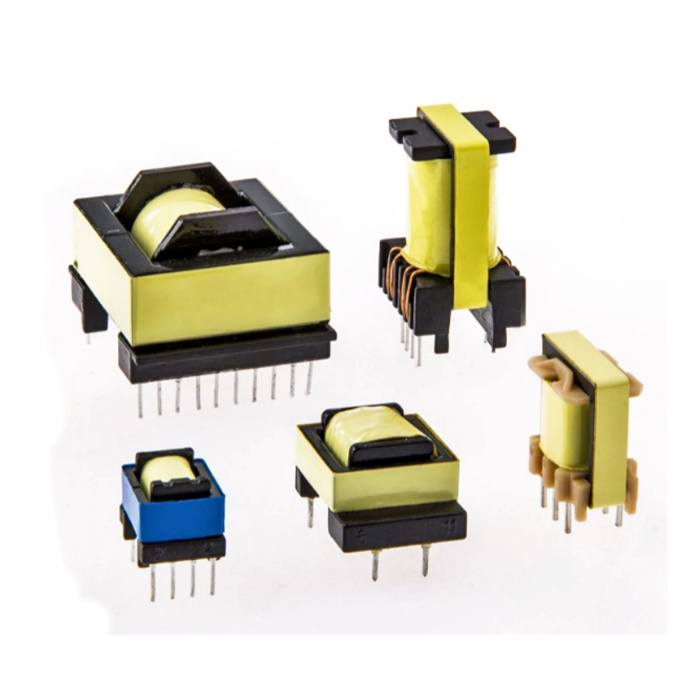

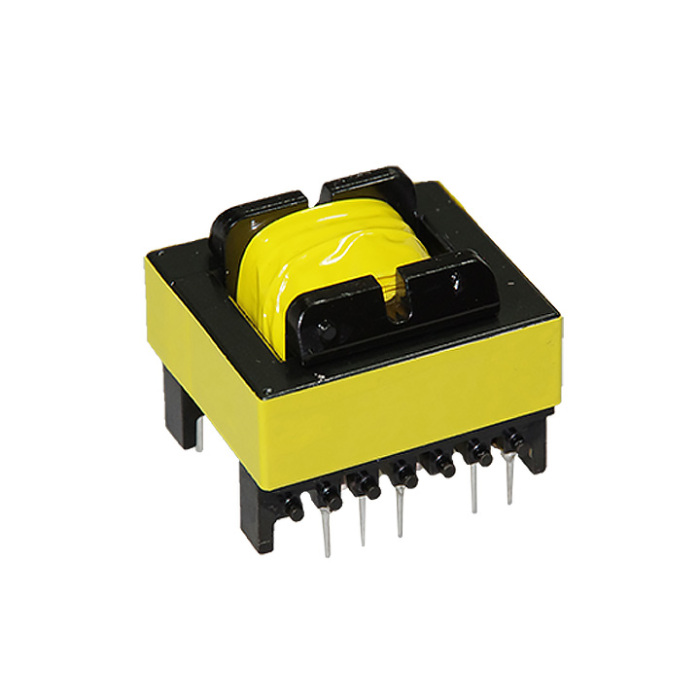

Switch Mode Transformer

FERRTX switch mode Transformers are designed for modern switch mode power supplies (SMPS) where high efficiency, compact size, and reliable isolation are critical.
They operate at high switching frequencies, enabling reduced Transformer size while maintaining stable electrical performance.

As a professional manufacturer of switch mode power supply transformers, Ferrtx supports both standard designs and fully customized solutions for demanding power electronics applications.

Understanding Switch Mode Power Supply Transformers

A switch mode transformer is a key magnetic component used in SMPS circuits to transfer energy efficiently while providing electrical isolation and voltage conversion.
Unlike low-frequency transformers, SMPS transformers operate at tens or hundreds of kilohertz, significantly improving power density and system efficiency.

Ferrtx switch mode transformers are developed within our High Frequency Transformer product range, optimized for high-speed switching environments.

Key Design Advantages

Our switch mode transformers offer the following advantages for SMPS designs:

• Optimized magnetic structure for high switching frequency

• Low core loss and copper loss

• High dielectric isolation strength

• Compact footprint for space-constrained layouts

• Stable performance over wide temperature ranges

Careful material selection, including high-quality Ferrite Core, ensures consistent magnetic behavior under continuous switching conditions.

Customized Switch Mode Transformers

FERRTX specializes in customized switch mode transformers tailored to specific power supply architectures.
Customization options include:

• Input and output voltage configurations

• Power level and frequency range

• Winding structure and turns ratio

• Insulation system and safety standards

• Pin layout and mechanical dimensions

This flexibility allows seamless integration into AC-DC and DC-DC power systems.

Applications in Power Conversion Systems

Ferrtx switch mode transformers are widely used in:

• AC-DC power adapters and chargers

• DC-DC converters and power modules

• Industrial power supplies

• Telecom and networking equipment

• Consumer electronics and embedded systems

They form a critical part of modern Power Converter designs where efficiency and reliability are essential.

Why Choose FERRTX Switch Mode Transformers

With strong experience in high-frequency magnetics, Ferrtx provides switch mode Transformer Solutions that balance performance, manufacturability, and cost.
From prototype development to mass production, our engineering team supports your SMPS design with responsive customization and technical expertise.
