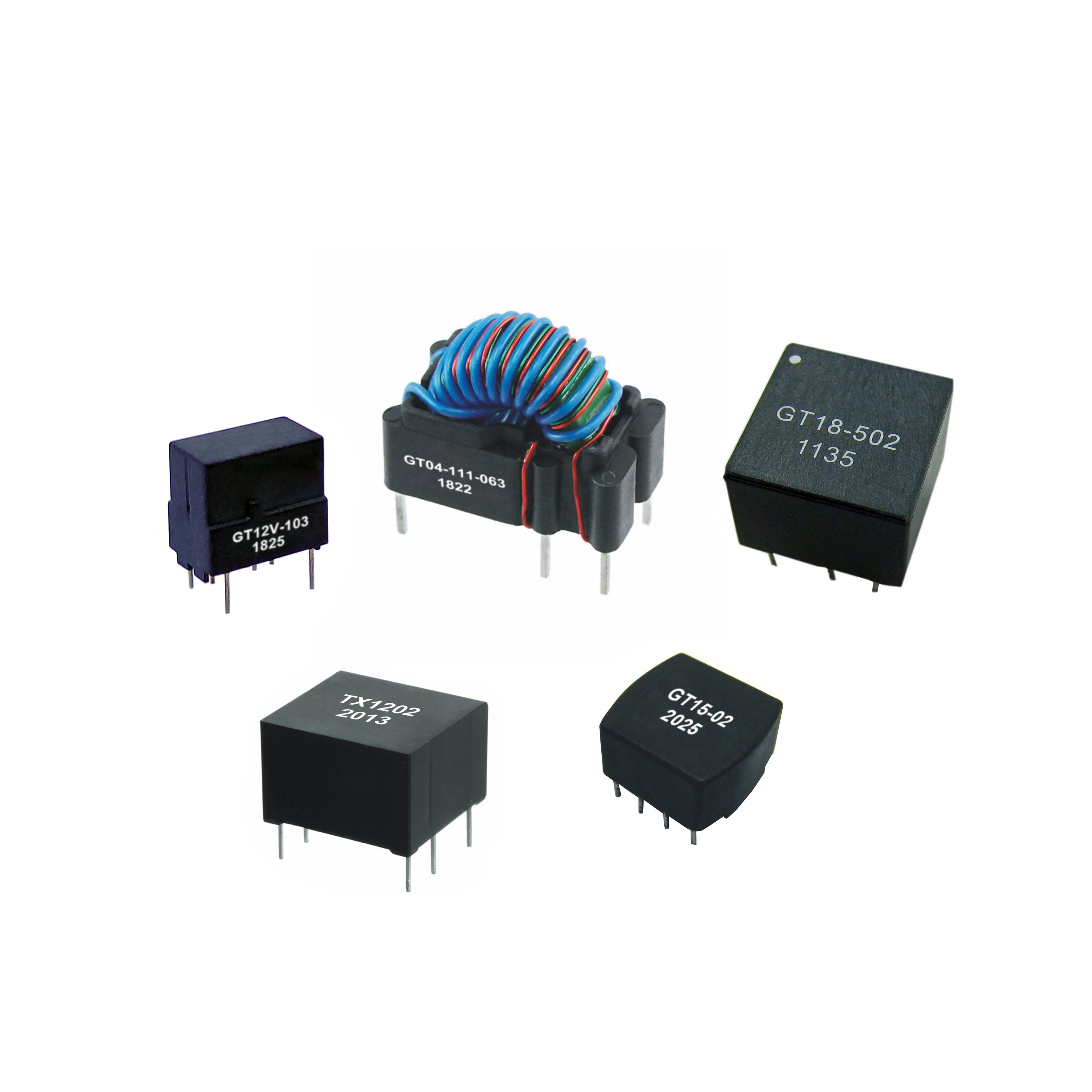

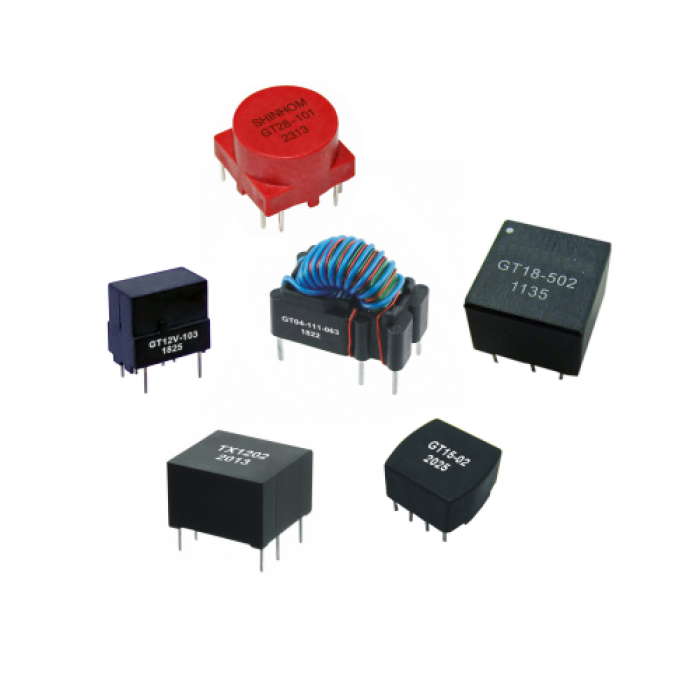

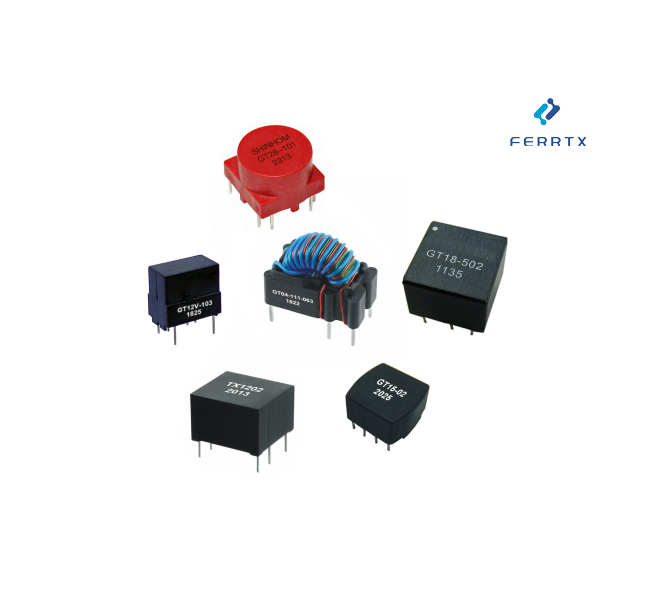

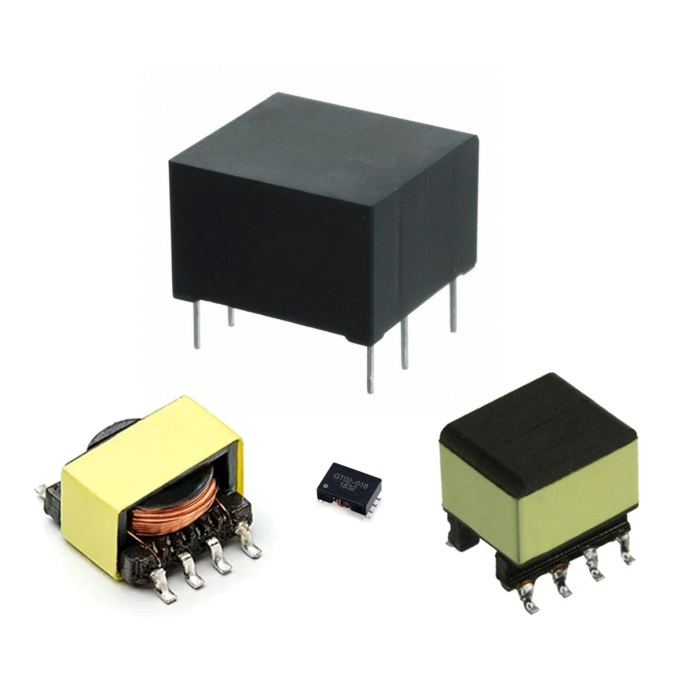

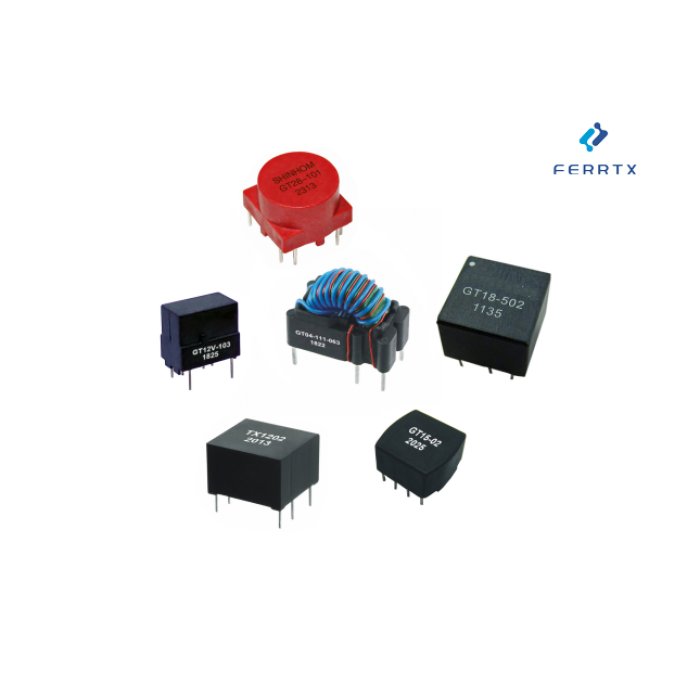

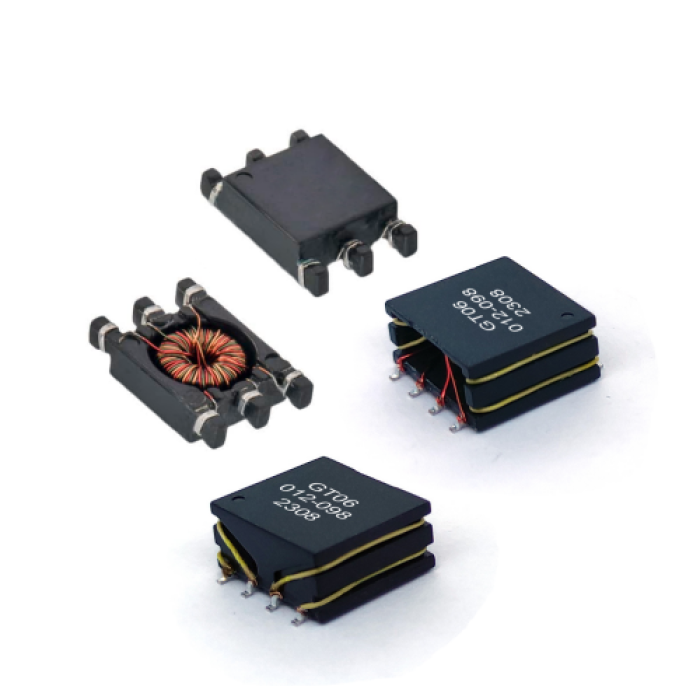

Gate Drive Transformer PCB

Optimized Product Detail Page: Gate Drive Transformers

Gate Drive Transformers are essential components in power electronics, providing isolated control signals to MOSFETs, IGBTs, and SiC/GaN devices. Engineered for minimal propagation delay (<10ns) and high dv/dt immunity (>50kV/μs), these specialized Transformers enable safe, efficient switching in high-voltage circuits. Unlike generic High Frequency Transformers, our Gate Drive Transformers feature reinforced insulation (up to 5kVrms) and ultra-low interwinding capacitance (<5pF) to prevent shoot-through in motor drives, solar inverters, and industrial SMPS.

Key Specifications

• Isolation Voltage: 3.75kVrms (1 min) to 5kVrms (enhanced models).

• Frequency Range: 10kHz to 1MHz (supports SiC/GaN topologies).

• Temperature Rating: -40°C to +150°C (AEC-Q200 possible).

• Pulse Handling: dv/dt >50kV/μs withstand capability.

• Compact Footprint: SMD packages (e.g., EE6.3/EP7) with creepage >8mm.

• Turns Ratio: 1:1, 1:1.5, or custom (tolerance ±2%).

Applications
Ideal for synchronizing with Power Inductors and RF Microwave Components in:

• Motor Drives: EV traction inverters, industrial servo controllers.

• Renewable Energy: Solar microinverters, battery management systems (BMS).

• Industrial Automation: Uninterruptible power supplies (UPS), welding equipment.

• Consumer Electronics: High-density chargers, LED drivers.

• Sensor-integrated systems: Isolated feedback loops in motor control.

Design Advantages

1. Zero Cross-Talk Operation
   Triple-insulated wire windings and Faraday shielding eliminate capacitive coupling noise. Pair with EMC Filter - EMI/RFI modules for full-system EMC compliance.

2. High-Speed Switching Support
   Low leakage inductance (<5μH) and high saturation current (>1A) minimize signal distortion at MHz frequencies. Compatible with RF Inductor-based snubber circuits.

3. Thermal Resilience
   High Curie temperature ferrite cores maintain permeability at 150°C—critical when co-located with Power Inductors in confined spaces.

4. Drop-in Replaceability
   Industry-standard footprints (e.g., Wurth/Coilcraft pinouts) accelerate prototyping. Integrates seamlessly with High Frequency Transformers in multi-stage converters.
