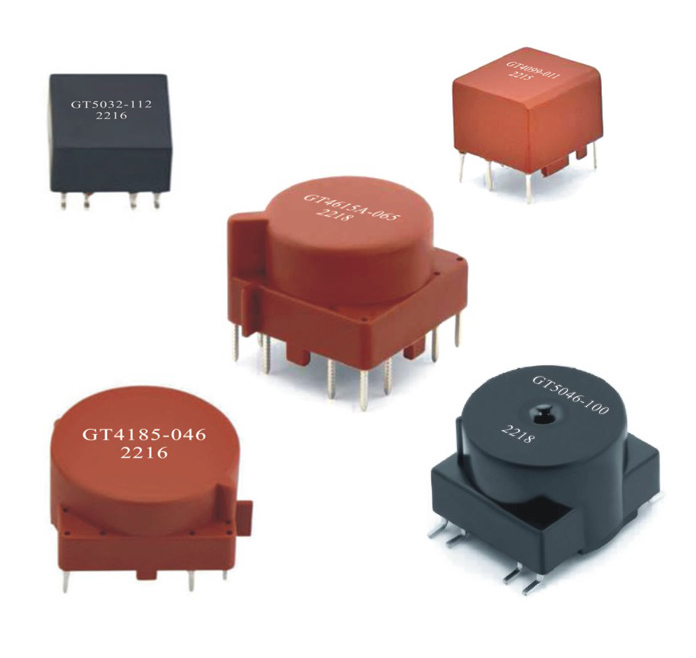

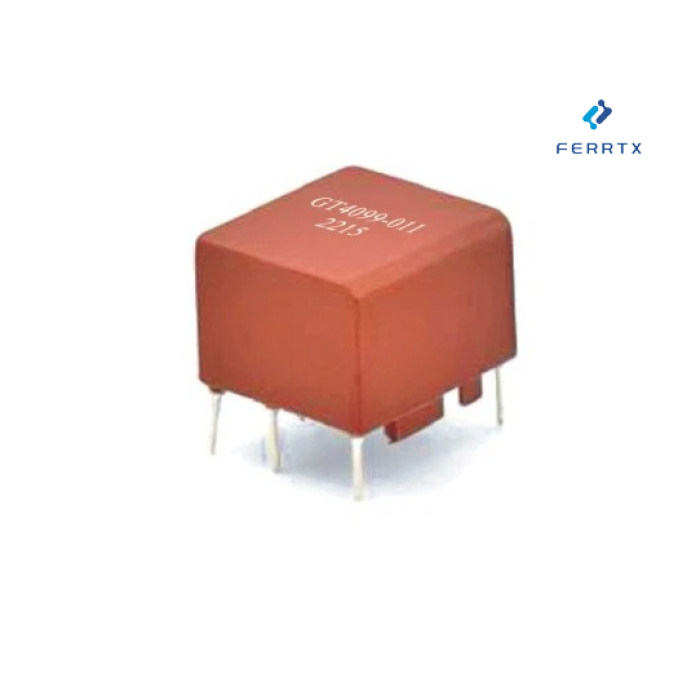

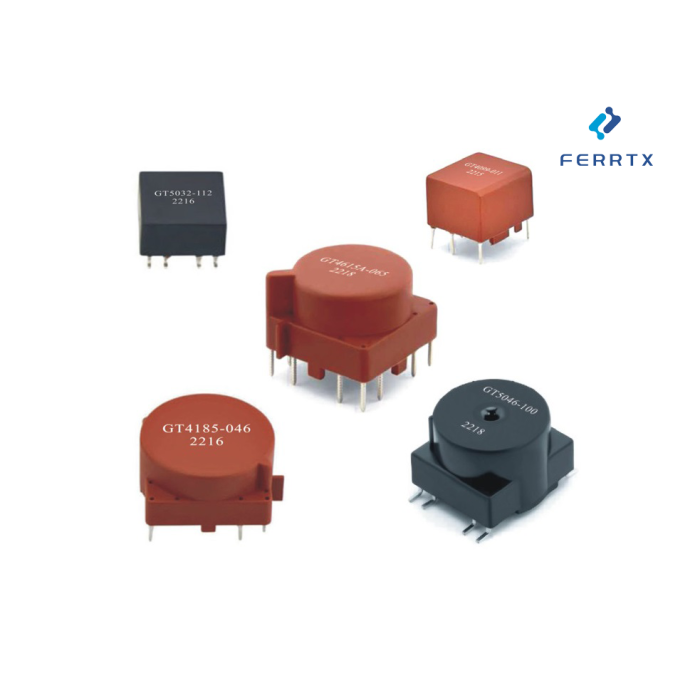

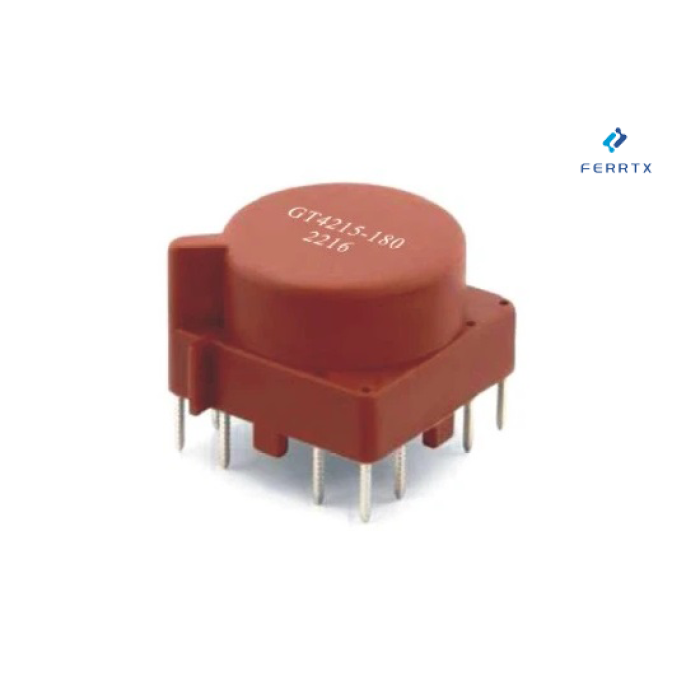

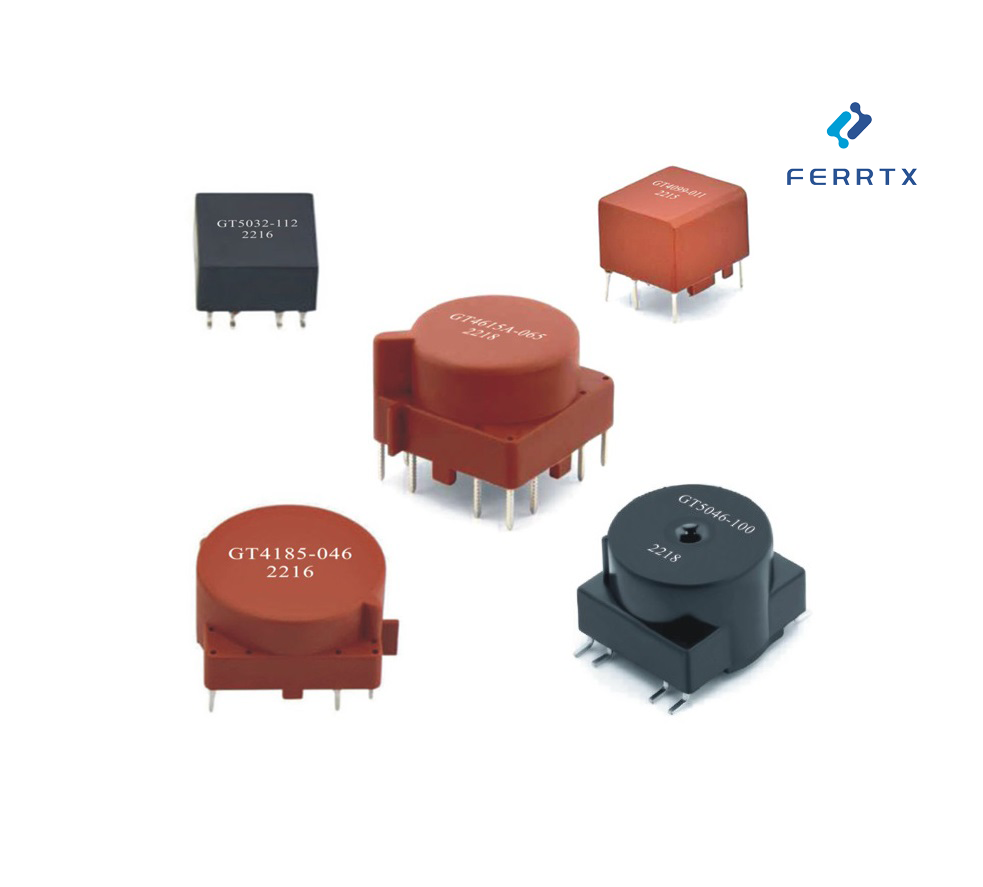

Gate Drive Transformer IGBT

Optimized Product Detail Page: Gate Drive Transformer IGBT

Introduction
Gate Drive Transformers are critical components in variable-frequency drives (VFDs), enabling safe galvanic isolation between IGBT inverter stages and low-voltage control circuits. Engineered with nanocrystalline toroidal cores, our IGBT transformers deliver high switching power density in ultra-compact packages while minimizing PCB footprint. Featuring reinforced insulation (>5kVrms) and ultra-low coupling capacitance (<3pF), these Transformers ensure reliable switching at high dv/dt environments and support corona extinction voltages exceeding industry standards.

Key Specifications

• Isolation Voltage: 500-1200V working range (reinforced per IEC 61800-5-1)

• Coupling Capacitance: <3pF (reduces EMI propagation)

• Corona Extinction Voltage: >2× operating voltage

• Temperature Range: -40℃ to +105℃ (operating/storage)

• Mounting Options: THT/SMT packages for high-density layouts

• Customization: Adjustable turns ratio & voltage-time product

Applications
Integrate with Power Inductors and EMC Filter - EMI/RFI modules in:

• Industrial VFDs: Elevator motors, pump controllers, CNC machinery

• Renewable Energy: Wind turbine converters, solar farm inverters

• Traction Systems: EV drivetrains, railway propulsion

• High-Power SMPS: UPS, welding equipment with isolated Sensor feedback

• RF Power Systems: GaN amplifiers paired with RF Microwave Components

Design Advantages

1. Space-Optimized Power Transfer
   Nanocrystalline cores enable 50% smaller footprints than ferrite solutions. Ideal for co-location with High Frequency Transformers in multi-stage converters.

2. Noise-Immune Switching
   Triple-shielded winding technology eliminates common-mode interference. Combine with EMC Filter - EMI/RFI filters for full VFD compliance.

3. High dv/dt Immunity
   <10ns propagation delay prevents IGBT shoot-through at >50kV/μs transient edges. Enhanced by RF Inductor snubber networks.

4. Custom Integration Flexibility
   Tailor voltage-time product (10-100V·μs) and turns ratio (1:1 to 1:2) for unique topologies. Supports Customized gate drive transformer designs.

   Why Choose Our IGBT Transformers?
   For engineers developing medium/high-power VFDs, our Gate Drive Transformers solve critical challenges:

   • Enable high isolation in 1200V intermediate circuits

   • Extend Sensor lifespan by blocking ground loops

   • Reduce BOM costs 30% vs discrete solutions

   • Exceed IEC 61800-5-1 safety with reinforced insulation
