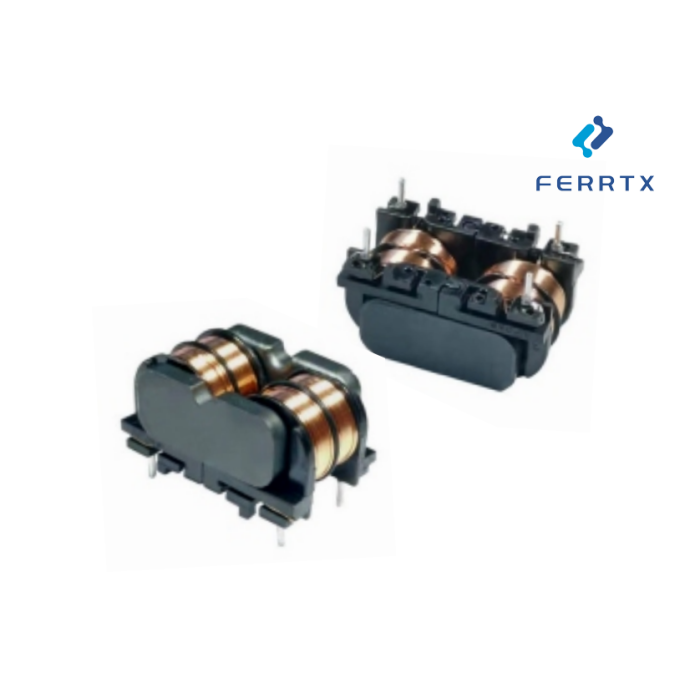

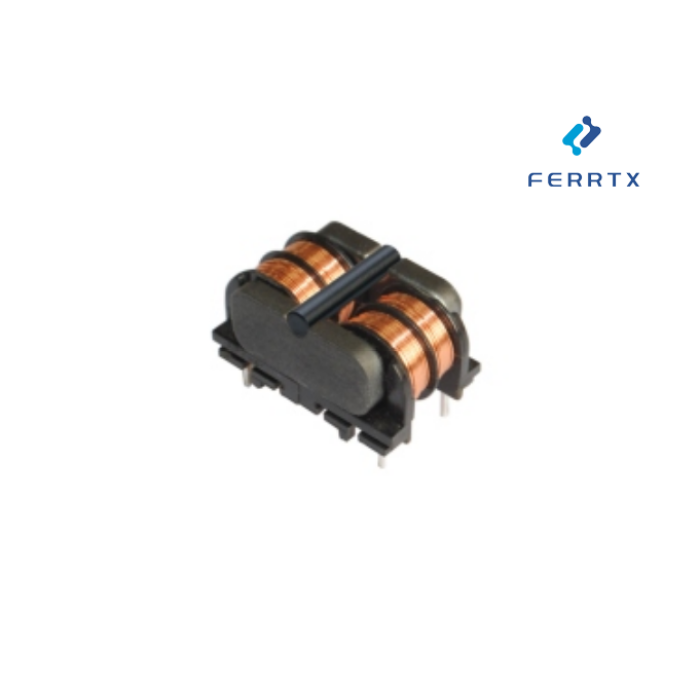

LFU Series Common Mode Chokes: High-Performance EMI Suppression for Power Electronics

Get Latest Price

Contact Now

Features:

Payment Type: L/C,T/T
Min. Order: 1000 Piece/Pieces
Transportation: Ocean,Land,Air,Express
Port: Xi'an,Shanghai

Products

Send Inquiry

Error

* Please fill in the information

* Please fill in your e-mail

* Please fill in the content



Products



Description

Product Attributes

Model No.: LFU

Brand: FERRTX

Species: Esd Suppressors

Supply Type: Original Manufacturer

Place Of Origin: China

Rated Voltage-AC: 250v

Rated Voltage-DC: Not Applicable

Installation Method: Through Hole

Fuse Type: Not Applicable

Number Of Circuits: 2

Tolerance: ±30%

Specification: Not Applicable

Inductance: 3.3mH, 6.8mH, 15mH...

Rated Current (IDC): 3.0A, 2.8A, 2.1A, ...

Test Frequency: 10kHz /1kHz

Operating Temperature: -50°C to +110°C

Isolation Voltage: 1000VAC/2500VAC

Packaging & Delivery

Selling Units:	Piece/Pieces
Picture Example:
Download:

Supply Ability & Additional Information

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 2~8weeks

Certificate: RoHS/ISO/UL/CE/IATF 16949/CNAS

Port: Xi'an,Shanghai

Payment Type: L/C,T/T

Product Description

FERRTX's LFU series common mode inductors are engineered to effectively eliminate electromagnetic interference (EMI) and ensure compliance with global EMC standards like FCC and CISPR. These versatile noise suppression components combine high isolation voltage with an advanced magnetic design to suppress both common-mode (CM) and differential-mode (DM) noise in a single compact package.

Technical Advantages & Features

Dual-Mode Noise Suppression: Effectively mitigates both CM and DM noise, ensuring clean power delivery and regulatory compliance.
High Isolation Voltage: Withstands up to 2500VAC between windings (LFUR17 series), ensuring reliability and safety in high-noise environments.
High Current Ratings: Support applications from 0.3A to 3.0A across the series, suitable for a wide range of power levels.
Low Resistance & Temperature Rise: Optimized windings ensure high efficiency and minimal energy loss.
Robust Construction: Excellent mechanical strength and wave soldering compatibility for reliable PCB mounting.
Wide Operating Temperature Range: Stable performance from -50°C to +110°C (LFU26/28).

Applications

Our common mode chokes are ideal for:

Switch-Mode Power Supplies (SMPS): Especially in 100W to 500W range for consumer and industrial electronics.
LED Lighting Drivers: Enhances reliability and eliminates flicker in LED power supplies and ballasts.
EMI/EMC Filters: Serves as a core component in filter designs to meet stringent electromagnetic compatibility requirements.

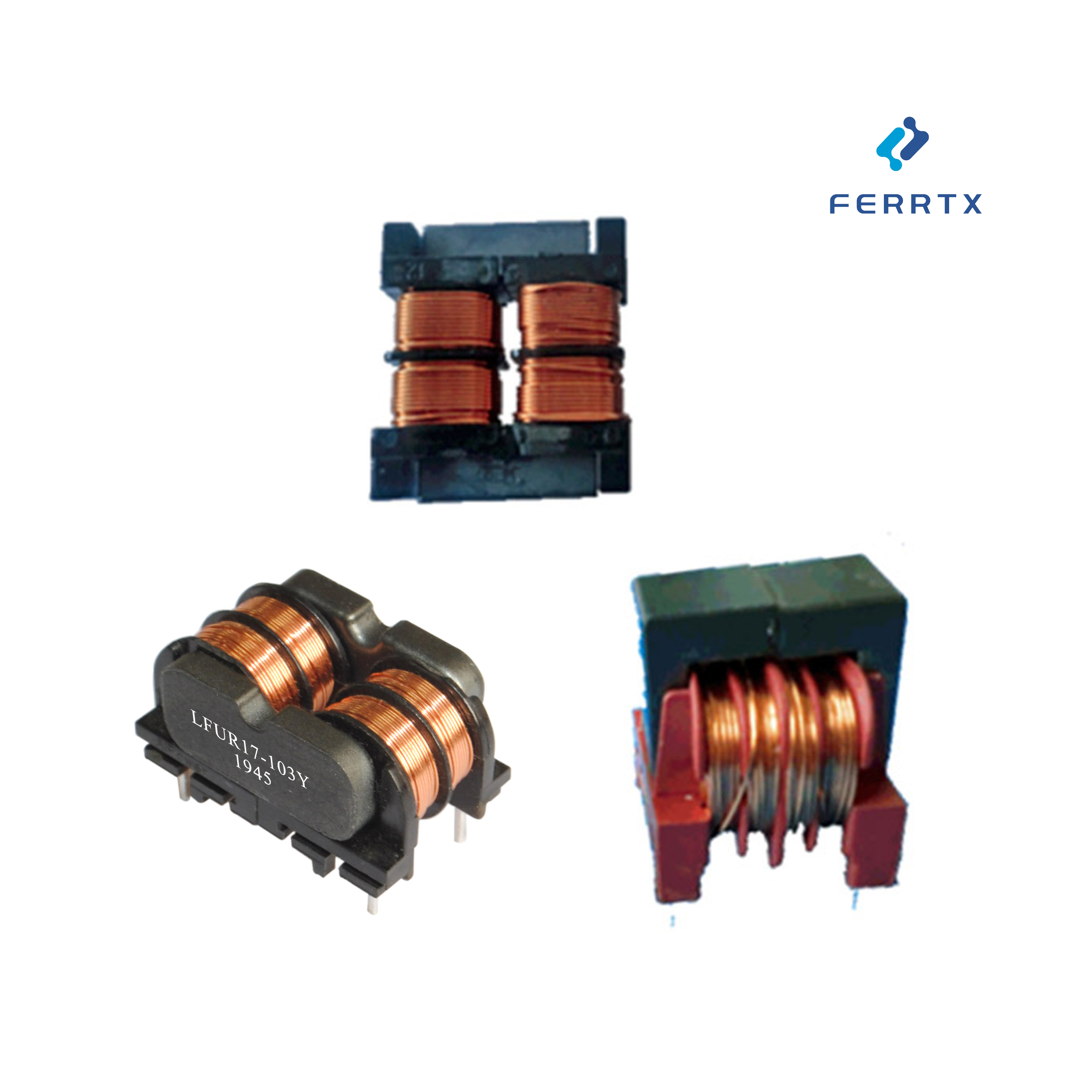

Series Selection Guide

Product Series	Inductance Range (mH)	Rated Current (IDC Max)	Key Application Focus
LFU26	3.3 - 30	1.0A - 3.0A	Higher Power (100-500W)
LFU28	3.3 - 30	0.3A - 0.8A	Lower Power (100-250W)
LFUR17	3.3 - 100	0.45A - 2.5A	High Inductance, High Isolation

For detailed electrical specifications including DCR, test conditions, and exact dimensions, please refer to the product datasheets or contact our team.

Why Choose Ferrtx?

FERRTX is dedicated to providing magnetic components of the highest quality and reliability. Our LFU series common mode chokes are designed to meet the demanding requirements of modern power electronics, ensuring your products perform flawlessly in any environment.Ready to eliminate EMI in your design? Contact our experts today to select the right choke for your application or to request a sample.
