Brand: FERRTX
| Selling Units: | Piece/Pieces |
|---|---|
| Download: |
|

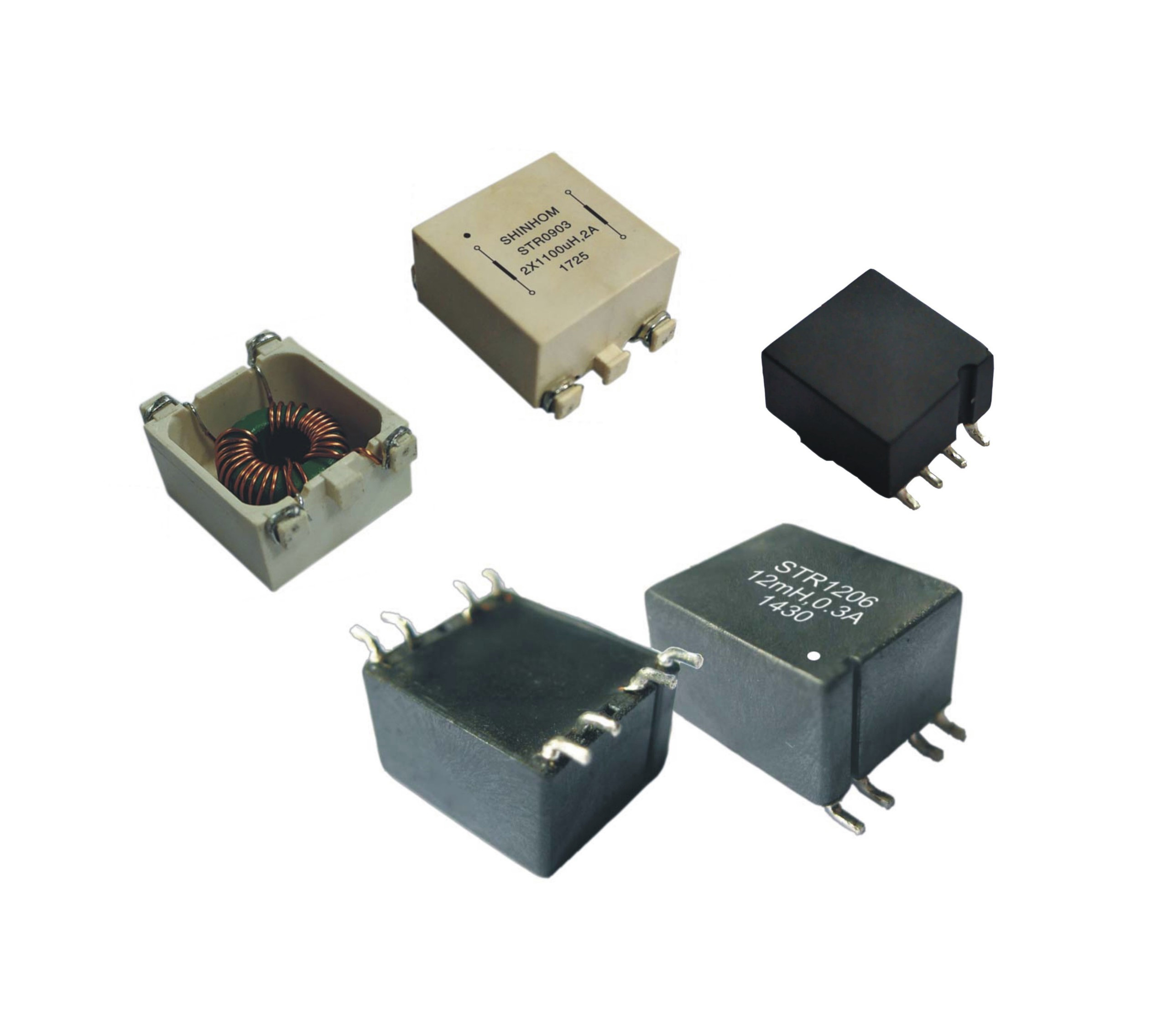

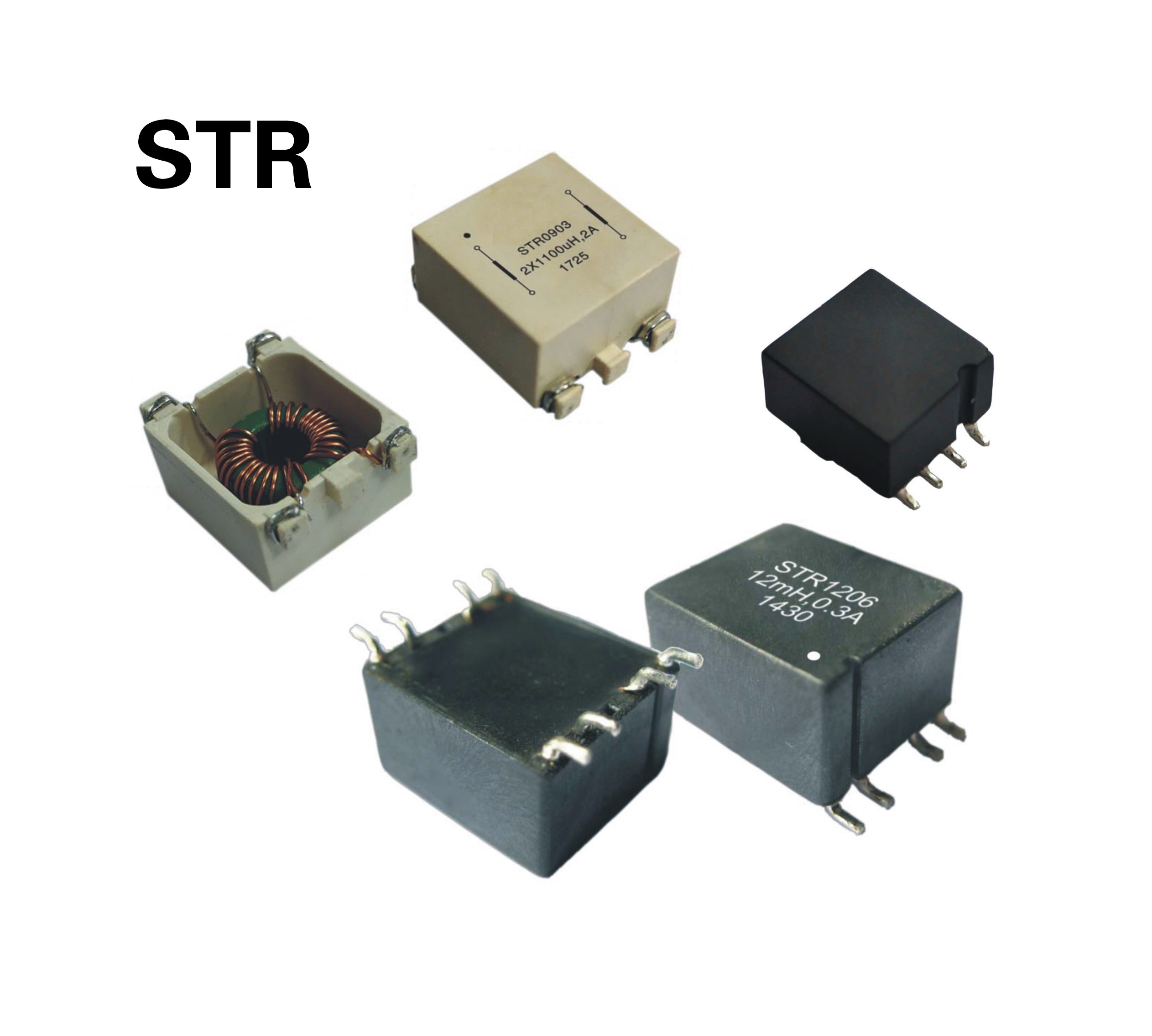

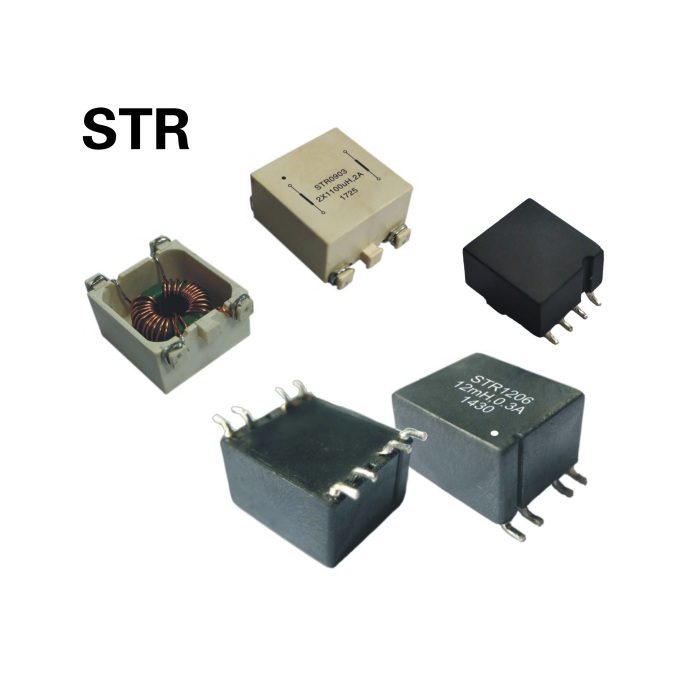

The Power Line Common Mode Choke STR series delivers best-in-class EMI suppression for modern electronics. Engineered with precision common mode choke polarity configuration, these SMD-based components integrate seamlessly into EMI Filter designs requiring:
・Wire-wound architecture for optimal Common Mode Choke polarity alignment
・Emi Filter-grade impedance for automotive/wireless charging systems
・Power Line Common Mode Choke-specific noise radiation prevention
Core Attributes
・Low-profile Power Line Common Mode Choke SMD housing
・Polarity-optimized common mode choke polarity winding structure
・Emi Filter-compatible solderability (J-STD-002 compliant)
Performance
・DCR-optimized Power Line Common Mode Choke design
・Emi Filter-enhanced mechanical strength (IEC 60068-2 tested)
Industrial
・LCD TV Emi Filter circuits with common mode choke polarity calibration
・Power Line Common Mode Choke-equipped HDD power trains
Automotive
・Wireless charging Emi Filter modules (polarity-synchronized)
・common mode choke polarity-regulated automotive ECUs
Series in this family
| Product Series | L(µH) | DCR(mΩ) | IDC(A) |
| STR0602 | 10-300 | 25-70 | 1.5-2.5 |
| STR0603 | 150-1000 | 150-820 | 0.5-1.0 |
| STR0903 | 1100-22000 | 65-1500 | 0.3-2.0 |
| STR1206 | 1100-22000 | 65-1500 | 0.3-2.0 |
| STR804 | - | 100-130 | 2.3-2.5 |
