Description

Product Attributes

Brand: FERRITES

Packaging & Delivery

Selling Units:	Piece/Pieces
Download:

Product Description

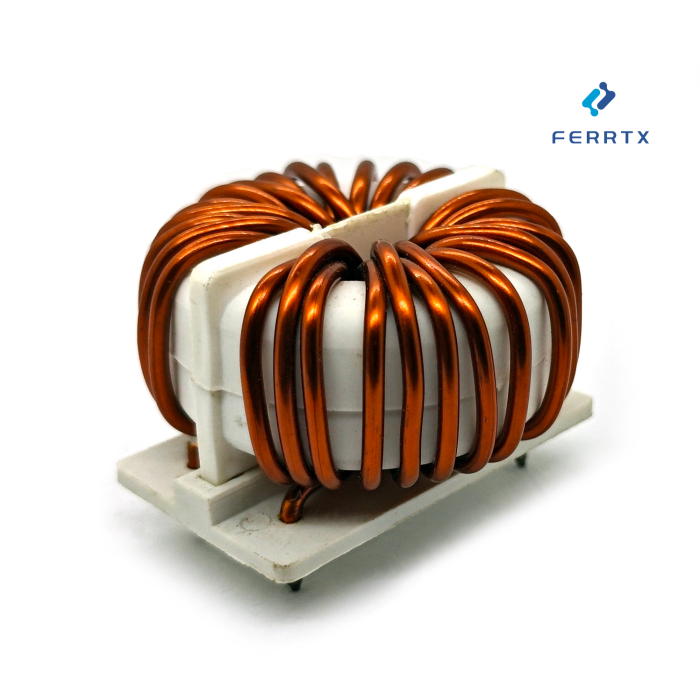

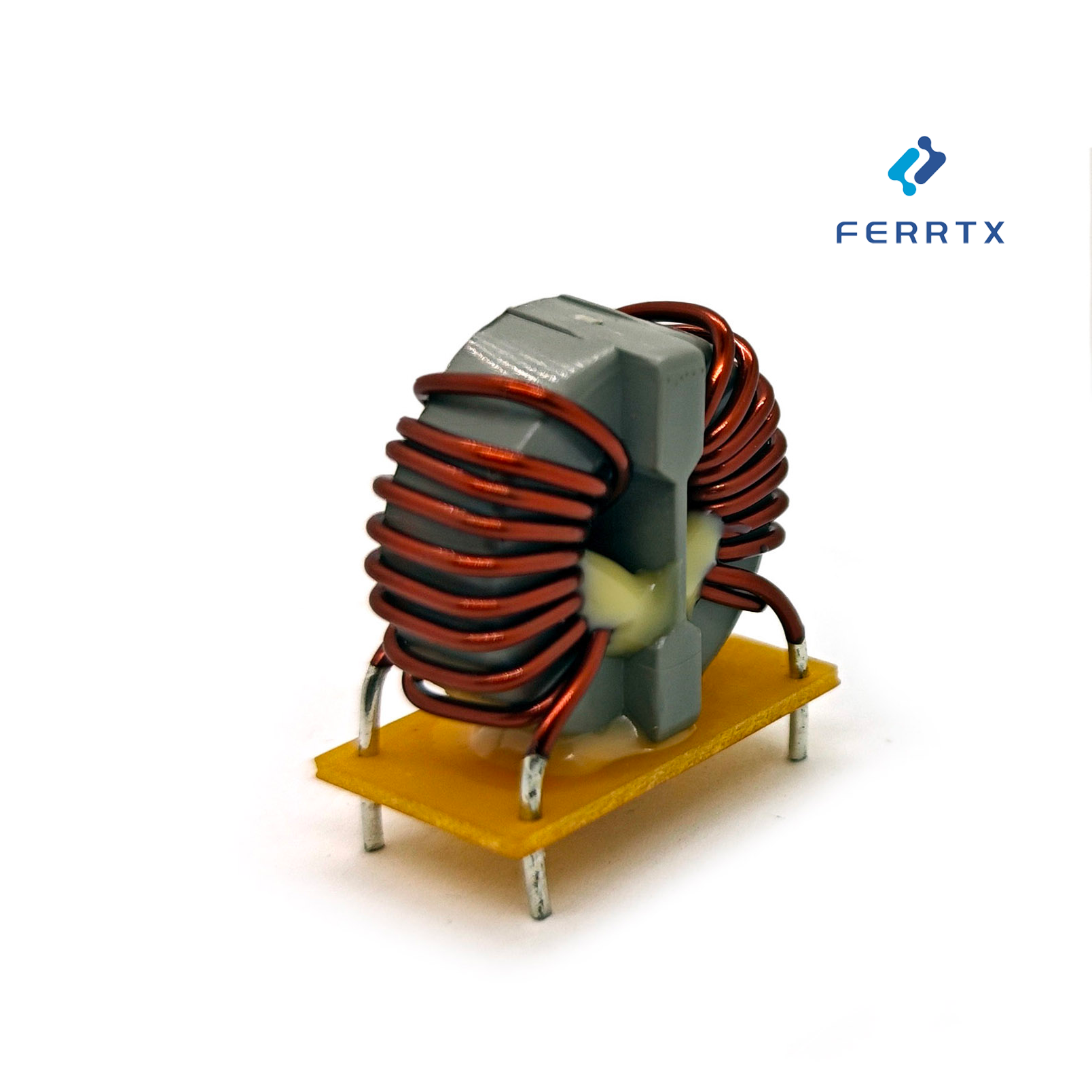

Common Mode Power Line Choke

TRF Series toroidal ‌EMI Filter‌-certified common mode chokes deliver the highest impedance across broad frequency ranges.

These ‌dc power common mode choke‌-ready components are ideal for high DC current applications, including switch-mode power supplies and ‌Power Line Common Mode Choke‌ systems.

Common mode chokes effectively filter in-phase signals on supply/return conductors. For differential-mode filtering (out-of-phase signals), our ‌DC Power Common Mode Choke‌-compatible inductors provide complementary ‌Emi Filter‌ solutions.

Specifications

・120 mH inductance (‌Emi Filter‌-grade performance)
・18A RMS (‌DC Power Common Mode Choke‌-certified)
・1.1250 kVrms winding isolation
・‌Power Line Common Mode Choke‌-standard footprint
・3.2 mm creepage/clearance
・UL1446 Class B insulation (E83628)

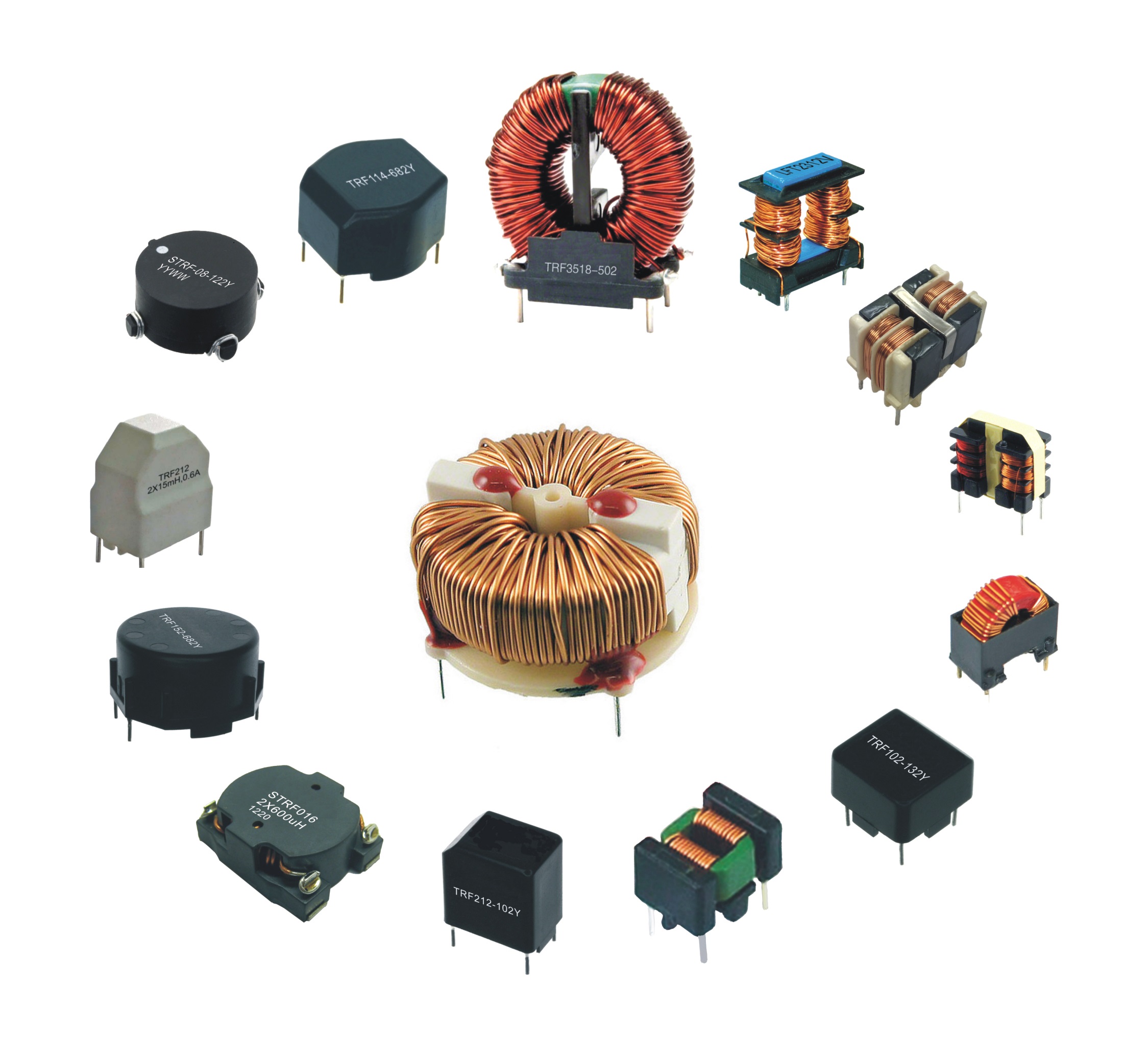

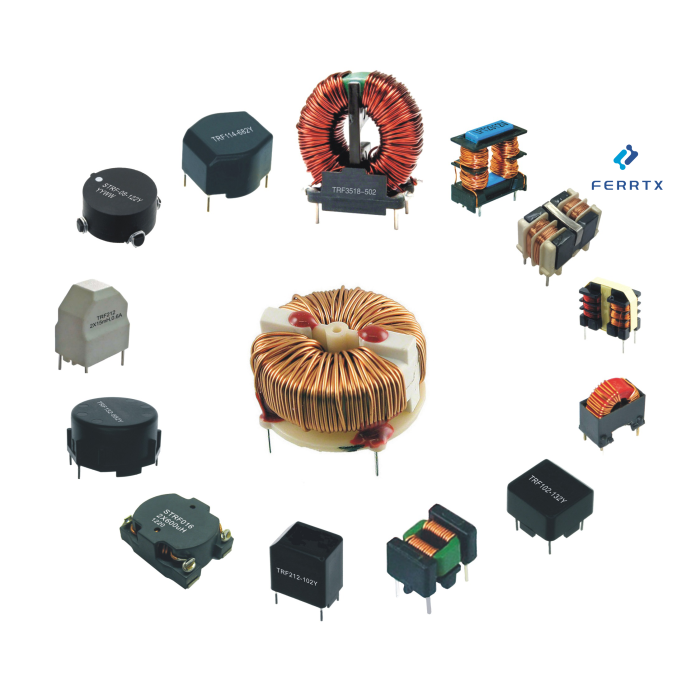

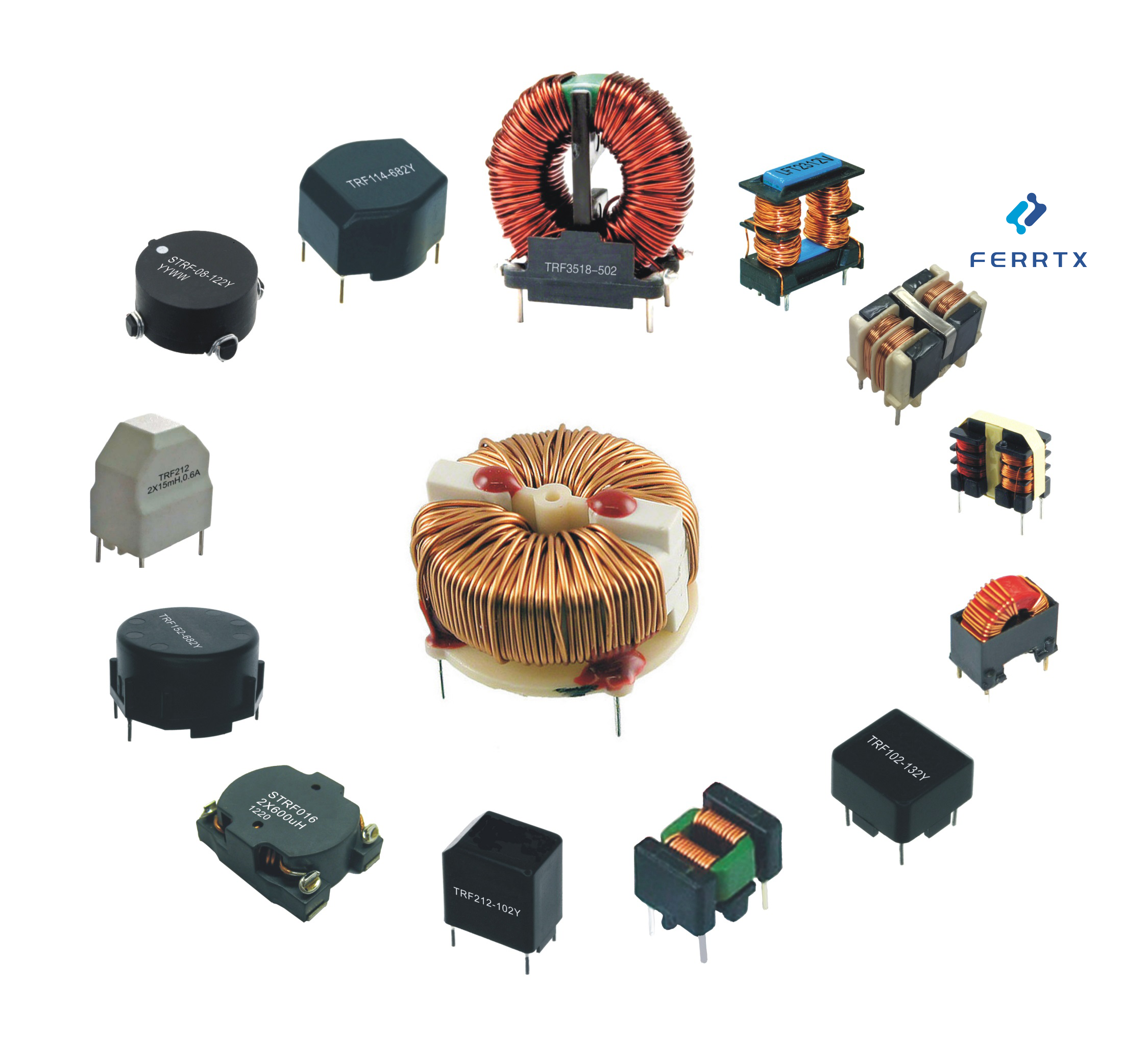

Series in this family

Product Series	L(mH)	IDC(A)	DCR(mΩ)
TRF1005VT	0.4-11	0.9-4.5	22-430
TRF101	4.7-47	0.25-0.90	250-2400
TRF110	1.1-22	0.3-2.0	65-1500
TRF112A	0.7-39	0.4-4.0	27-1700
TRF114A	1.2-47	0.4-3.0	40-2000
TRF1205VT	14-100	1.5-4	15-80
TRF1206VT	1-39	0.3-2.0	45-3000
TRF122A	2.7-27	1.0-3.0	60-640
TRF1407VT-HC	0.175-0.7	5.0-10.0	4.0-15.0
TRF1407VT-LC	1.0-20.0	0.5-3.0	35-540
TRF1407VT-NZ	16-110	3.0-10.0	2.7-31
TRF142A	1.8-27	1.2-6.0	30-400
TRF1608VT	1-33	2.5-15	3.3-90
TRF2008HT	1.0-7.0	3.5-10	12.5-80
TRF2010VT	1.0-20.0	1.5-6.0	13-270
TRF210	1.1-68	0.2-2.0	65-3300
TRF2110VT	1.0-82	2.5-20	2.4-170
TRF212A	0.4-47	0.3-3.6	20-2600
TRF214A	0.7-47	0.4-4.7	20-1600
TRF2206VT-D	0.047-1.0	4.5-15	4.6-42
TRF2208VT	1.0-20.0	2-10	7-220
TRF222A	1.8-50	0.6-6.0	23-1200
TRF246A	2.2-6.8	2.5-4.3	38-120
TRF2512VT	1.0-33.0	3-12	9-210
TRF3015VT	0.9-190	2.0-32	1.1-310
TRF3518	1.0-16	1.5-15	10-320
TRF3518A	0.3-15	1.0-15	5-430
TRF3622	1.2-16	2.2-15	10-400
TRF3622A	0.5-6.5	1-15	8.7-190
TRF4015VT	1.5-35	5-38	2.3-90
TRF4016VT	0.5-1.8	14-35	2.3-9.5
TRF4525	3.0-56	1.8-15	9-1000
TRF4525A	2.5-56	1-15	17-900
TRF5230	6-120	1.5-18	28-1150
TRF5230A	7.5-125	1-15	29-1150
TRF102-202	1-12	0.3-2	70-1275
TRF112-212	1-39	0.4-3.5	35-1460
TRF114-214	1.5-47	0.3-4	35-1750
TRF122-222	3.3-47	0.6-4	45-1180
TRF142-242	3.3-68	0.8-4	66-1600
TRF152-252	2.7-68	1-8	22-1300
TRF102	1.1-22	0.3-2.0	65-1500
TRF4024HT-3W	0.52	24	3.0
TRF5020HT-3W	3.0	46	1.6
TRF2110.2610	1.0-82.0	-	2.1-150.0
TRF5025-3W	0.57-2.2	-	1.4-6.0

Ferrites is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our Power Line Common Mode Choke TRF products.
