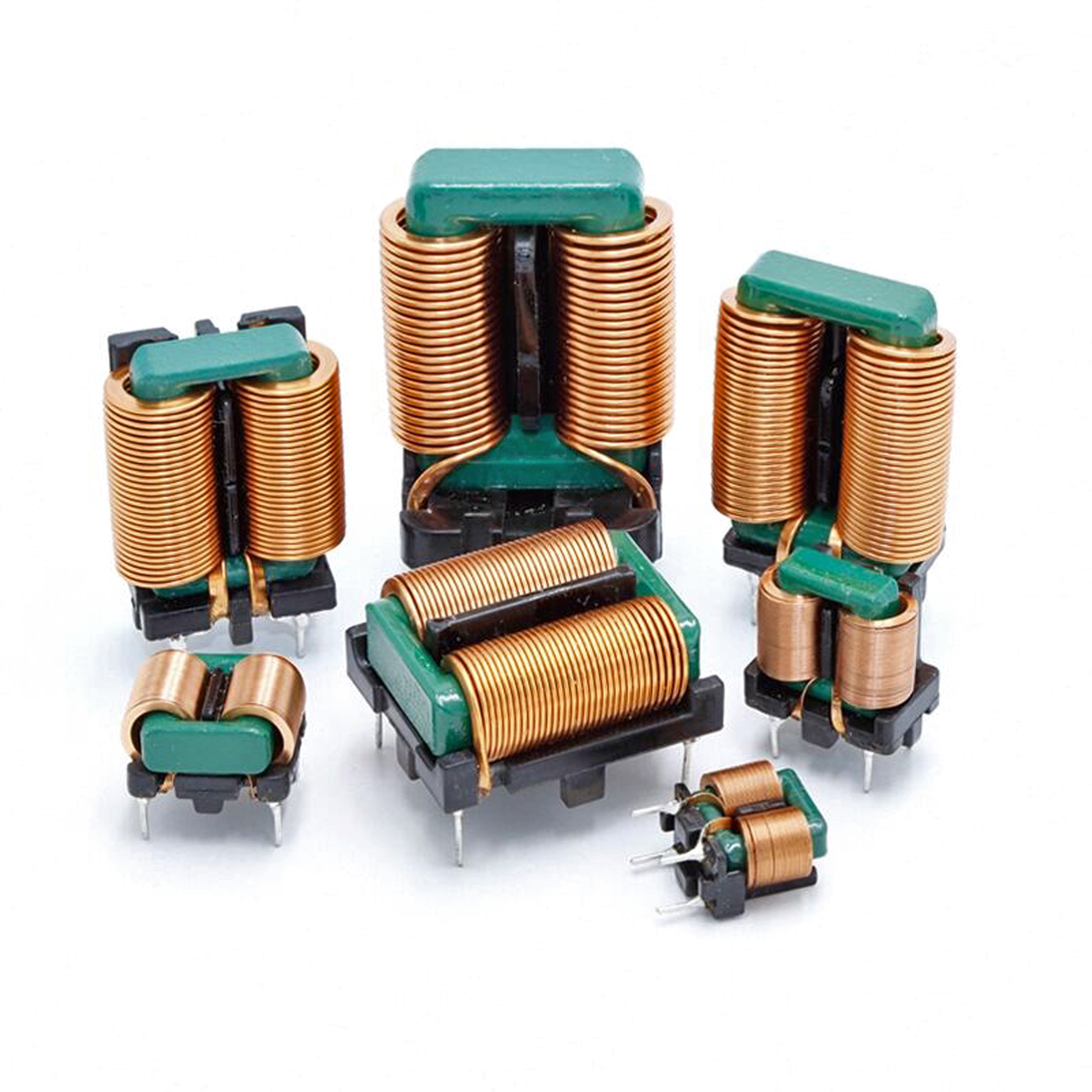

Brand: FERRITES
| Selling Units: | Piece/Pieces |
|---|---|
| Download: |
|
FEATURES:
Rated voltage (V): 85 to 250V AC, 50/60Hz
Turns ratio: n1: n2=1:1
Insulation resistance: 100mΩ min at 500DC
Replacement for: EE16,EE19,EE25,EF16,EF20,EF25,UU10.5, UU16,toroidal common mode inductors
Interturn capacitance is smaller than toroidal core, high insulation strength and high reliability
The closed magnetic core design
Single phase winding, thereby dramatically reduce stray capacitance
EMI suppression is excellent
Fully automatic winding, neat line arrangement, no overlapping, high production efficiency, low labor
APPLICATION:
Switching power supply, Adapter and UPS
Computer products
LED power supply
LCD TV & Monitor Displays Power Boards
Consumer Electric Products & Battery Charger, Printers
