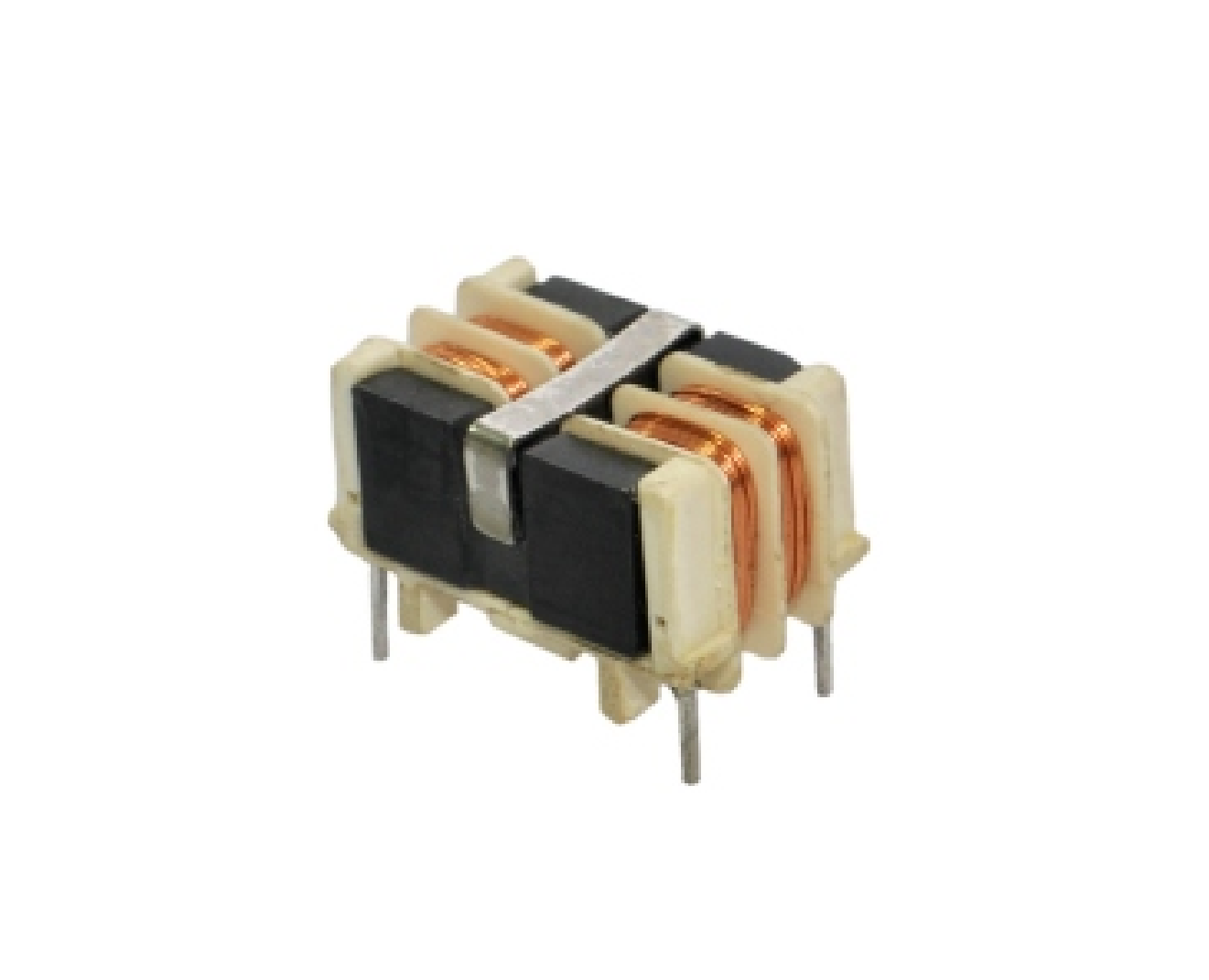

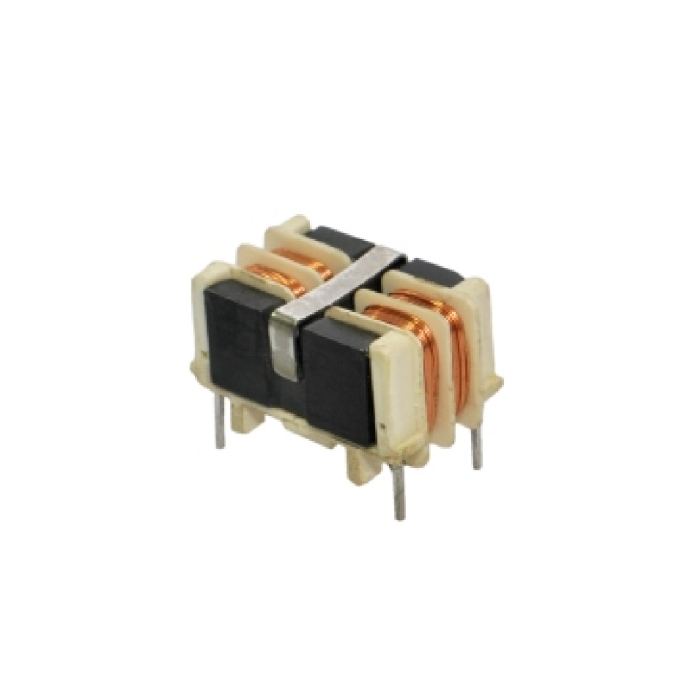

Integrated Common Mode & Differential Mode Choke - LEF17T Series

Conducting EMI getting in the way of your productx27s certification and market success? In the critical realm of power supply design, effective noise suppression is non-negotiable. The LEF17T series represents a leap in EMI Filter technology, integrating both common mode and differential mode filtering into a single, highly reliable Power Inductor component.

Key Features

Space-saving, simplified electromagnetic interference filtering integrates common-mode and differential-mode noise suppression into a single compact component.
The LEF17T features enhanced isolation performance (withstands 1000V AC between windings for 1 minute) and insulation resistance ≥100MΩ at 500V DC.
The closed-loop core design effectively confines magnetic flux, improving efficiency and reducing interference to adjacent circuits.
It operates stably at temperatures up to 110°C, maintaining long-term performance even in confined spaces with restricted airflow.

Applications

Switch-Mode Power Supplies (SMPS): Ideal for 20W to 90W power adapters, chargers.
LED Lighting Drivers: Ensure stable, flicker-free operation and achieve EMC compliance for both indoor and outdoor LED lighting solutions.
Electronic Ballasts: Provide reliable EMI filtering for lighting systems.
Industrial Control Systems: Improve the anti-interference ability of the control board and power module.

Technical Specifications at a Glance

Part Number	Inductance L0 (mH) +50%/-30% @0Adc	Heat Rating Current DC (A)	DCR Max. (Ω)
LEF17T-332Y	3.3	0.8	0.36
LEF17T-682Y	6.8	0.6	0.54
LEF17T-153Y	15	0.5	0.96
LEF17T-253Y	25	0.4	1.15
LEF17T-303Y	30	0.3	1.48

(This table provides a quick comparison. Detailed specs for each part number are available on their respective product pages.)

Technical Information:

Test Frequency: 10kHz, 50mV
Operating Temperature: -50°C to +110°C
Rated Current: The current when the temperature rise of the coil reaches a maximum of ΔT=40°C (Ta=25°C).
