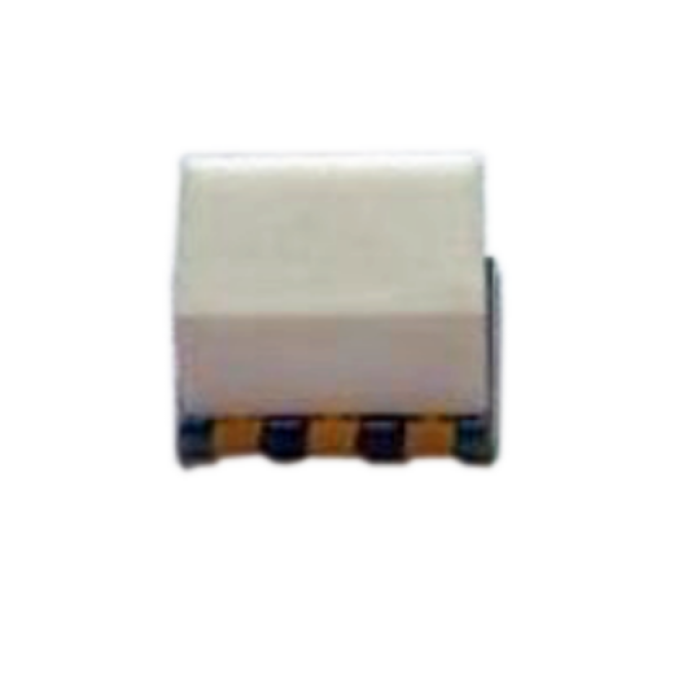

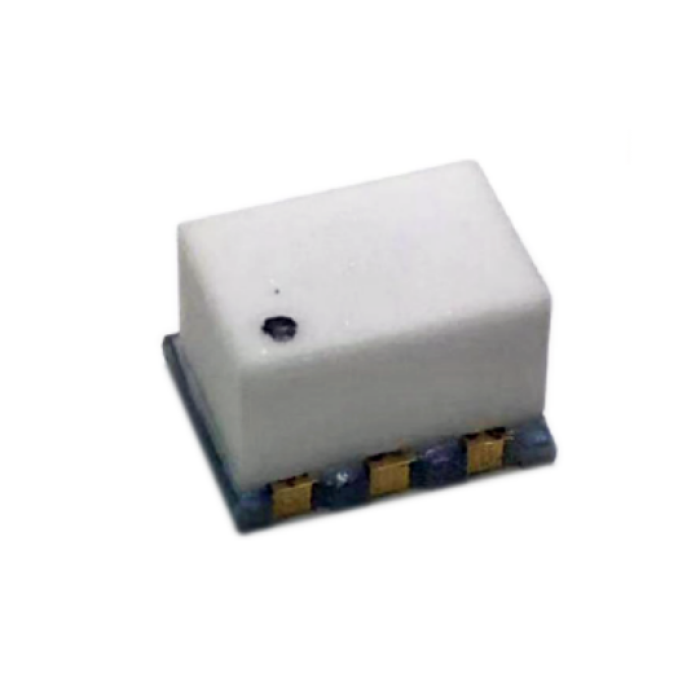

Power Splitter And Power Combiner

 RF Power Splitter And Power Combiner

‌Power Splitter and Power Combiner‌ are versatile ‌RF Microwave Components‌ that perform bidirectional power distribution functions. These devices utilize identical circuit designs, with the only operational difference being the direction of power flow - making them essential for various RF system configurations.

Key Features

• ‌Broadband Performance‌: Wide frequency range coverage
• ‌Excellent Balance‌: Precise phase and amplitude matching
• ‌Robust Construction‌: Strong shielding housing for EMI protection
• ‌Compact Design‌: Space-efficient wound patch package
• ‌Universal Compatibility‌: Standardized size and pin configurations
• ‌Custom Options‌: Available as ‌Customized Power Splitter‌ solutions

Technical Specifications

Our ‌Power Splitter and Power Combiner‌ products offer:

• Low insertion loss for minimal signal degradation
• High isolation between output ports
• Superior power handling capability
• Stable performance across temperature variations
• Compatibility with ‌EMC Filter - EMI/RFI‌ solutions

Applications

These components are widely used in:

• ‌Microwave Communication Systems‌: Base stations and repeaters
• ‌Radar Systems‌: Military and civilian applications
• ‌RF Transceivers‌: UHF/VHF receivers and transmitters
• ‌Sensor Networks‌: IoT and monitoring systems
• ‌Broadcast Equipment‌: Television and radio transmission

System Integration

‌Power Splitter and Power Combiner‌ devices work seamlessly with various ‌Power Inductors‌, ‌RF Inductors‌, and ‌Transformers‌ in complex RF systems. Their performance characteristics make them ideal partners for other ‌rf microwave Components‌ in signal distribution networks.
