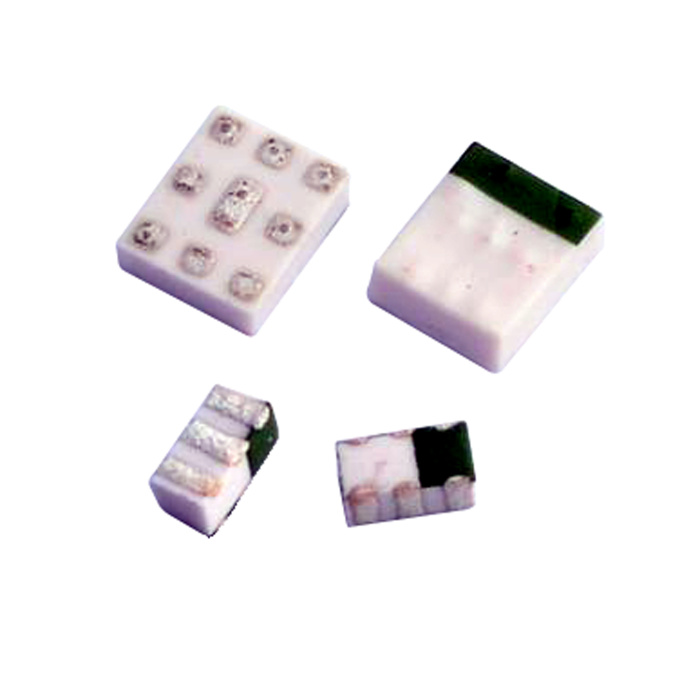

High Quality LTCC Triplexer

The LTCC Triplexer is a compact, high-performance RF component designed to separate or combine three different frequency bands within a single module. Based on Low Temperature Co-Fired Ceramic (LTCC) technology, this Triplexer delivers excellent isolation, low insertion loss, and outstanding frequency stability, making it ideal for modern wireless and RF communication systems.

Compared with discrete filtering solutions, a Customized LTCC Triplexer significantly reduces PCB space while improving system reliability and signal integrity. It is widely used in multi-band RF front-end designs where size, consistency, and electrical performance are critical.

Key Features

• LTCC Integrated Structure
  Multilayer ceramic construction ensures stable electrical performance and excellent repeatability in mass production.

• Low Insertion Loss & High Isolation
  Optimized RF design minimizes signal loss between channels while maintaining high channel-to-channel isolation.

• Compact & Surface-Mount Design
  Ideal for high-density PCB layouts, supporting automated SMT assembly processes.

• Wide Frequency Customization
  Frequency bands, bandwidth, and impedance can be tailored according to system requirements.

• High Reliability
  Ceramic materials provide strong thermal stability and long-term performance consistency.

Why Choose LTCC Triplexer Technology?

An LTCC Triplexer integrates multiple RF filtering paths into a single ceramic body, reducing the need for multiple discrete components such as RF Inductors and capacitors. This results in:

• Lower assembly cost

• Improved RF consistency

• Reduced parasitic effects

• Better EMC performance when combined with RF Components in complex signal chains

Compared with traditional PCB-based solutions, LTCC technology offers superior miniaturization and electrical stability, especially in multi-band wireless applications.

Typical Applications

• Wireless Communication Systems
  Multi-band transceivers, base stations, and small cells requiring precise frequency separation.

• IoT & Smart Devices
  Compact RF modules supporting multiple wireless standards in limited space.

• RF Front-End Modules
  Used alongside RF Transformers and amplifiers to optimize signal routing and isolation.

• Antenna Systems
  Enables efficient signal distribution between antennas and transceiver circuits.

• Industrial & Automotive Electronics
  Stable RF performance under varying temperature and environmental conditions.

Customization Capabilities

We offer Customized LTCC Triplexer solutions based on your system requirements, including:

• Center frequency and bandwidth design

• Port configuration and impedance matching

• Package size and pin layout

• Electrical performance optimization for specific applications

Our engineering team works closely with customers to ensure seamless integration into existing RF architectures.

Integration with Other RF Solutions

The LTCC Triplexer can be effectively combined with related components such as RF Microwave Components, Couplers, and shielding solutions to build highly integrated RF modules with optimized signal flow and reduced interference.

Summary

The LTCC Triplexer is an efficient and reliable solution for multi-band RF signal management. With compact size, excellent electrical performance, and full customization support, it is an ideal choice for modern wireless, IoT, and RF communication systems requiring stable and space-saving frequency separation.

For custom designs or application support, feel free to contact us for technical consultation.
