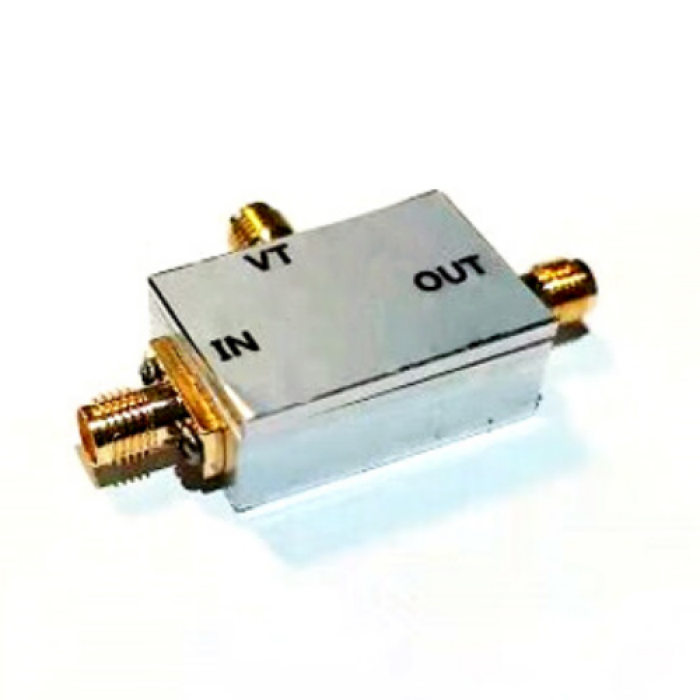

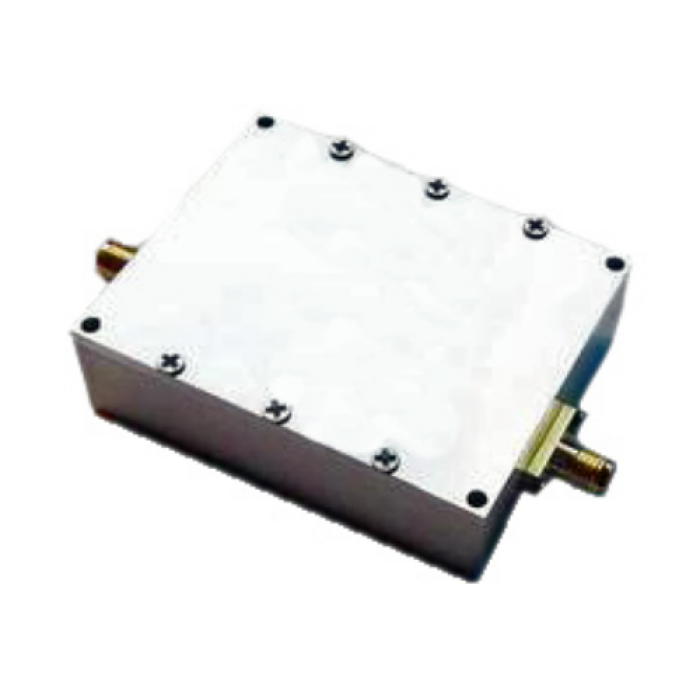

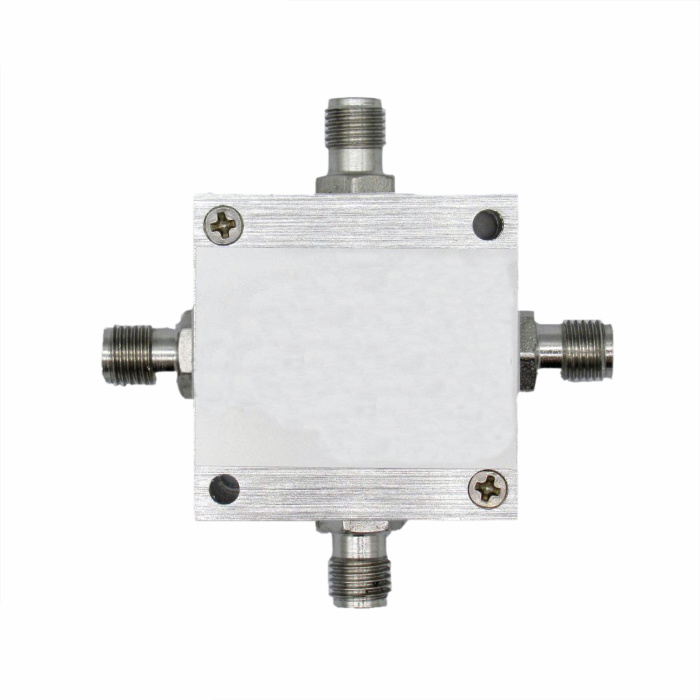

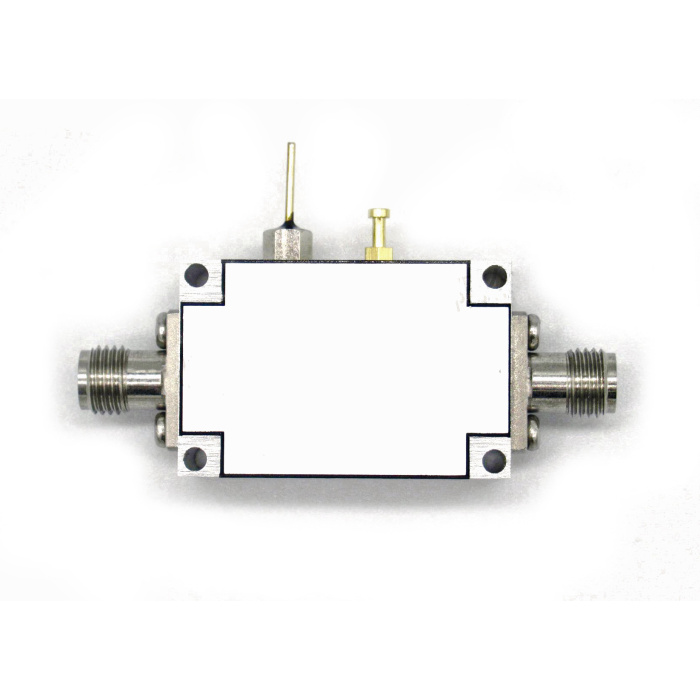

The ‌RF Phase Shifter‌ is a critical ‌rf microwave Component‌ designed to dynamically adjust signal delay and phase alignment in ‌RF Components‌-driven transmission systems. Capable of online phase adjustments up to 900°/GHz, this hand-modulated device operates from DC-40GHz with high power handling (100W average) and ultra-low insertion loss—a benchmark for ‌Microwave waveguide components‌ in precision measurement and phased array systems.

Technical Principles‌

As an essential ‌waveguide component and application‌, the phase shifter alters signal paths through passive circuits or active elements. Advanced designs now integrate ‌microwave waveguide components‌ to optimize phase shift accuracy, bandwidth, and thermal stability, reflecting innovations in ‌RF Microwave Components‌ technology.

Key Parameters‌

• ‌Phase Shift Accuracy‌: Critical for ‌RF Components‌ in radar and satellite communications.
• ‌Bandwidth Optimization‌: Achieved through ‌microwave waveguide components‌-enabled architectures.
• ‌Hi-Rel Performance‌: Ensures longevity in ‌waveguide components and applications‌ like 5G base stations.

Applications‌

1. ‌Phased Array Antennas‌:
   Deploy ‌RF Microwave Components‌ for real-time beamforming and interference mitigation.
2. ‌Radar Systems‌:
   Utilize ‌microwave waveguide components‌ to enhance Doppler resolution and phase coherence.
3. ‌Wireless Communications‌:
   Integrate ‌waveguide components and applications‌ for adaptive MIMO configurations.
4. ‌Laboratory Testing‌:
   Validate ‌RF Components‌ using phase shifters as calibration tools for high-frequency systems.

Ferrites is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our RF Phase Shifters products.
