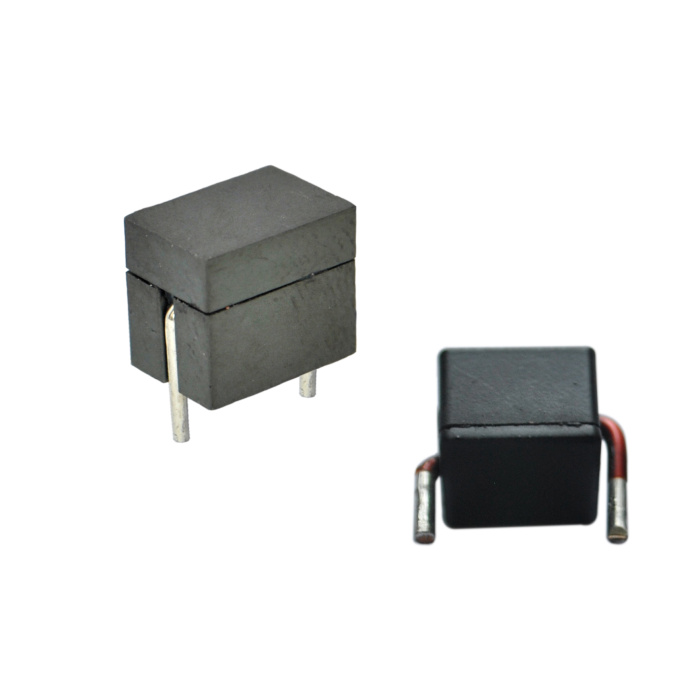

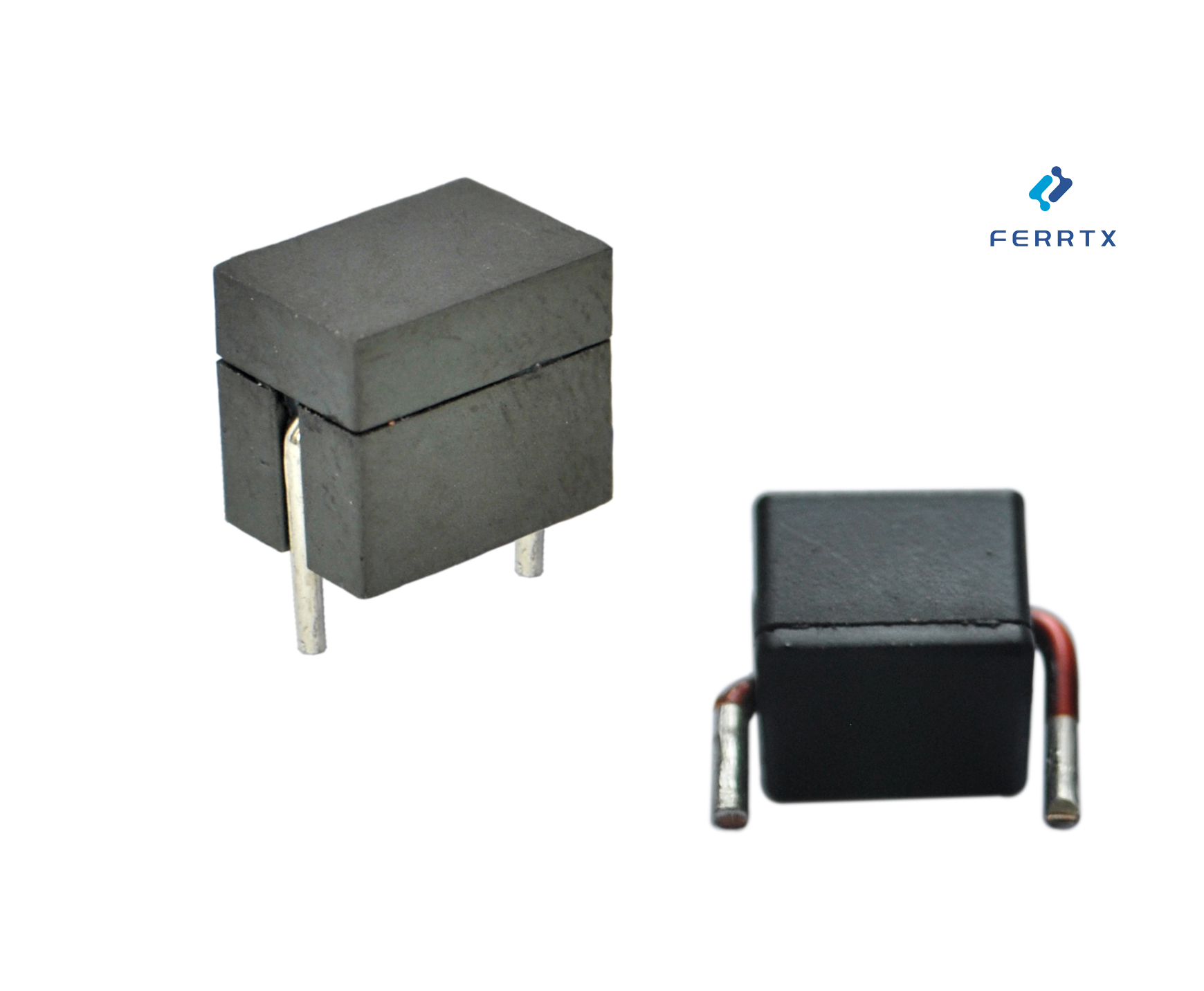

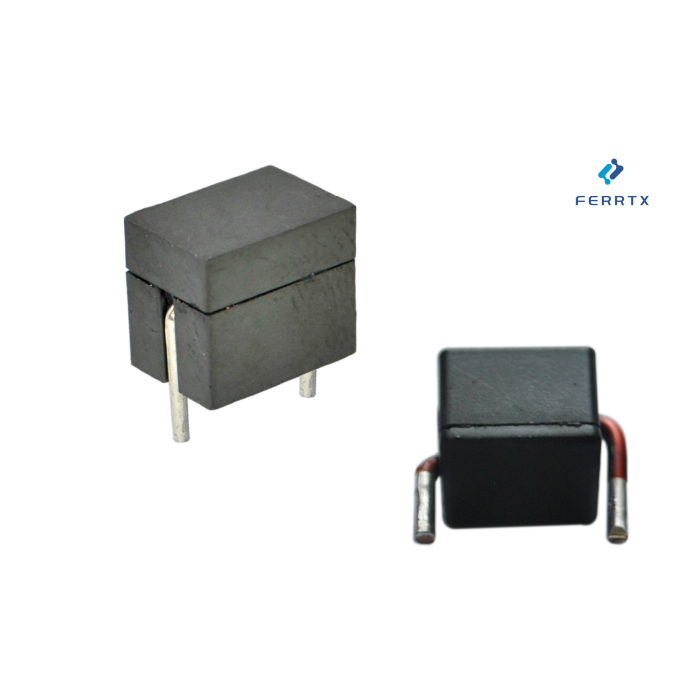

Shielded Core Inductor HQ

shielded core inductor HQ

Inductance itself is not "polarized," a term typically used to describe the property change in dielectric materials under an electric field. ‌Power Inductors‌ and ‌Shielding Inductors‌, like most ‌shielded inductors‌ and conventional inductance components, are primarily coils wound from conducting wires.

Their working principle is based on electromagnetic induction: when current through the coil changes, a self-induced electromotive force is generated to resist this change. ‌Shielding Inductors‌ enhance this behavior by containing magnetic fields through ‌Shielded Inductors‌' structural designs, while ‌Power Inductors‌ optimize energy storage for high-current systems through ‌Power Inductor‌-specific winding configurations.

FEATURES:

·Size: 15.5mm x 11mm x 8mm

·Current Rating:up to 50Apk

·Inductance Range: 0.14μH to 2.25μH

·Handles high transient current spikes without saturation

·Ultra low buzz noise, due to composite construction

·Compliant to RoHS directive 2002/95/EC

·Operating Temperature & Storage Temperature: -40℃ - +125℃.

APPLCATIONS:

·PDA/notebook/desktop/server applications

·High current POL converters

·Low profile, high current power supplies

·Battery powered devices

·DC/DC converters in distributed power systems

·DC/DC converter for Field Programmable Gate Array (FPGA)

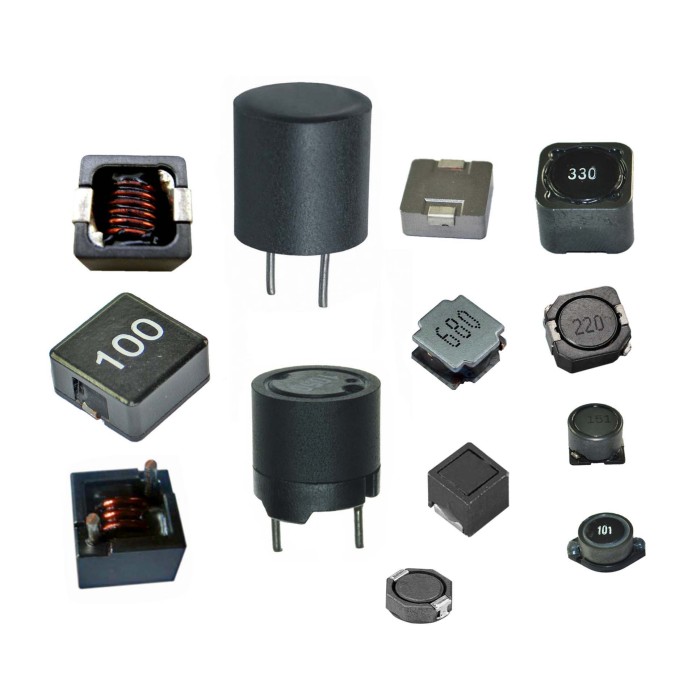

Series in this family

Ferrtx is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our Shielded Core Inductor HQ products.
