Model No.: LPA
Brand: FERRTX
Species: Inductor Surface Mount
Supply Type: Original Manufacturer, Odm
Place Of Origin: China
Features: Not Applicable
Installation Method: Surface Mount
Inductance Range: 0.13μH - 47μH
Saturation Current: Up to 65A (LPA1260-R22M)
DCR Range: 0.39mΩ - 37.95mΩ
Operating Temp: -55°C to +125°C
Package Type: Tape & Reel
Shielding Type: Magnetically Shielded
Test Standard: IEC 62024-2
Reel Qty: 250~1000
| Selling Units: | Piece/Pieces |
|---|---|
| Download: |
|
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 2~8weeks
Certificate: RoHS/ ISO/UL/CE/IATF 16949/CNAS
Port: Xi'an,Shanghai
Payment Type: L/C,T/T
Procurement teams across server, graphics card, and data storage industries face a critical challenge: balancing peak efficiency designs with supply chain resilience. The LPA inductor series delivers uncompromised performance while mitigating sourcing risks:
Broadest current coverage: 5A to 65A saturation current (Isat) across 11 product series
Transparent lead times: Standard 2-8 week delivery with expedited options
Packaging flexibility: From 800pcs/reel (LPA1030/1050) to custom quantities
"The LPA1030-R33M’s 18A Irms rating allowed 15% power density increase in our server PSUs. Their reel packaging matched our SMT line capacity without reconfiguration."*
― Data Infrastructure Procurement Director, Fortune 500 Tech Firm
All values @25°C ambient, 100kHz test frequency
| Series | Height (mm) | Max Isat (A) | Max Irms/IDC (A) | Packaging |
| LPA2110 | 10.6-11.5 | 70 | 40 | Custom |

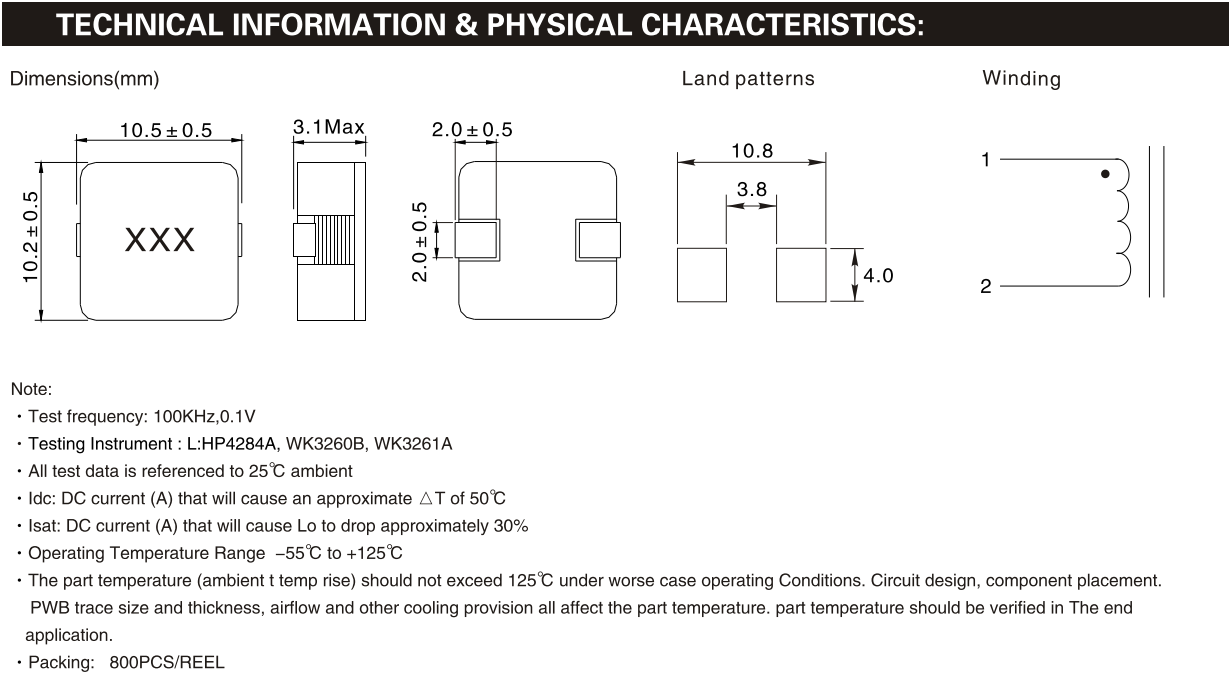

| LPA1030 | 3.1 Max | 50 | 22 | 800pcs/reel |
| LPA1050 | 5.0 Max | 58 | 25 | 800pcs/reel |
| LPA1890 | 9.2 Max | 65 | 41.5 | 250pcs/reel |
Parametric Advantage:
LPA2110: Industry-leading 40A continuous current in ≤11.5mm profile
LPA1030/LPA1050: Optimized 800pcs reels minimize SMT line changeovers
LPA1890: 65A Isat for high-power server applications
All LPA series inductors feature:
