SMD Common Mode Chokes



emc filter Power Line Common Mode Choke LFU

Description

Product Attributes

Brand: FERRITES

Packaging & Delivery

Selling Units:	Piece/Pieces
Download:

Product Description

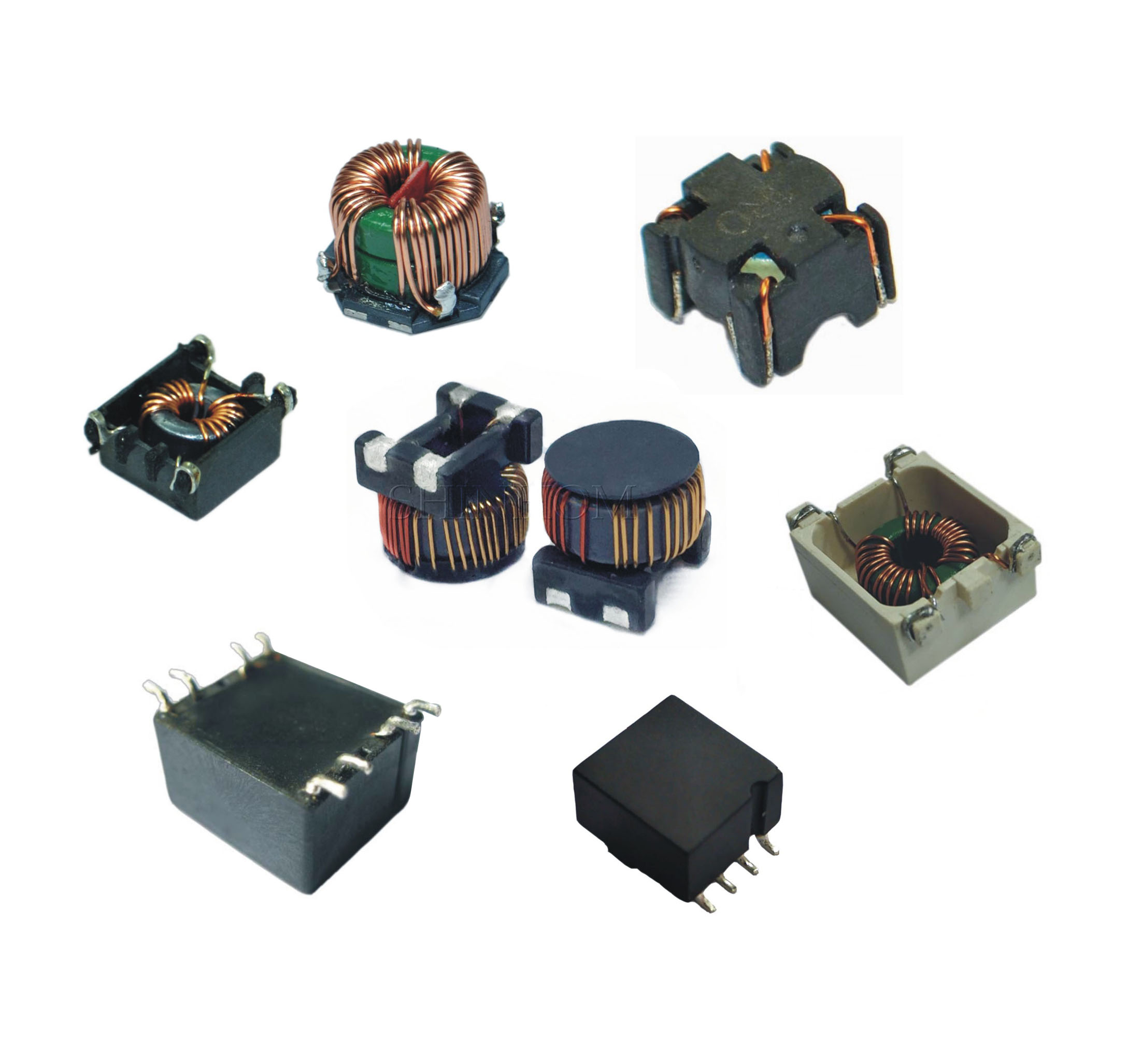

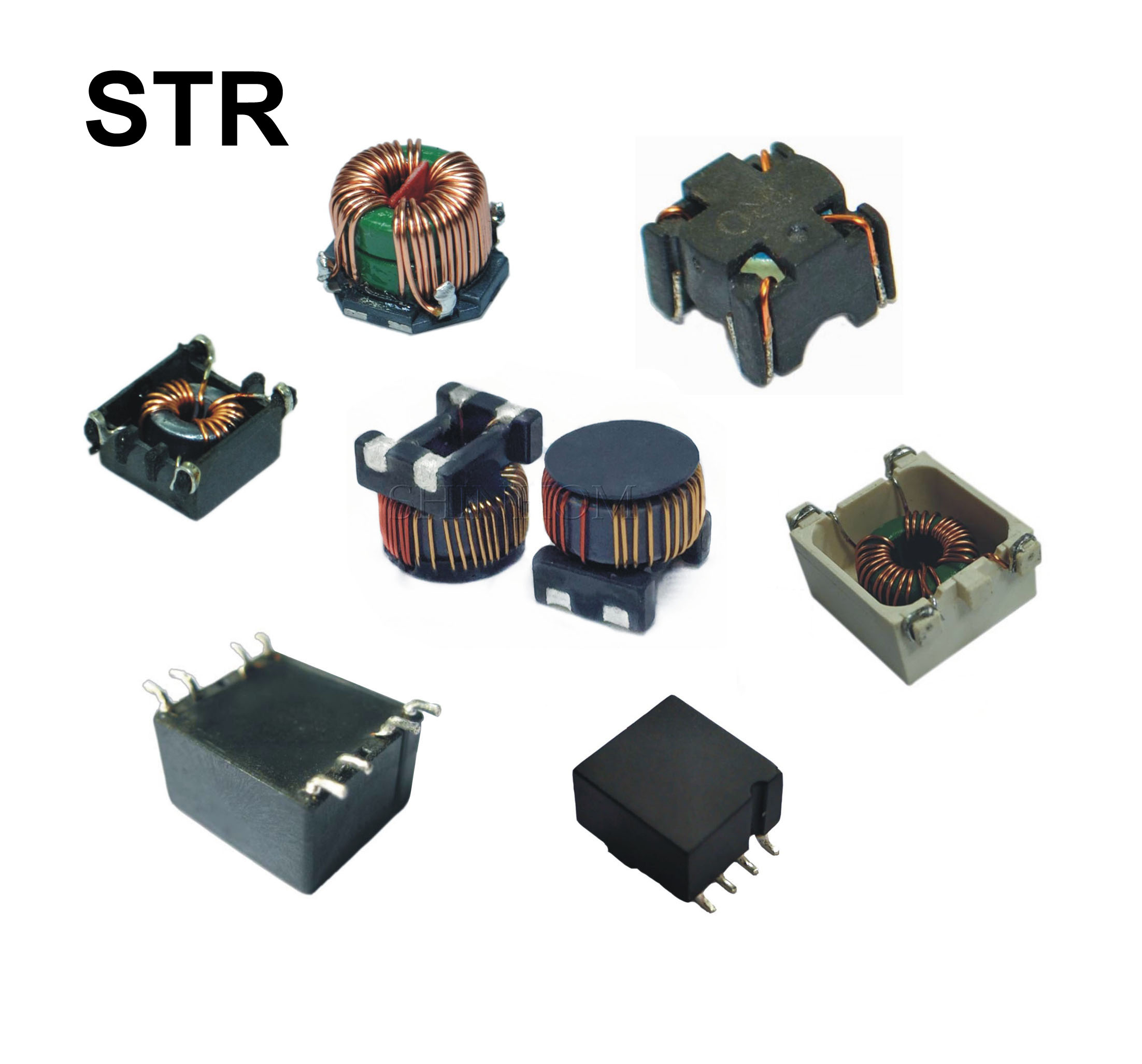

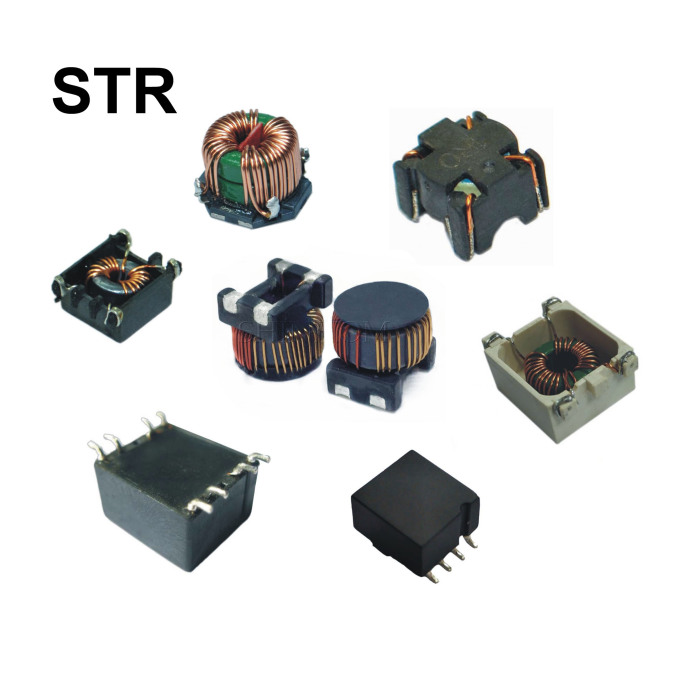

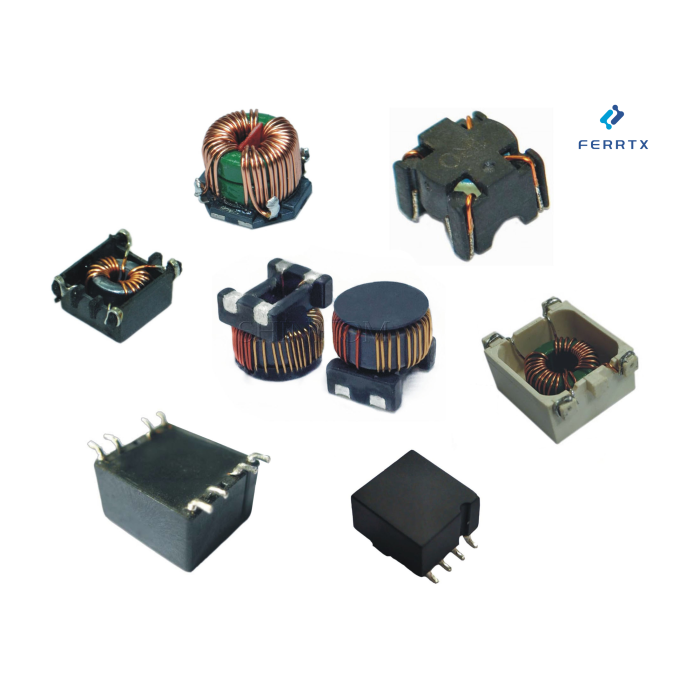

STR Family

SMD Line Filter

Engineered for ‌EMI Filter‌ performance and ‌High Frequency Common Mode Chokes‌ applications, the ‌SMD Common Mode Chokes STR‌ series delivers superior noise suppression in compact surface-mount packages.

FEATURES:

-SMD Common Mode Chokes STR‌ with SMD housing for PCB integration
-High Frequency Common Mode Chokes‌ design with wire-wound construction
-Excellent mechanical strength & solderability
-Low-profile ‌Emi Filter‌ solution (high impedance/low DCR)
-High reliability under extreme current loads
-Optimized EMI suppression for power/communication lines

‌APPLICATIONS:‌
-Emi Filter‌ implementations in:

-VCRs | Video Cameras | Automotive Systems

-LCD TVs | Hard Disk Drives | Network Systems
-High Frequency Common Mode Chokes‌ for:

-Wireless charging systems | Computer peripherals

-Switch-mode power supplies | Electronic ballasts
-SMD Common Mode Chokes STR‌ in high-current scenarios:

-Car electronics | Power device design | Battery lines

Series in this family

Product Series	L(µH)	DCR(mΩ)	IDC(A)
STR0602	10-300	25-70	1.5-2.5
STR0603	150-1000	150-820	0.5-1.0
STR0903	1100-22000	65-1500	0.3-2.0
STR1206	1100-22000	65-1500	0.3-2.0
STR804	-	100-130	2.3-2.5

Ferrites is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in ourSMD Common Mode Chokes STR products.
