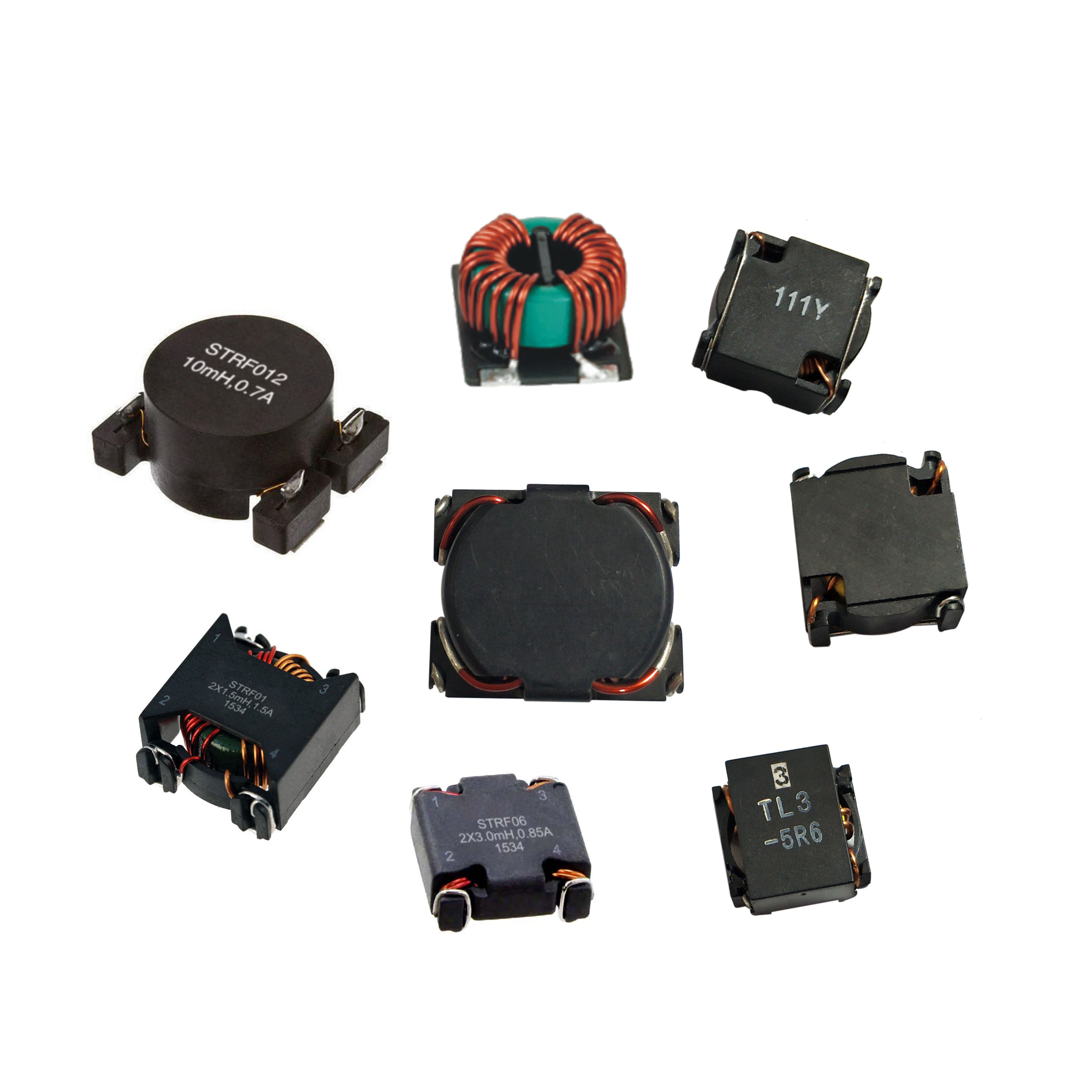

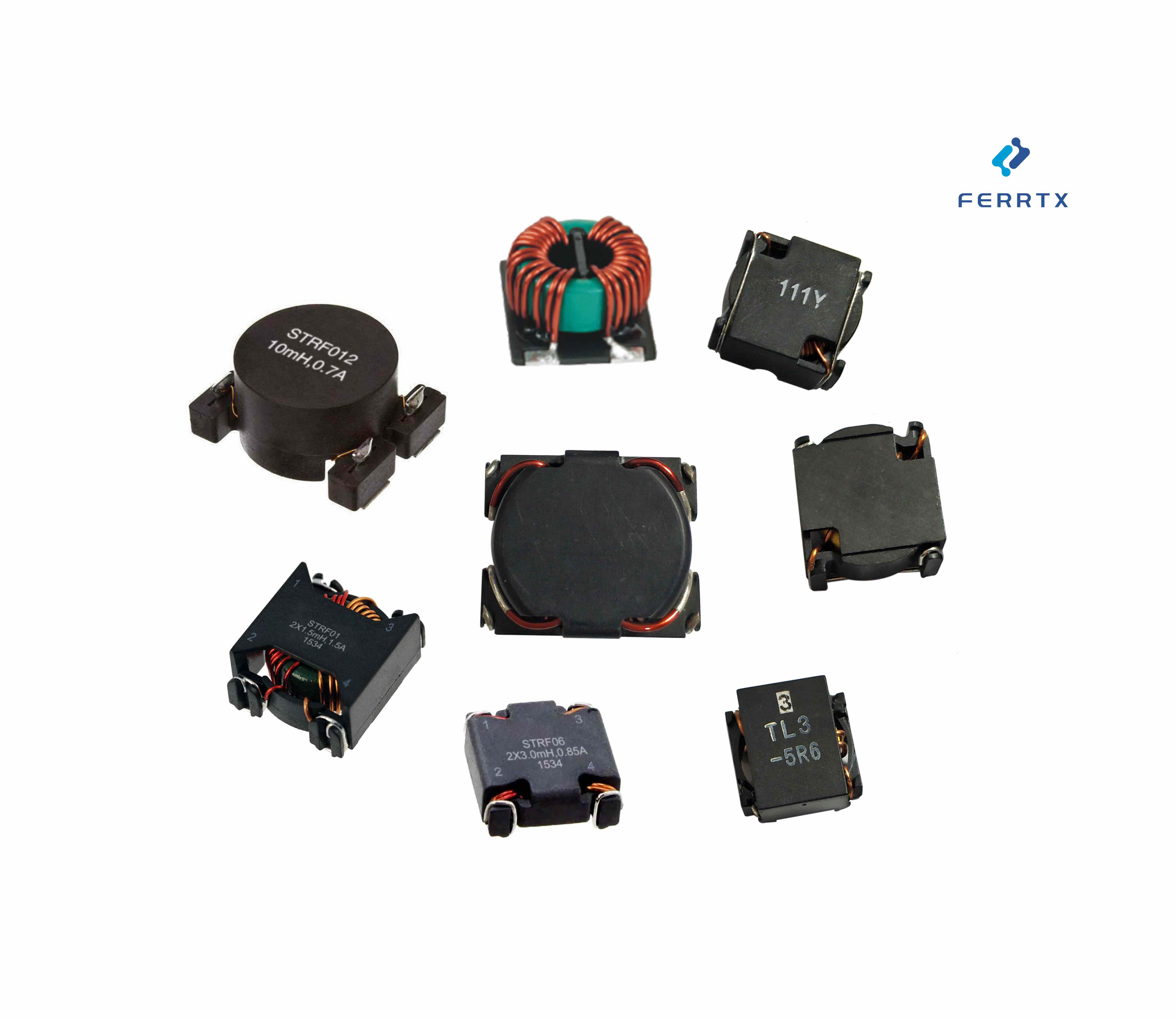

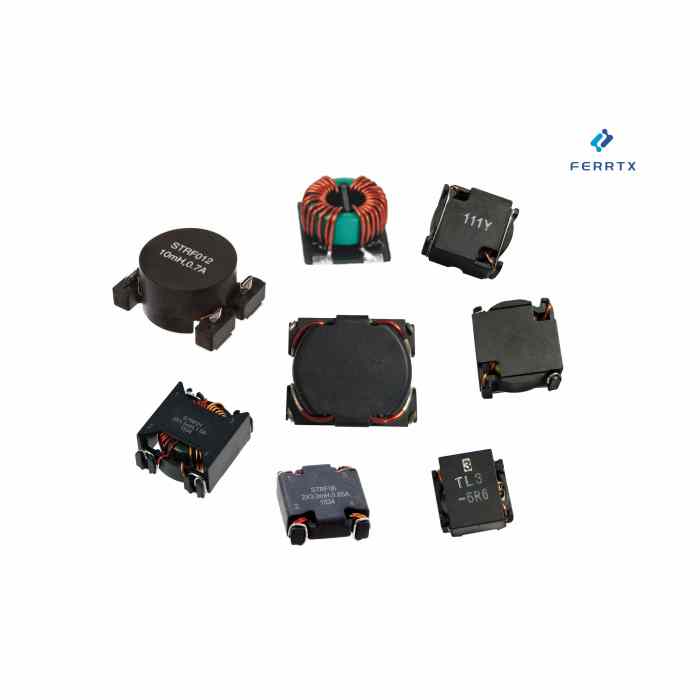

SMD Common Mode Chokes STRF

The STRF Series SMD Common Mode Chokes are surface-mount EMI suppression components designed for efficient Common Mode Choke filter applications in power and signal lines. This series has been independently separated from the legacy product range to provide clearer classification and improved performance targeting on the Ferrtx website.

STRF series chokes are engineered to meet modern EMI filtering requirements while maintaining compact size and stable electrical characteristics.

Common Mode Chokes Filter for EMI Suppression

A common mode chokes filter is widely used to suppress conducted electromagnetic interference generated by switching power supplies, digital circuits, and communication interfaces.

The STRF Common Mode Choke Filter works by:

• Blocking high-frequency common-mode noise

• Allowing normal differential currents to pass with minimal loss

• Improving system EMC compliance

Such filters are commonly integrated into EMI Filter architectures together with Power Line Filters.

Design Reference: Wurth Common Mode Chokes

In many EMI filter designs, engineers reference well-known solutions such as Wurth Common Mode Chokes when evaluating impedance characteristics, current handling, and frequency response.

The STRF series is developed as a performance-oriented alternative, offering:

• Comparable impedance behavior across EMI frequency bands

• Stable inductance under rated current

• Flexible customization for specific applications

This makes STRF suitable for engineers seeking common mode choke filter solutions aligned with established industry design practices.

Common Mode Choke Filter Operation

The common mode choke filter operation of the STRF series is based on magnetic coupling principles:

• Differential currents generate opposing magnetic flux, resulting in low impedance

• Common-mode noise currents reinforce magnetic flux, creating high impedance

• EMI noise is attenuated without degrading power or signal integrity

This operating mechanism is essential in compact SMD Common Mode Chokes used in modern electronics.

Key Features of STRF SMD Common Mode Chokes

• Surface-Mount (SMD) Package
  Compatible with automated reflow soldering processes.

• High Common-Mode Impedance
  Effective suppression of EMI noise over a broad frequency range.

• Low DC Resistance
  Reduces power loss and thermal rise.

• Compact Footprint
  Suitable for high-density PCB layouts.

• Reliable Electrical Stability
  Consistent performance under continuous operating conditions.

STRF chokes can be used alongside ferrite bead inductor and Power Line Common Mode Choke solutions for comprehensive EMI control.

Applications of STRF Common Mode Choke Filters

The STRF Series Common Mode Choke Filter is widely used in:

• AC-DC power supplies

• DC-DC power modules

• Industrial control systems

• Consumer electronics

• Communication equipment

It is frequently combined with SMD Common Mode Chokes and Power Line Common Mode Choke solutions to meet EMC standards.

Custom Common Mode Choke Filter Solutions

Ferrtx provides customization support for STRF Common Mode Choke Filters, including:

• Inductance and impedance tuning

• Rated current and voltage optimization

• Mechanical size and footprint adaptation

• Application-specific EMI performance targets

Our engineering team supports projects from prototype validation to mass production.

Why Choose FERRTX STRF SMD Common Mode Chokes?

• Independent STRF series classification for precise selection

• Proven common mode choke filter performance

• Compatible with industry-recognized EMI design references

• Strong customization and technical support

FERRTX STRF Series SMD Common Mode Chokes deliver reliable EMI suppression for modern electronic systems requiring compact, efficient, and stable filtering solutions.
