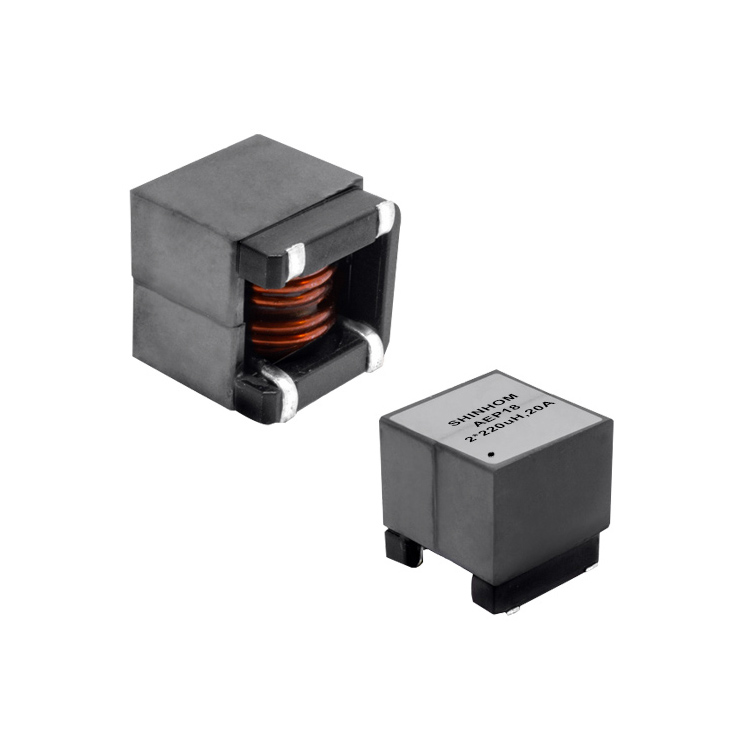

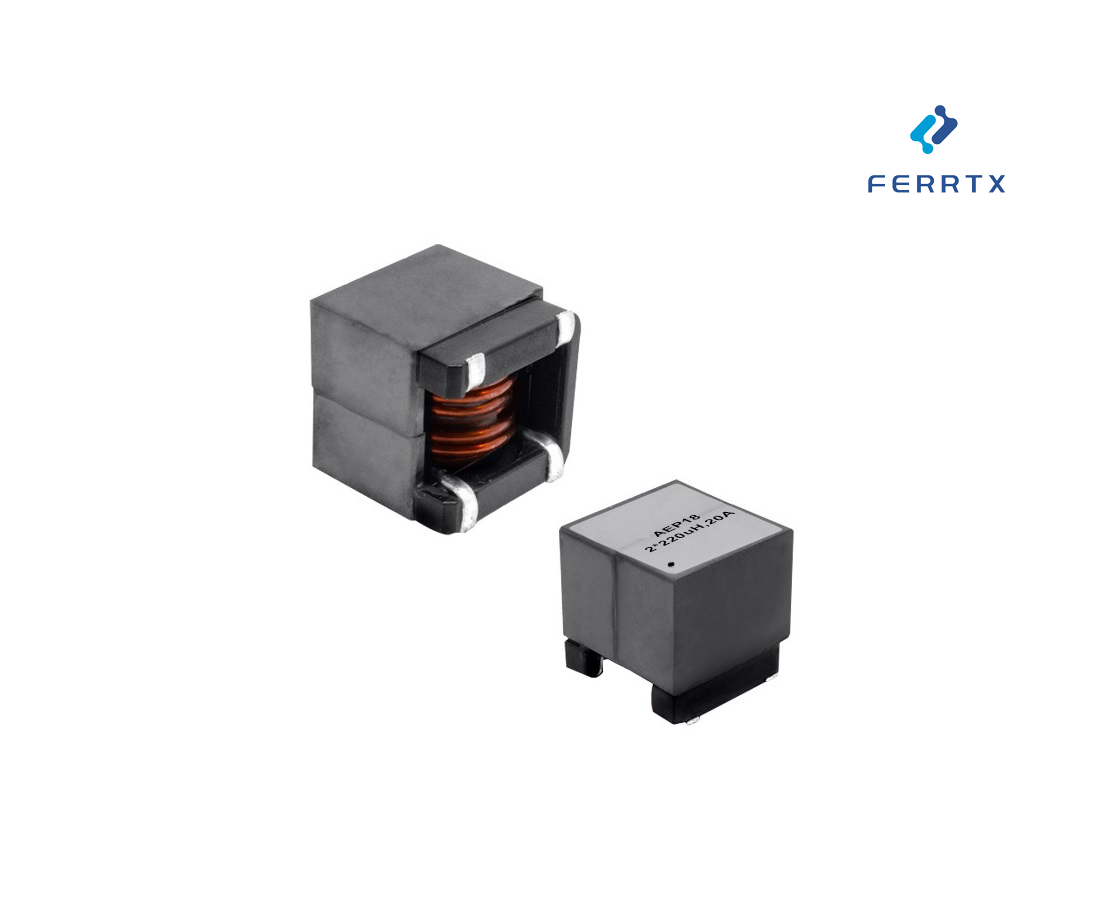

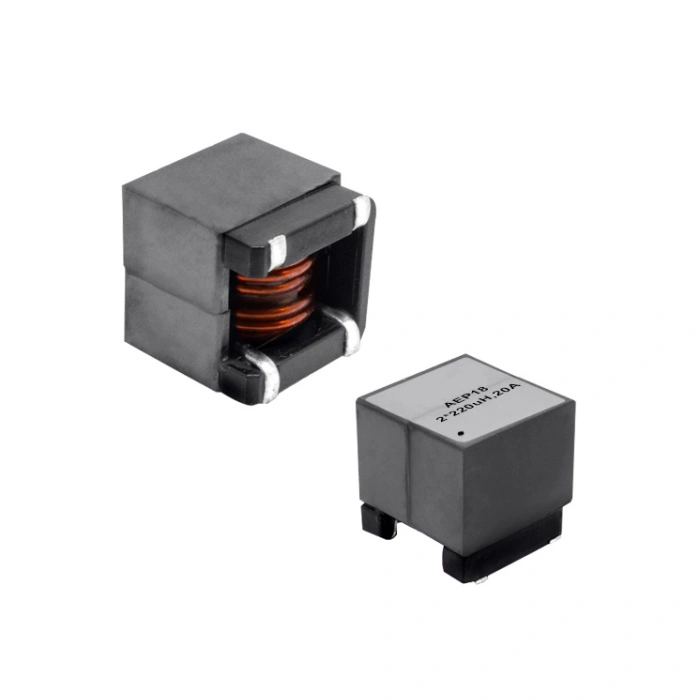

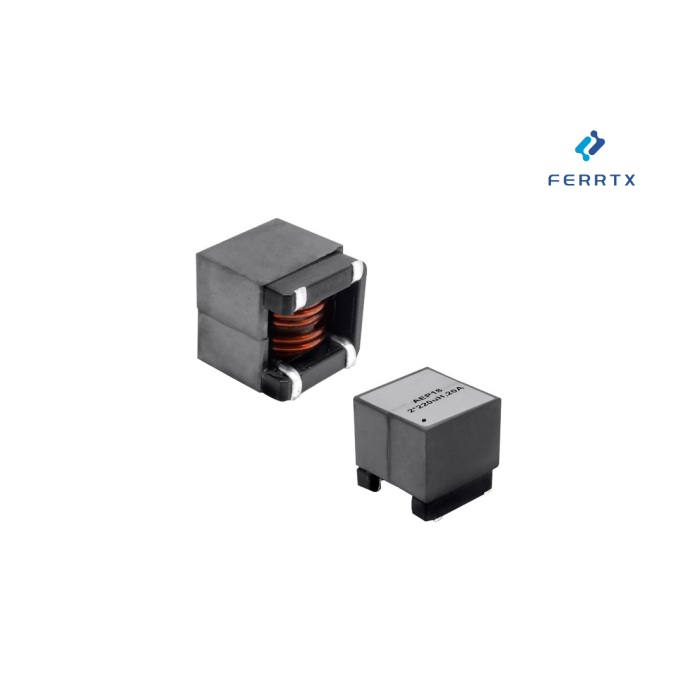

Surface Mount 2 Line Common Mode Choke
In AC power lines or signal transmission lines, EMI Filter components like SMD Common Mode Chokes are critical for suppressing unwanted high-frequency noise alongside useful signals.
These interferences are classified into common mode noise (simultaneous same-direction disturbances) and differential mode noise (opposite-direction variations), both targeted by High Frequency Common Mode Chokes in modern circuit designs.
SMD Common Mode Chokes operate via electromagnetic induction to counteract current fluctuations. As common mode noise flows uniformly through conductors, these High Frequency Common Mode Chokes generate opposing magnetic fields to "choke" interference propagation - a core Emi Filter mechanism protecting downstream devices.
EP18 & EP22 Platforms (Surface Mount)
・Compact sizing: 19.5x19.8x19.2mm & 23.5x24.3x22.7mm
・Optimized for SMD Common Mode Chokes in high-current scenarios
・1000Vrms Isolation (380Vrms continuous)
・High Frequency Common Mode Chokes performance: -40℃ to +125℃ operation
・Ideal Emi Filter integration for power-density critical systems
