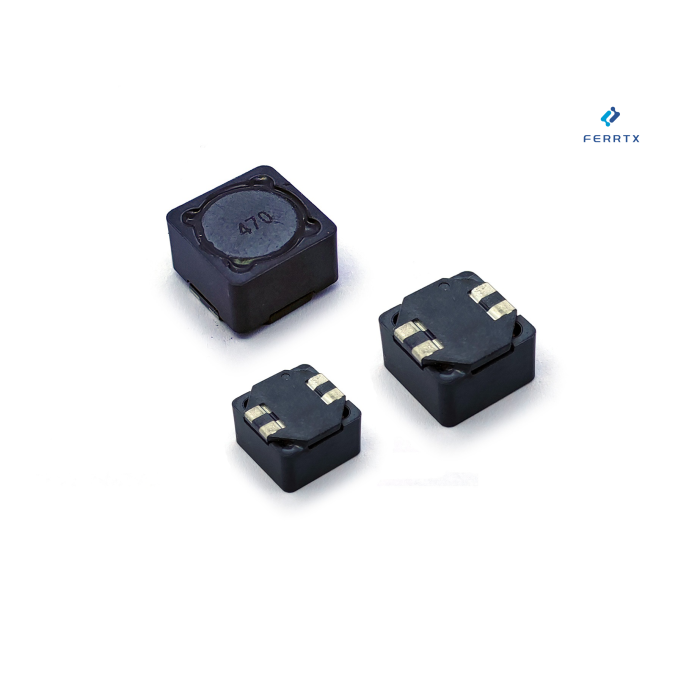

SDRH-D Family

Dual Winding,Shielding Inductors

The SMD Common Mode Chokes SDRH-D series delivers industry-leading EMI suppression through its dual-winding architecture. Optimized for EMI Filter integration in high-density designs, these components achieve certified thermal stability while maintaining VRM-level power integrity.

Features

・Tight coupling of dual windings
・Laser-welded joints for durability
・Mechanical robustness meeting EMI standards
・Flexible configurations (1:1 Transformer/dual inductors)

Applications

・SEPIC/flyback Transformers
・DDR VRM solutions
・Buck/boost converters for laptops
・Network equipment I/O filters

Series in this family

Product Series	L(µH)	DCR Max(Ω)	IDC (A)
SDRH0703D	0.33-1000	0.0074-17.36	0.13-7.18
SDRH0704D	0.33-1000	0.074-15.6	0.135-3.1
SDRH1048D	1.54-220	0.019-0.84	0.62-2.4
SDRH1205D	0.47-1000	0.0018-6.76	0.35-16.5
SDRH1207D	0.47-1000	0.00195-6.64	0.307-8.94
SDRH1260D	2.64-1000	0.02-3.06	0.34-3.60
SDRH1278D	4.7-1000	0.04-2.87	0.37-16.36
SDRH1514D	2-1000	0.012-1.25	0.66-6.0
SDRH1583D	8.0-1000	0.031-2.4	0.42-3.68
SDRH1614D	22-1000	0.036-0.786	0.78-10.2
SDRH3015D	0.39-330	0.071-27.7	0.07-3.4
SDRH4012D	0.33-330	0.042-17.0	0.10-5.6
SDRH4829D	3.76-220	0.322-5.25	0.24-1.9
SDRH5010D	0.68-220	0.07-15.2	0.11-2.8
SDRH5030D	0.57-1000	0.031-16.5	0.10-6.03
SDRH5228D	10-220	0.3-6.1	0.14-1.4
SDRH5230D	1.0-47	0.045-1.2	0.6-5.0
SDRH6235D	6.8-2000	0.12-16.0	0.08-3.12
SDRH7342D	2.0-1000	0.033-7.8	0.14-2.17

FERRTX is dedicated to setting a high bar of excellence for industries integrating magnetics technologies in our SMD Common Mode Chokes SDRH-D products.
