Product Description

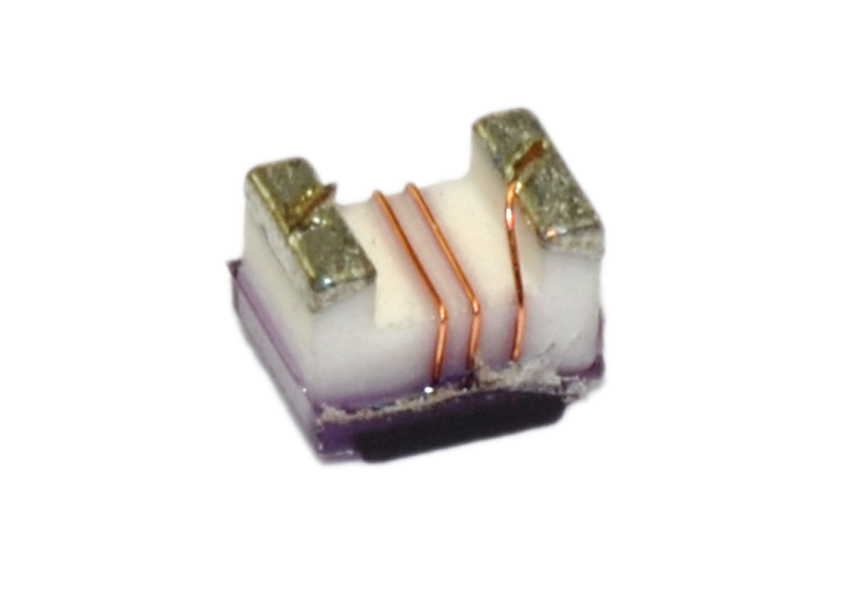

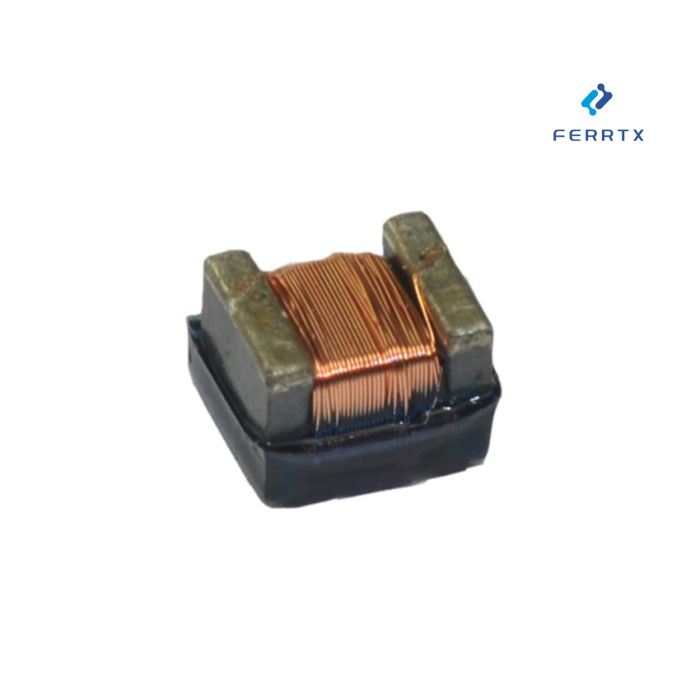

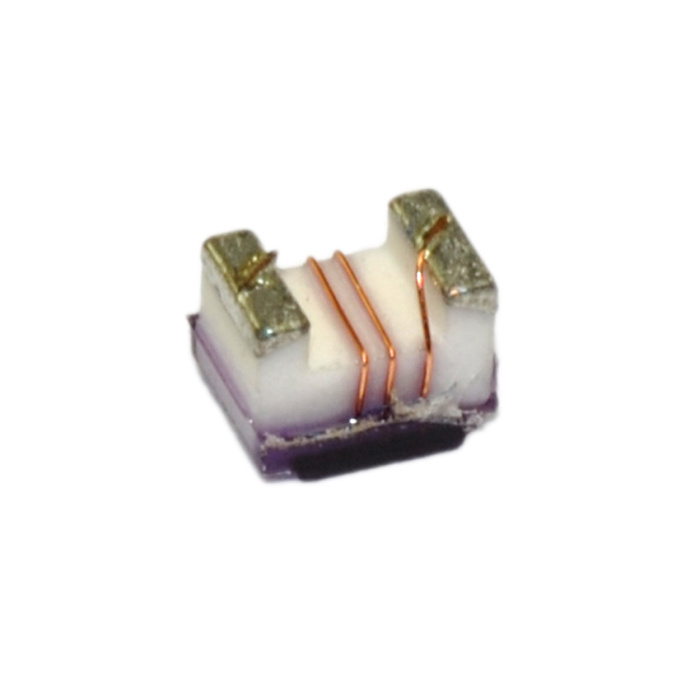

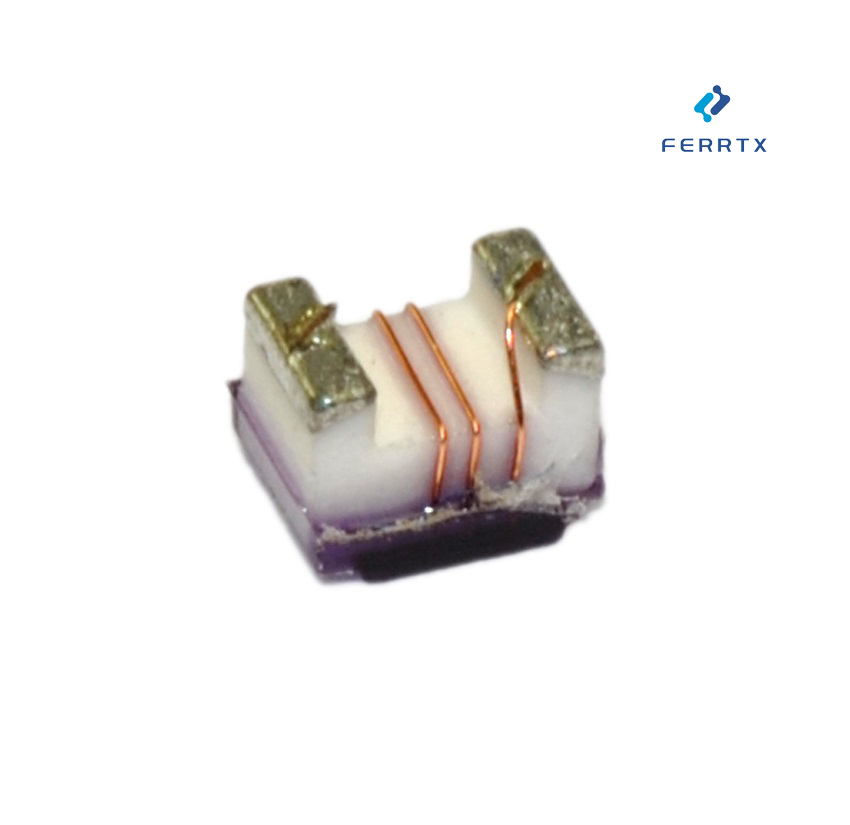

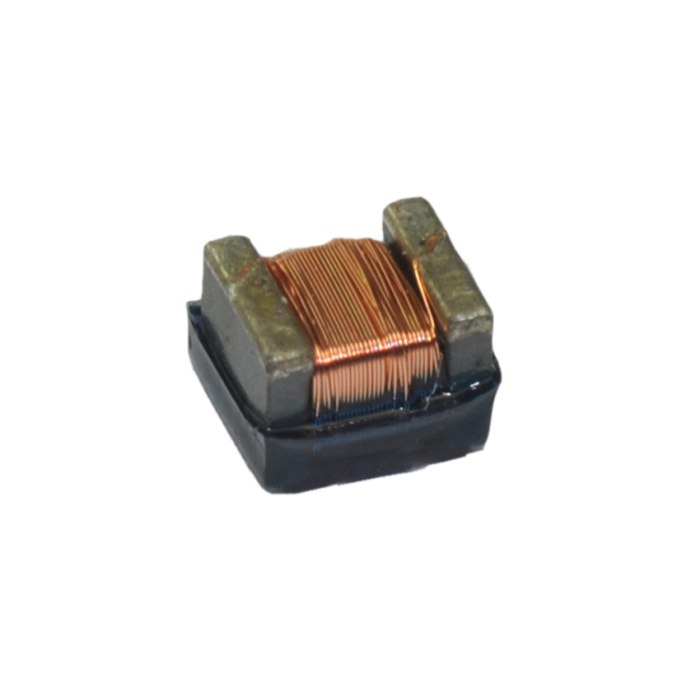

SMD Wire Wound Chip Inductor For RF (Radio Frequency) Modules,

Ceramic and ferrite materials are optional

‌FEATURES

‌‌‌-Excellent SRF‌ for ‌SMD Inductor‌ stability.

-Ultra-compact ‌SMD Inductor‌ designs with optimized ‌smd inductor dimensions‌ deliver exceptional Q values at high frequencies.

-Fixed Inductor‌-grade thermal stability for harsh environments.

-Operating temperature: -40°C to +125°C (incl. self-temperature rise), ideal for ‌smd inductor dimensions‌ integrity.

‌APPLICATIONS‌

-RF Modules‌: Optimized for ‌SMD Inductor‌ integration in cellular phones, GPS receivers, and base stations.‌

-Wireless LAN/Keyboards‌: Compact ‌smd inductor dimensions‌ enable space-saving layouts.

-Remote Controls/Security Systems‌: Reliable ‌Fixed Inductor‌ performance in telecom devices.

-‌Repeaters/DC Converters‌: Combines ‌Fixed Inductor‌ durability with ‌SMD Inductor‌ efficiency.

Series in this family

Product Series	Inductance(µH)	IDC(mA)	Length (mm)	Width (mm)	Height (mm)
AISC0402	1.0-120	30-1360	0.66	0.6	1.19
AISC0603	1.6-390	100-700	1.1	0.95	1.78
AISC0805	2.2-2200	150-800	1.7	1.52	2.3
AISC1008	3.9-10000	160-10000	2.79	2.1	2.92
AISC1210	3.9-10000	200-1000	2.9	2.25	3.5
AISC0603F	100-4700	200-1000	1.1	0.95	1.78
AISC0805F	1.0-22	80-430	1.7	1.52	2.3
AISC1008F	1.0-220	20-580	2.79	2.1	2.92
AISC1206F	-	130-320	3.56	2.16	1.52
AISC1210F	1.0-560	30-450	2.9	2.25	3.5
AISC1812F	1.0-1000	90-1000	3.4	3.15	4.8

Ferrites is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our SMD Inductor AISC AISC-F products.
