IGBT Drive Transformers

Key Features

• Engineered for robust performance in variable-frequency drives, these gate drive transformers deliver reinforced insulation and ultra-low coupling capacitance (as low as 2.5pF) for critical IGBT switching control.
• Featuring nanocrystalline toroidal cores, they achieve high corona extinction voltage and compact THT/SMT designs saving PCB space. With operating frequencies up to 100kHz and transmittable power up to 42W, they ensure precise pulse transmission.
• Fully enclosed construction provides mechanical durability and RoHS compliance.
• Optimized for synergy with EMC Filter in high-noise industrial environments.

Technical Specifications

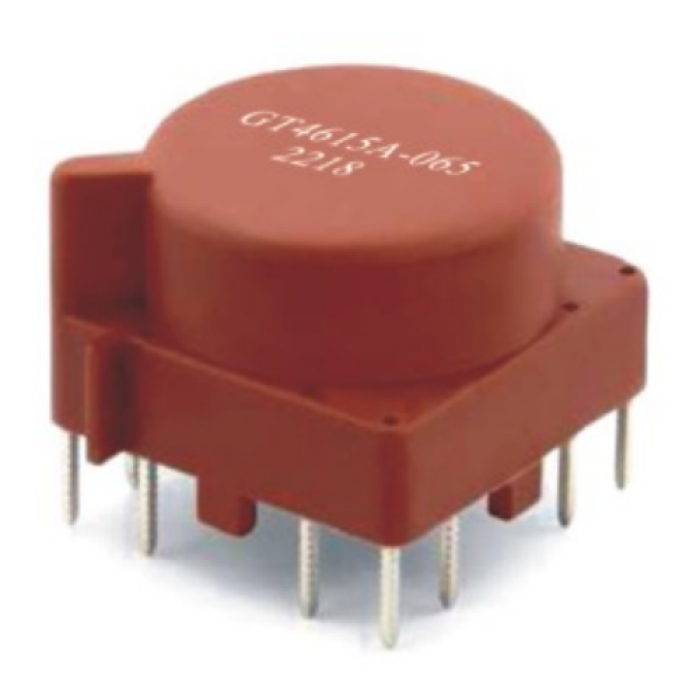

• Turns Ratio: 1:1 to 3:1:1 (e.g., GT28-301: 3:1, GT4615A-065: 2.9:1:1)

• Primary Inductance: 0.7mH to 22mH Min @10kHz

• Leakage Inductance: ≤25μH @100kHz

• Coupling Capacitance: 2.5pF to 50pF Typ

• Working Voltage: 300V to 1200V DC

• Hi-Pot Isolation: 1.8kV to 6.75kV AC

• Operating Temp: -40°C to +105°C

• Power Transmission: 3W to 42W

Applications

• Industrial Motor Drives: IGBT gate control in VFDs

• Renewable Energy: Solar/wind Power Converter

• UPS Systems: Isolated DC/DC switching

• EV Charging: High-voltage power management

• Factory Automation: PLC-based motor controllers

FAQ

Q: How do these differ from standard Power Inductors?
A: Designed for signal transfer (not energy storage), with lower coupling capacitance and higher isolation than Power Inductor.

Q: Suitable for high-frequency SMPS designs?
A: Yes, optimized for 20kHz–100kHz operation.

Q: Custom ratios available?
A: Multiple standard configurations; contact for custom Transformer.

Cross-Industry Integration

• Power Converters leveraging 1200V isolation
• Industrial Transformers for motor drive safety
• EMC Filters paired for EMI reduction in solar inverters

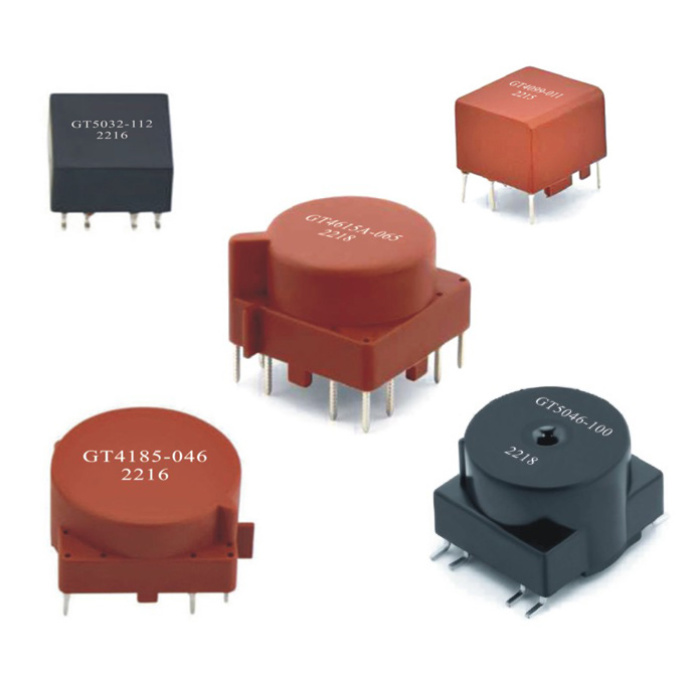

Series in this family

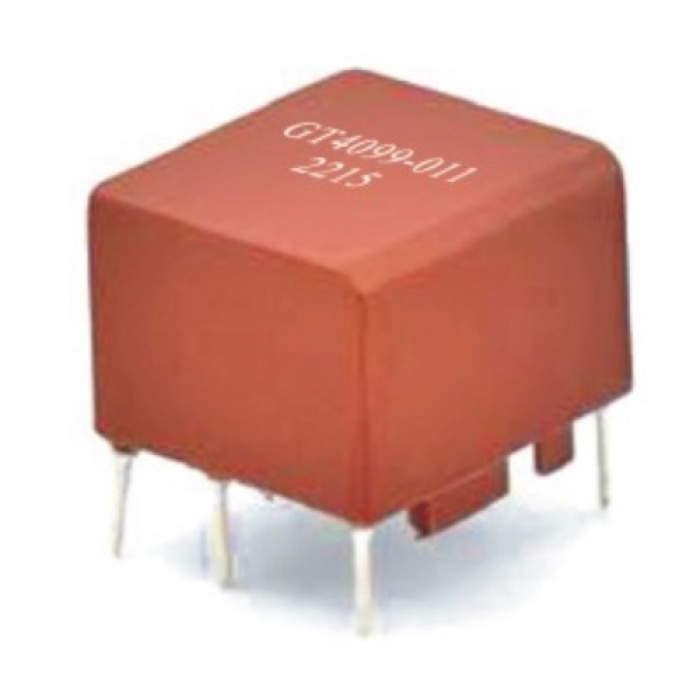

Product Series	GT28 Series	GT4099	GT4185	GT4215

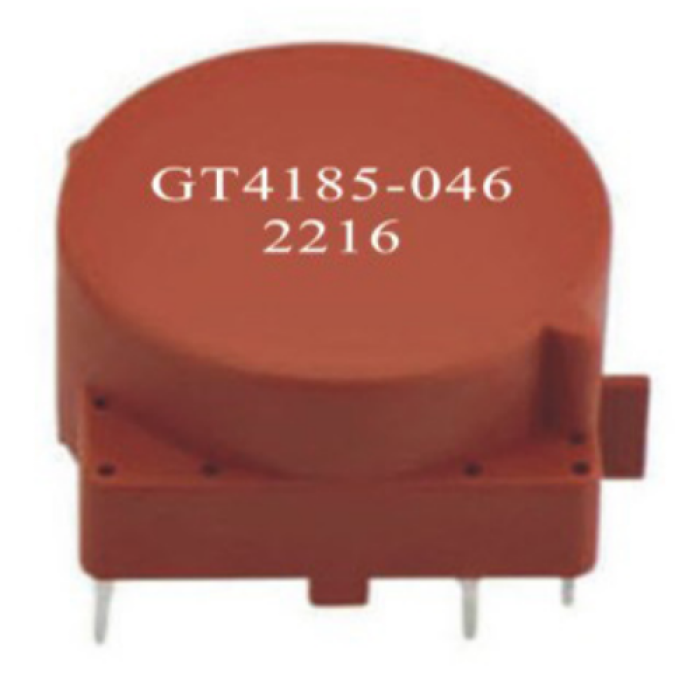

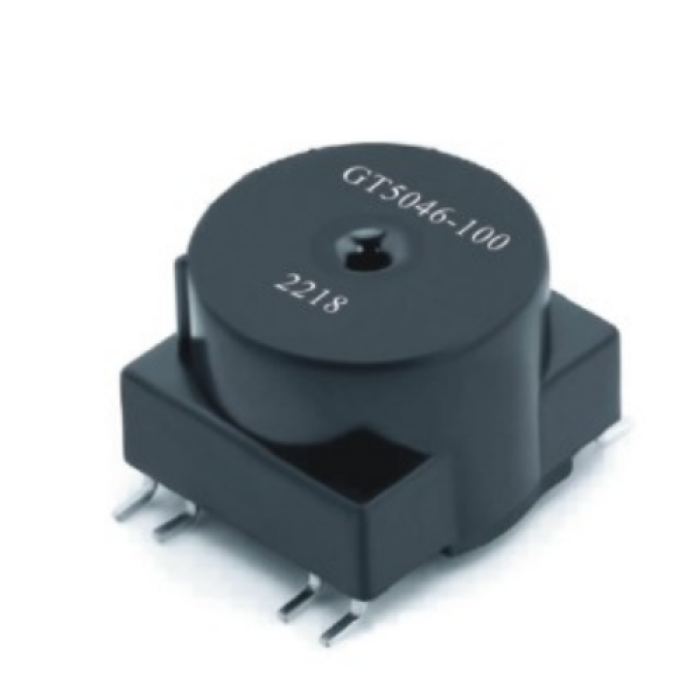

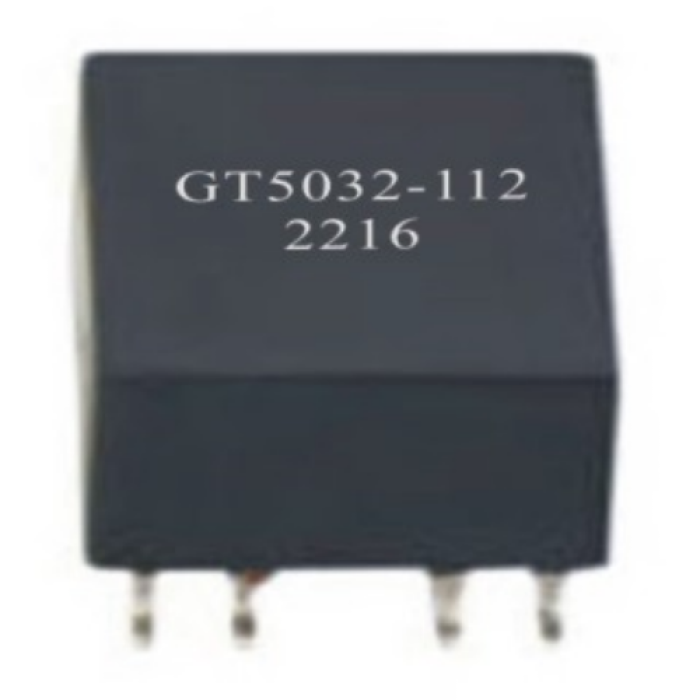

	GT4615	GT5032	GT5046

FERRTX is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our IGBT Drive Transformers products.
