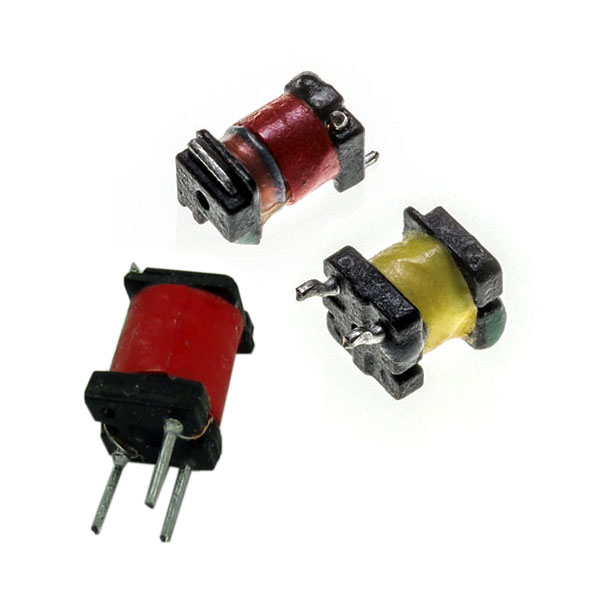

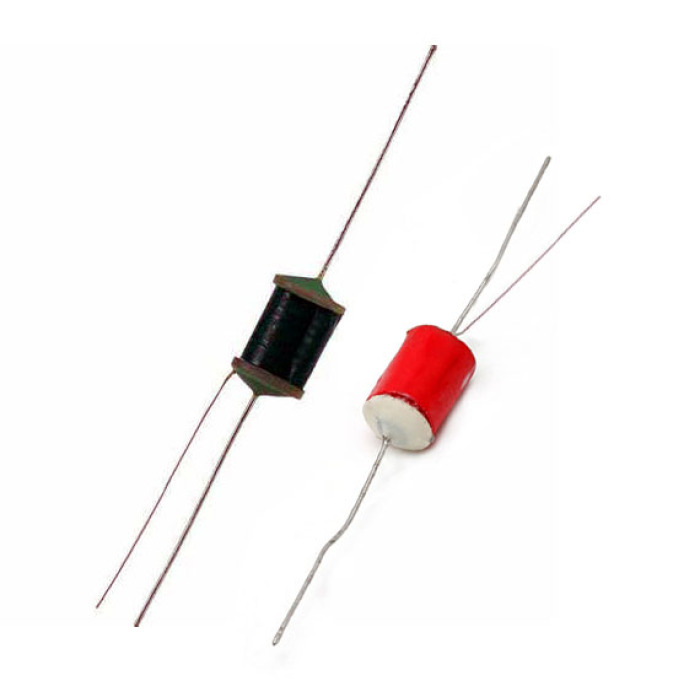

About Trigger Transformers

Key Features

• Engineered for precision high-voltage pulse generation, these trigger transformers deliver up to 20kV output with step-up ratios ranging from 1:50 to 1:70.
• Featuring epoxy-encapsulated windings and UL-compliant construction, they achieve ultra-low DCR (as low as 41.2mΩ primary) and stable performance across -65°C to +150°C.
• Compact designs with DIP/SMT mounting ensure seamless integration into space-constrained boards.
• Optimized for fast rise times and minimal waveform distortion in photoflash systems.

Technical Specifications

• Turns Ratio: 1:50 to 1:70 (model-dependent)
• Primary Inductance: 1.2µH to 19µH @1kHz, 0.1V–1V
• Secondary Inductance: 2.7mH to 49mH @1kHz, 0.1V–1V
• DCR Primary: 41.2mΩ to 420mΩ
• DCR Secondary: 67Ω to 185Ω
• Output Voltage: 4.4kV to 20kV @230V–400V input
• Hi-Pot Isolation: Up to 20kV
• Operating Temp: -65°C to +150°C
• Capacitance: ≤30pF (inter-winding)

Applications

• Camera Flashes: High-voltage triggering in DSLR/compact cameras
• Medical Imaging: Strobe lighting for diagnostic equipment
• Security Systems: Motion-activated photoflash with Sensor integration
• Industrial Testing: High-speed photography for quality control
• Aerospace: Ignition systems in propulsion testing

FAQ

Q: Compatible with high-frequency drivers?
A: Optimized for 1kHz–100kHz operation in Power Converter circuits.

Q: Custom ratios available?
A: Standard 1:50–1:70 ratios; contact for specialized Transformer.

Cross-Industry Integration

• Sensor-triggered safety systems with 20kV isolation
• Power Converter modules for capacitor charging circuits
• Transformers in laser pulse generators for scientific research

Series in this family

Product Series	21TPR	TCB0609	TCB1016
	TCB3012-13	TCB3616	TCB7513-1
	TCB7524	TCB7822	TCB8016-LF1

FERRTX is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our Ferrites Trigger Transformers products.
