Power Line Common Mode Choke CM

Common Mode Chokes For Line Filter

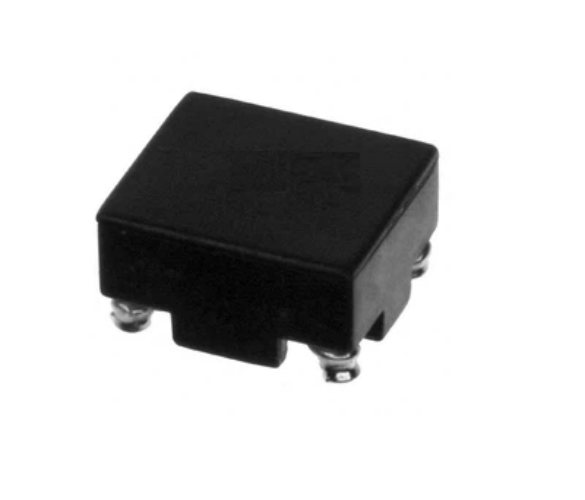

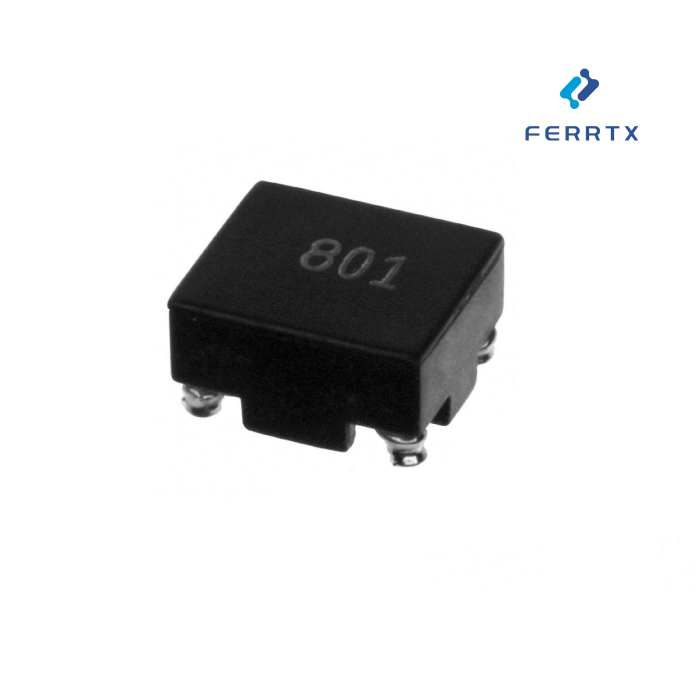

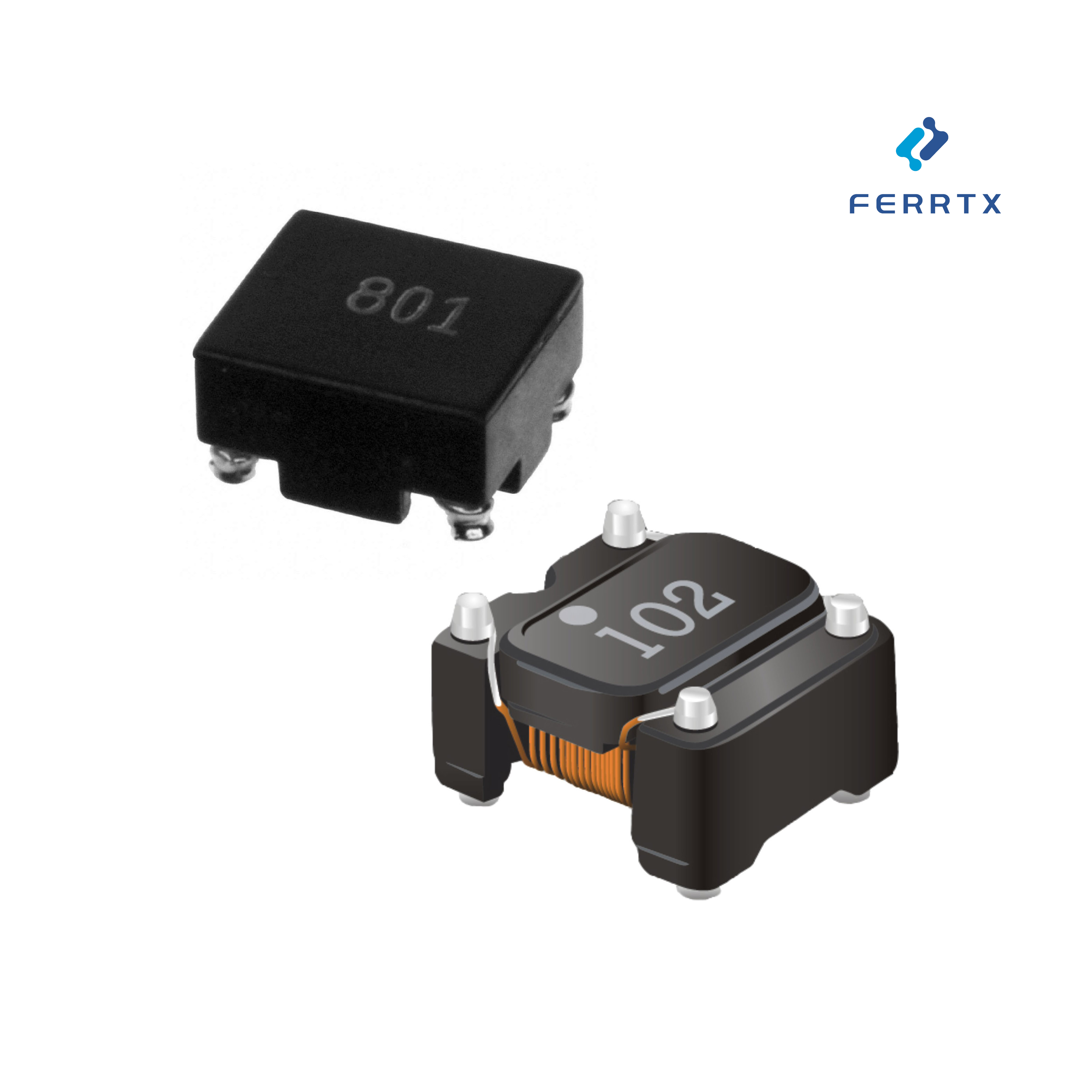

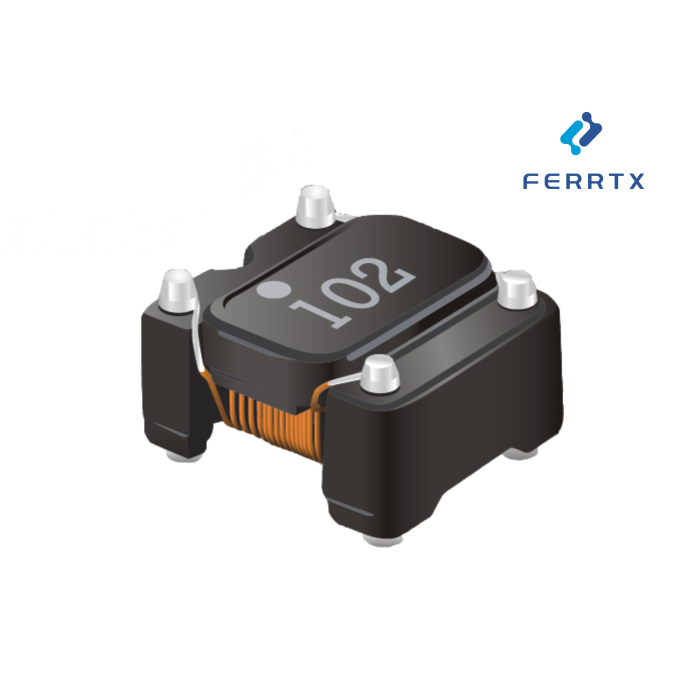

The Power Line Common Mode Choke, also known as a common mode inductor, is an electronic component used to suppress Electromagnetic Interference (EMI). It is primarily utilized in power lines to reduce common mode noise propagating from the device to the power line, and also to minimize common mode noise from the power line entering the device.

Common mode noise refers to voltage or current signals of the same phase that exist between the power line and the ground line. This noise is typically caused by parasitic capacitance between the power line and the ground line, which generates common mode currents when high-frequency signals pass through. The Common Mode Choke operates by generating opposite magnetic fields in its two windings, thereby increasing impedance in the common mode path and effectively suppressing common mode noise, while having minimal impact on differential mode signals (i.e., signals between two conductors).

Common mode chokes are typically constructed with a magnetic core made of ferrite or other high-permeability materials, and two windings wrapped around it. These two windings are often designed to be tightly coupled to ensure maximized interaction in the magnetic field, thereby enhancing the suppression effect on common mode noise.

In practical applications, common mode chokes are widely used in various electronic products, including computers, medical equipment, audio devices, etc., to ensure that the devices comply with electromagnetic compatibility standards and reduce electromagnetic interference to external devices and the power grid.

FEATURES:

·Ferrite Core bobbin construction

·High frequency and Large current

·Excellent Mechanical Strength

·Excellent Solderability

·Excellent Frequency performance

·Low Profile and Low cost

·Current rating up to 1.4A

·Inductance range: 120 to 5000uH

·Frequency range to 200 MHz

·RoHS compliant

APPLCATIONS:

·Video Cameras

·Communication System

·Automotive Systems

·Liquid Crystal Televisions

·Hard Disk Drives

·Network Systems

·Computer Peripheral Equipment

·EMI suppression

·DC-DC Converter

·Input/Output line fitter

·RFI noise suppression

Series in this family

Ferrites is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in ourPower Line Common Mode Choke CM products.
