Power Line Common Mode Choke ET

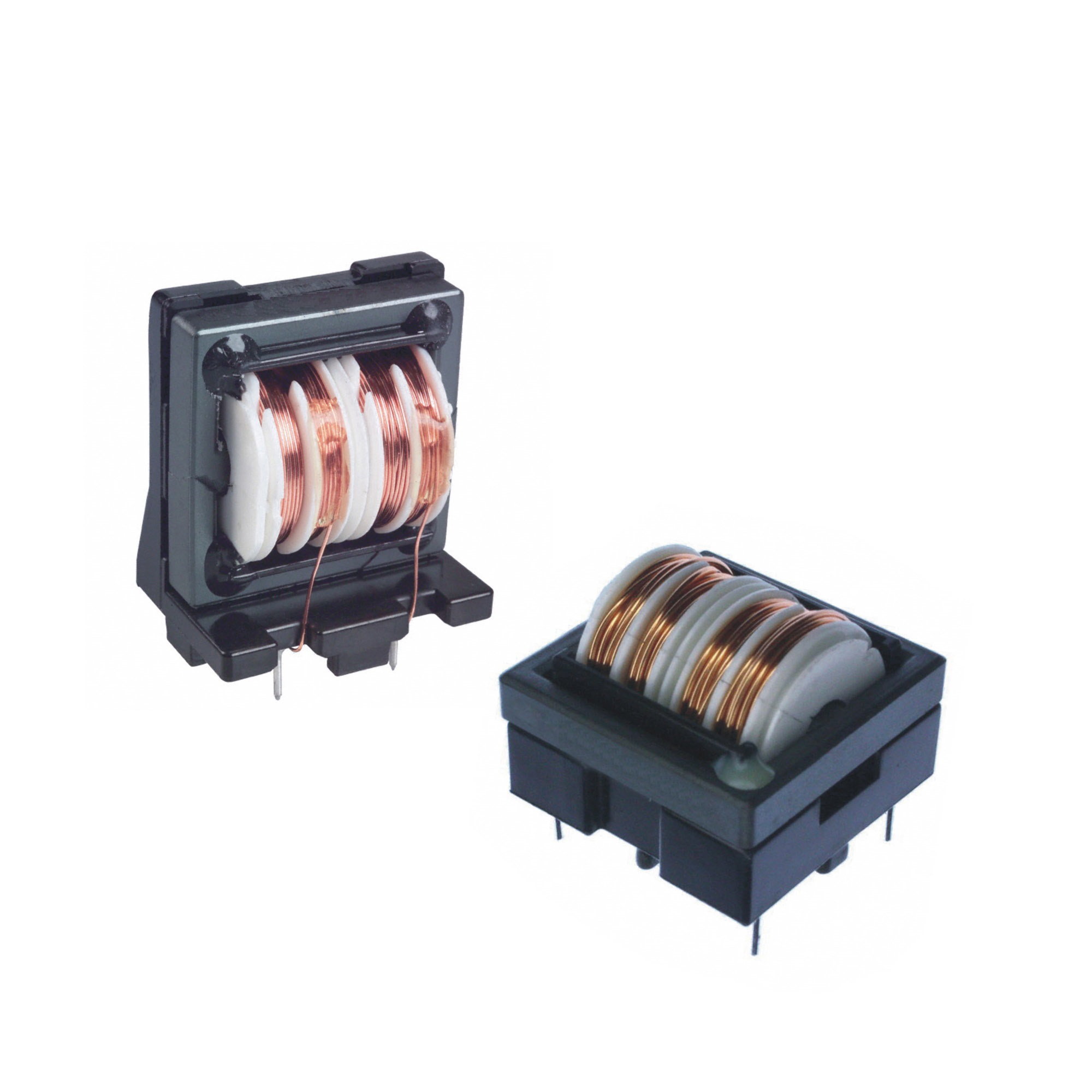

The ‌Power Line Common Mode Choke ET‌ is a premium ‌EMI Filter‌ solution engineered to suppress common-mode noise in high-frequency power systems. Leveraging a closed rectangular Ferrite Core and dual-section winding design, this ‌Power Line Common Mode Choke‌ achieves exceptional high-frequency performance with just 1% stray inductance, ensuring symmetrical interference suppression for applications like compact switch-mode power supplies and LED lighting. Its precision-tuned ‌common mode choke polarity‌ configuration optimizes noise cancellation, while robust insulation and a wide operating temperature range (-25℃ to +125℃) make it indispensable for industrial-grade ‌EMI Filter‌ assemblies requiring reliability and compact integration.

‌Technical Advantages‌

1. ‌Closed Ferrite Core Design‌: The ‌Power Line Common Mode Choke ET‌ utilizes a closed rectangular ferrite core to enhance magnetic efficiency, aligning with stringent ‌EMI Filter‌ standards for switch-mode power supplies.
2. ‌Dual-Section Winding‌: Engineered for symmetry, its ‌common mode choke polarity‌ alignment minimizes stray inductance, delivering superior noise suppression in electronic ballasts and LED bulbs.
3. ‌High-Frequency Resilience‌: Rated for 50/60Hz operation, this ‌Power Line Common Mode Choke‌ excels in lighting and automotive systems where ‌EMI Filter‌ stability is critical.

‌Applications‌

• ‌Switch-Mode Power Supplies‌: Integrate this ‌EMI Filter‌-grade ‌Power Line Common Mode Choke‌ to neutralize common-mode noise in high-density power modules.
• ‌LED Lighting Systems‌: Leverage its ‌common mode choke polarity‌ precision to ensure flicker-free performance and compliance with EMC regulations.
• ‌Industrial Electronics‌: Deploy as a core ‌Power Line Common Mode Choke‌ to safeguard sensitive equipment from voltage surges and electromagnetic interference.

‌Key Features‌

• ‌Symmetrical Noise Suppression‌: Achieved through 1% stray inductance and optimized ‌common mode choke polarity‌ design.
• ‌Wide Temperature Range‌: Operates reliably from -25℃ to +125℃, ideal for harsh-environment ‌EMI Filter‌ deployments.
• ‌2000V Insulation Rating‌: Ensures safety and durability in high-voltage ‌Power Line Common Mode Choke‌ applications.

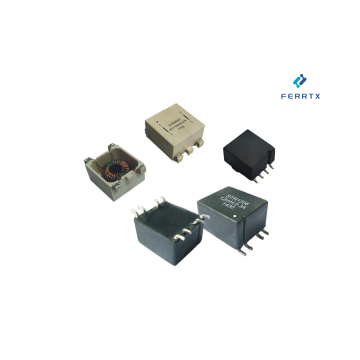

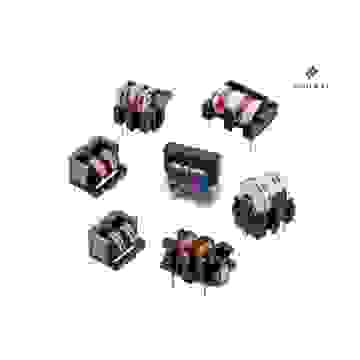

Series in this family
