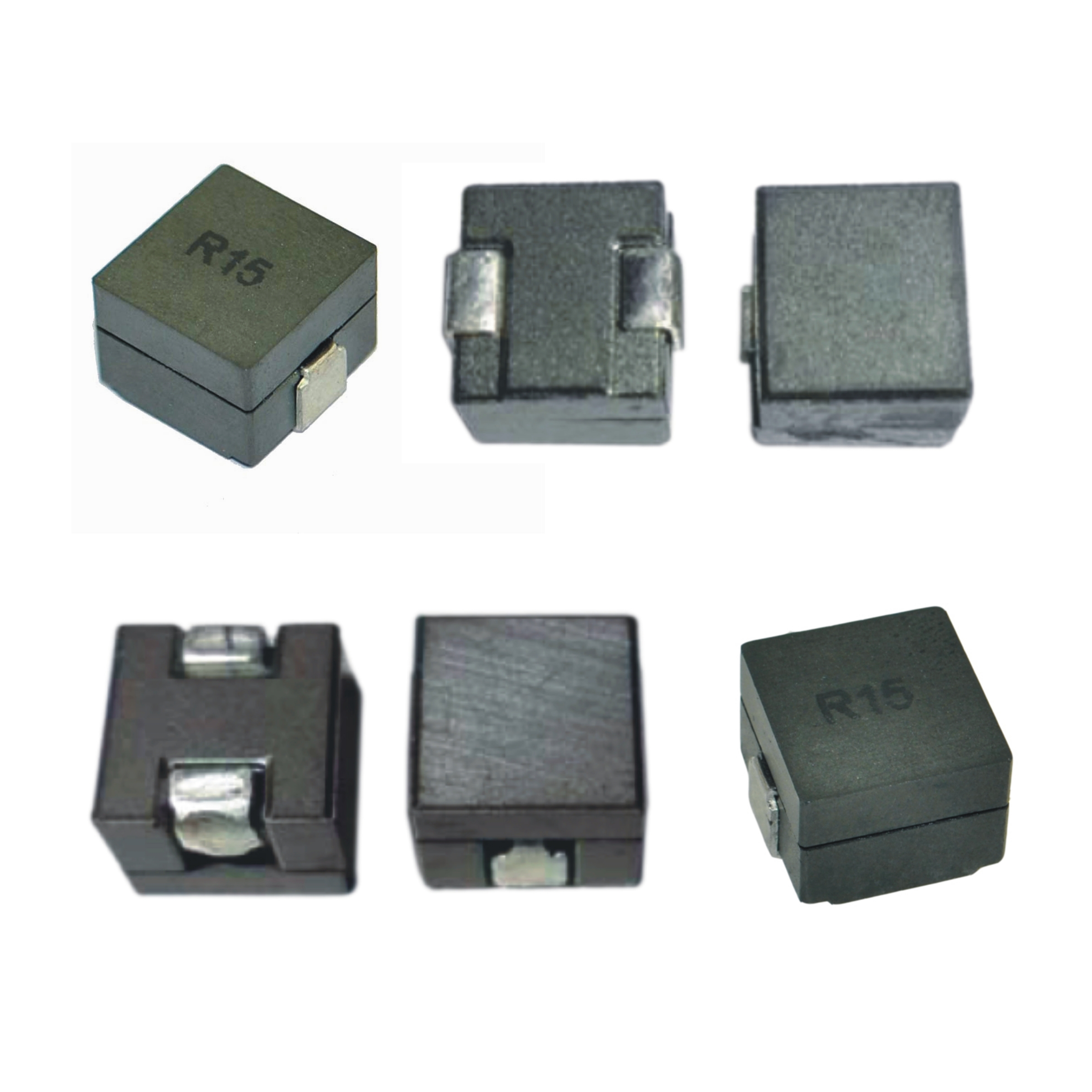

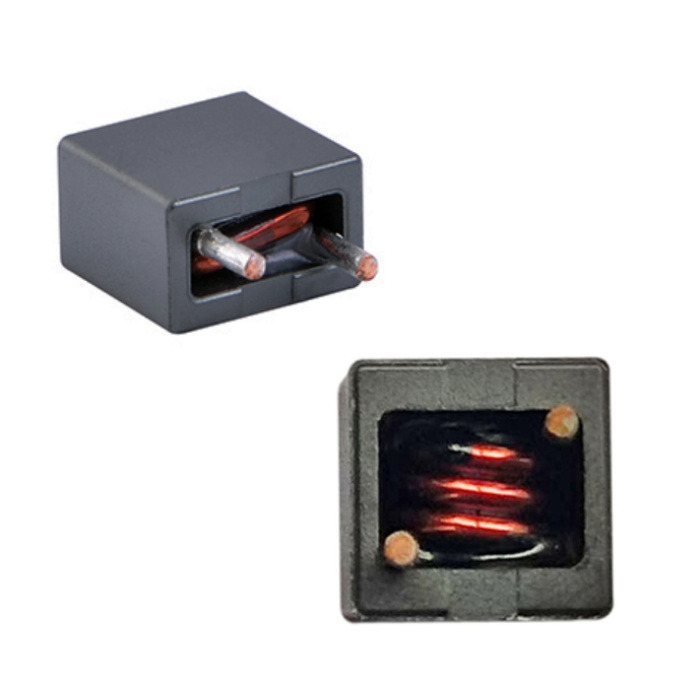

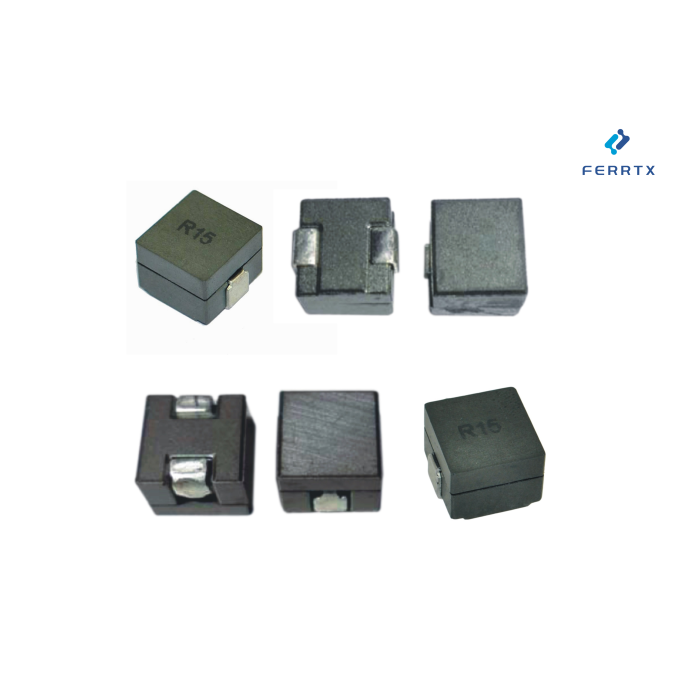

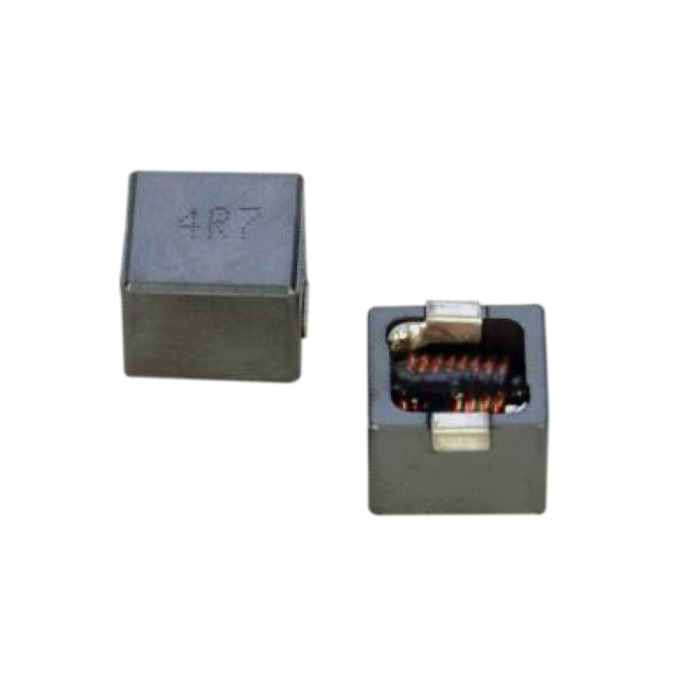

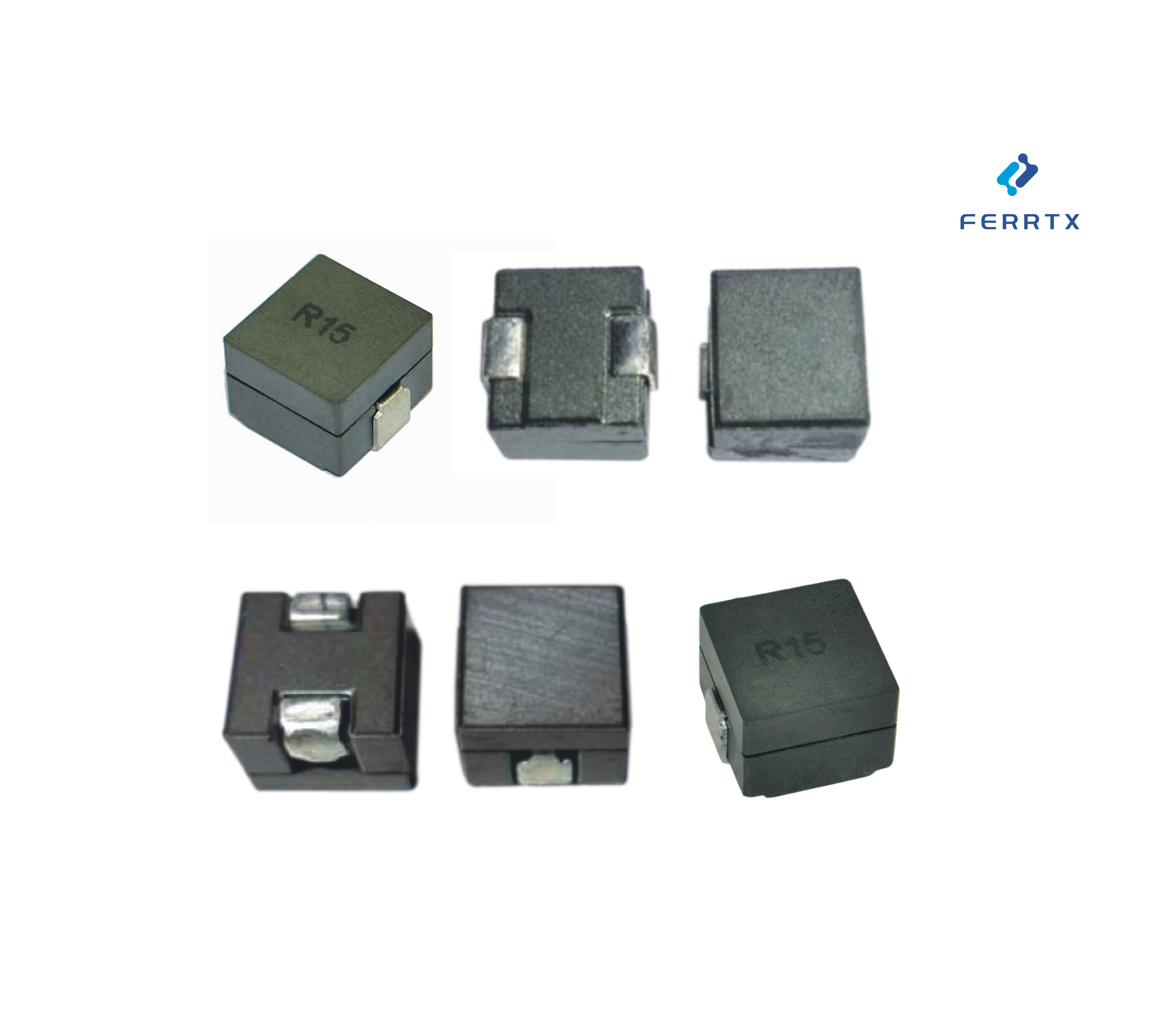

Shielded inductor HCB

The HCB Series Shielding Inductors are designed for power electronic applications that require effective EMI suppression, stable inductance, and compact surface-mount packaging.

This page introduces the HCB product family, which remains part of the core Shielding Inductor category after the HSM series has been separated into its own dedicated product line.

As shielding inductors, HCB components provide reliable magnetic shielding while supporting customized electrical and mechanical requirements.

Overview of Shielding Inductors

Shielding inductors are engineered to confine magnetic flux within the core structure, minimizing electromagnetic radiation and interference with surrounding components.

Compared with Unshielding Inductor designs, shielded inductors offer:

• Lower EMI emission

• Reduced magnetic coupling

• Improved circuit stability

HCB inductors are optimized for power applications where noise control is a key design factor.

HCB Series shielded inductor Features

The HCB Series focuses on versatility and reliability in modern power electronics. These Shielding Inductor HCB models are designed for surface-mount assembly and high-density PCB layouts.

Key features include:

• Integrated magnetic shielding structure

• Stable inductance under DC bias

• Compact SMD package for automated assembly

• Consistent performance across operating temperatures

HCB inductors complement other SMD Inductor solutions in space-constrained designs.

Molded Construction & Magnetic Performance

HCB series inductors adopt a molded encapsulation process, positioning them within advanced molded inductors technology.

This construction provides:

• Enhanced mechanical strength

• Improved thermal dissipation

• Better control of magnetic leakage

The molded structure ensures long-term reliability in industrial and consumer power systems.

Customized Shielded Inductor Solutions

Ferrtx offers customized shielded inductor services based on the HCB platform to meet application-specific requirements.

Customization options include:

• Inductance range adjustment

• Rated current and saturation current tuning

• Package size and footprint modification

Our engineering team supports both standard and custom HCB shielding inductors for volume production.

Typical Applications of HCB Shielding Inductors

HCB Series shielding inductors are widely used in:

• DC-DC converters

• Switching power supplies

• Power management modules

• Industrial control systems

• Communication and networking equipment

They are especially suitable for EMI-sensitive circuits where shielding performance is critical.

Why Choose FERRTX HCB Shielding Inductors?

• Clear differentiation from HSM shielded power inductors

• Flexible customization support

• Stable quality for mass production

• Dedicated technical assistance

FERRTX HCB shielding inductors provide a reliable solution for designers seeking controlled EMI and consistent electrical performance.
