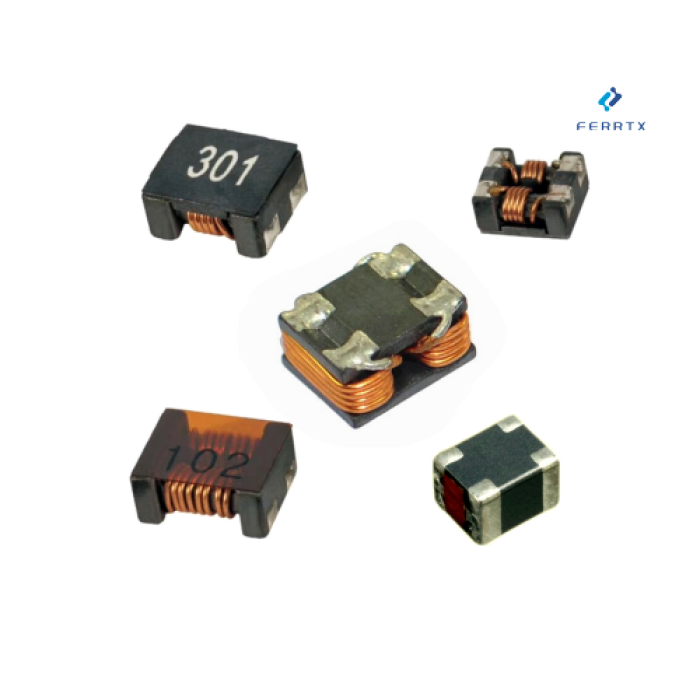

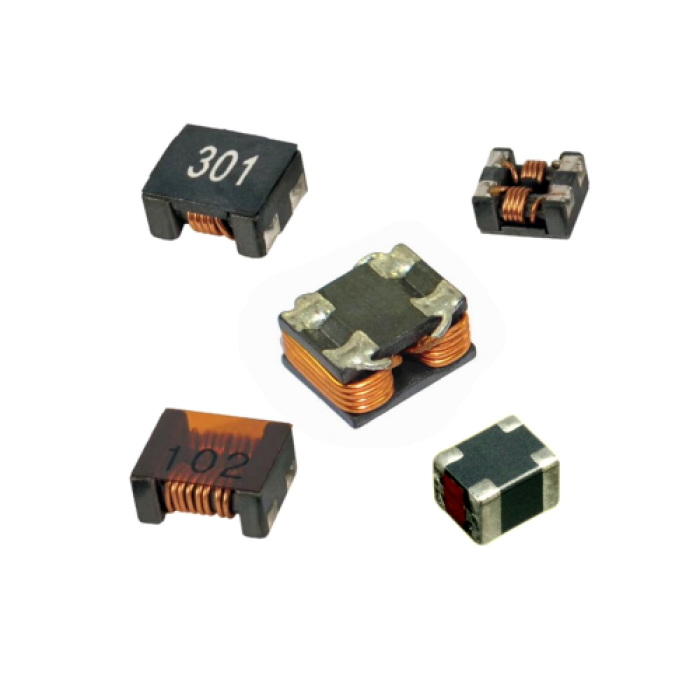

SMD Common Mode Chokes SQD

The SQD Series SMD Common Mode Chokes are compact surface-mount EMI suppression components designed to reduce common-mode noise on power and signal lines. This page is dedicated to the SQD series, which has been independently separated from the legacy product range to provide clearer classification and improved application matching on the new Ferrtx website.

As a Common Mode Choke SMD solution, the SQD series combines stable electrical performance with space-saving design, making it suitable for modern high-density PCB layouts.

What Is Common Mode Choke Operation?

Common mode choke operation is based on suppressing unwanted high-frequency noise that appears simultaneously on multiple conductors in the same direction (common-mode noise), while allowing differential signals to pass with minimal loss.

In typical operation:

• Differential currents generate opposing magnetic flux, which cancels out

• Common-mode noise generates reinforcing magnetic flux, creating high impedance

• Noise energy is attenuated without affecting normal signal transmission

This operating principle makes sqd Common Mode Chokes a core component in EMI Filter circuits for compliance with EMC standards.

SQD Series Key Features

• Surface-Mount (SMD) Structure
  Designed for automated assembly and compact PCB layouts.

• Efficient Common-Mode Noise Suppression
  High impedance for common-mode signals across a wide frequency range.

• Low Differential-Mode Loss
  Maintains signal integrity during normal operation.

• Stable Electrical Performance
  Suitable for continuous operation under varying load conditions.

• High Reliability Materials
  Uses precision ferrite cores for consistent EMI attenuation.

SQD chokes are often deployed together with Power Line Common Mode Choke components to form multi-stage noise filtering architectures.

Applications of SQD Common Mode Choke SMD

The SQD Common Mode Choke SMD series is widely used in applications requiring reliable EMI suppression with minimal board space:

• AC-DC and DC-DC power modules

• Switching power supplies

• Industrial control systems

• Consumer electronics

• Communication and interface circuits

These chokes are frequently combined with SMD Common Mode Chokes and ferrite bead inductor solutions to enhance overall EMC performance.

SQD Series vs Traditional Common Mode Chokes

Compared with through-hole or bulkier designs, SQD series SMD chokes offer:

• Reduced footprint for compact electronics

• Improved consistency in mass production

• Better integration with modern reflow soldering processes

This makes them an ideal choice for next-generation Emi Filter and noise suppression designs.

Custom SMD Common Mode Choke Solutions

Ferrtx provides customization options for the SQD Common Mode Chokes, including:

• Inductance and impedance tuning

• Current and voltage rating optimization

• Size and footprint adjustment

• Application-specific EMI performance targets

Our engineering team supports both prototyping and volume production.

Why Choose FERRTX SQD SMD Common Mode Chokes?

• Independent SQD series classification for precise product selection

• Proven Common Mode Choke Operation principles

• Stable quality and consistent performance

• Strong customization and technical support

FERRTX SQD Series SMD Common Mode Chokes deliver reliable EMI suppression for modern electronic systems that demand compact size, efficiency, and compliance.
