SQS Family

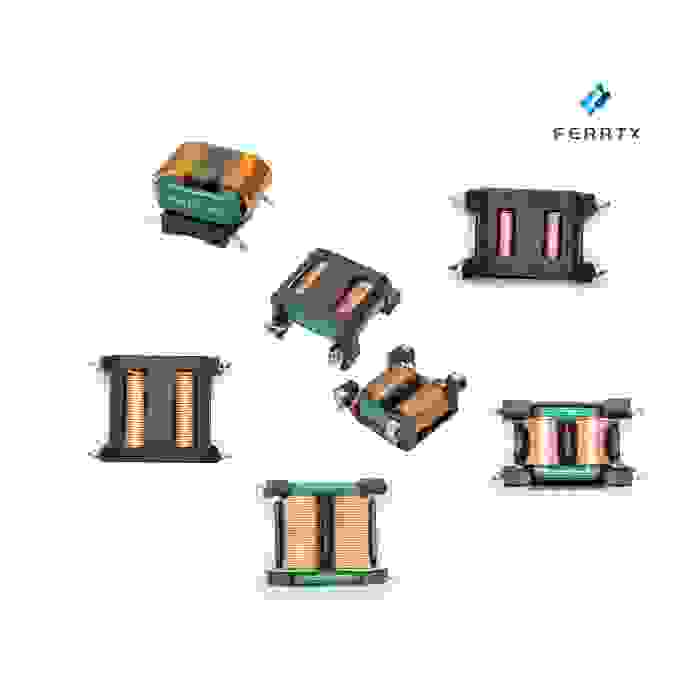

SMD High Current Flat Wire Common Mode Choke
The SMD Common Mode Chokes SQS series delivers advanced EMI Filter performance through optimized square-core design. These High Frequency Common Mode Chokes combine compact size with superior noise suppression, making them ideal for modern power electronics demanding space efficiency and reliability.
FEATURES:
・SMD Common Mode Chokes SQS utilize square cores for compact size, low DCR, and minimized leakage.
・High permeability material enables high low-frequency impedance – critical for Emi Filter stability.
・Low stray capacitance ensures high noise attenuation in High Frequency Common Mode Chokes.
・UL 94 V-0 flammability compliance | RoHS/REACH/Halogen-Free options.
・Automated production guarantees low cost and high consistency.
・Robust insulation: 2400VAC/60s withstand voltage | 100MΩ Min@500VDC between windings.
・Operating/Storage Temp: -40℃~+125℃ / -40℃~+85℃.
APPLICATIONS:
・Emi Filter solutions for power supply circuits and high-density switching-mode devices.
・Consumer/Industrial electronics: LCD TVs, battery chargers, power adapters, home appliances.
・Upgrade path for legacy High Frequency Common Mode Chokes with space-saving advantages.
・Drop-in replacement for existing SMD Common Mode Chokes in EMI-sensitive systems.
Series in this family
