Brand: FERRTX
| Selling Units: | Piece/Pieces |
|---|---|
| Download: |
|
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 2~8weeks
Certificate: RoHS/ISO/UL/CE/IATF16949/CNAS
Port: Xi'an,Shanghai
Payment Type: L/C,T/T

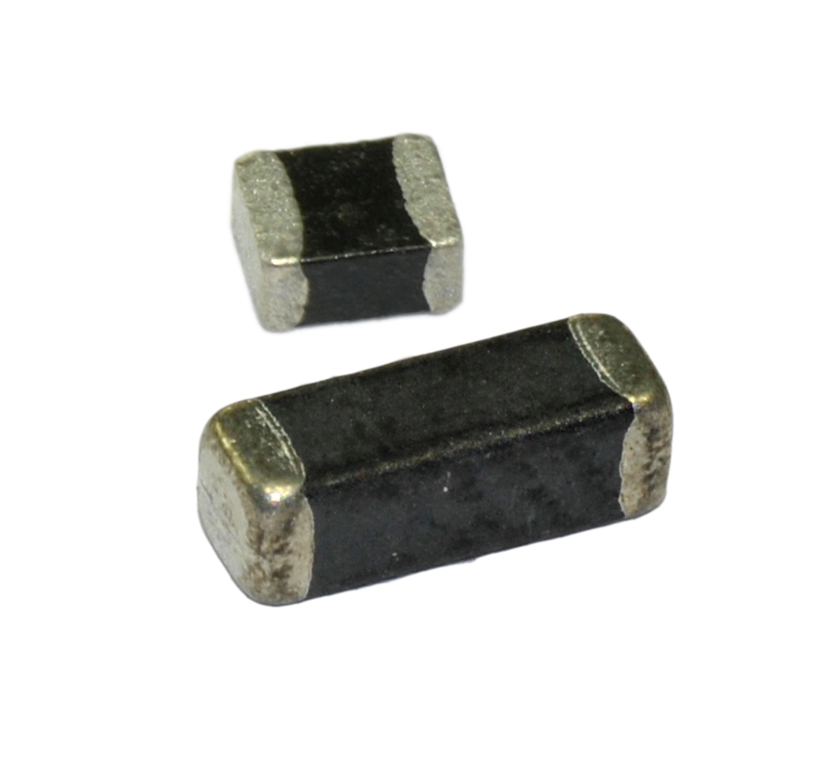

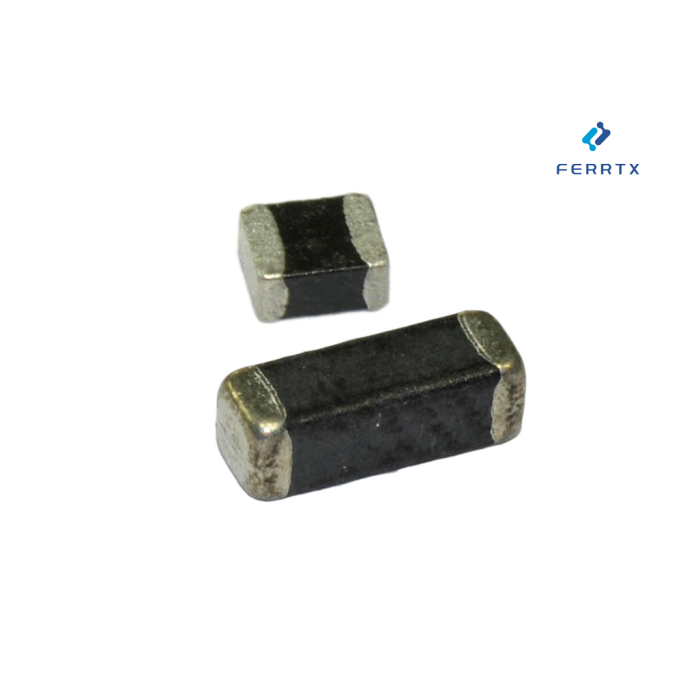

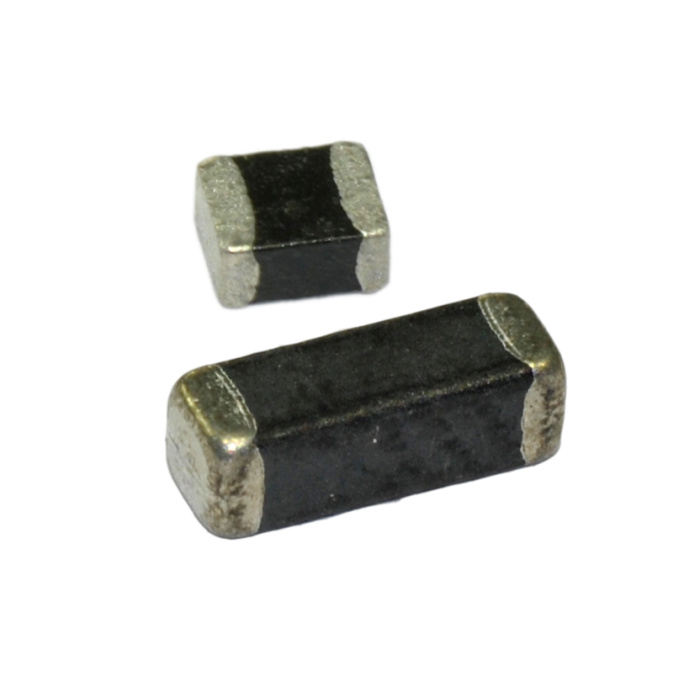

The AIML Series SMD Inductor is a compact, high-performance solution designed for modern power management circuits requiring high current capability, low DC resistance, and stable inductance under load.
Optimized for surface-mount assembly, AIML inductors are widely used in DC-DC converters, point-of-load regulators, and other high-efficiency power applications.
Compared with conventional chip inductors, the AIML series delivers improved thermal performance and reduced copper loss, making it ideal for space-constrained designs with demanding current requirements.
High Current SMD Inductor Design
Supports large saturation and ripple currents for power conversion circuits.
Low DC Resistance (Low DCR)
Minimizes conduction loss and improves overall system efficiency.
Compact SMD Package
Suitable for automated reflow soldering and high-density PCB layouts.
Stable Inductance Performance
Maintains inductance stability under DC bias conditions.
RoHS & Lead-Free Compliance
Fully compatible with environmentally friendly manufacturing processes.
Inductance range: refer to individual part numbers
Rated current: optimized for high-load applications
DC resistance: ultra-low DCR for reduced power loss
Operating temperature: –40°C to +125°C (typical)
Note: Detailed electrical parameters are listed in the specification table below. Custom inductance and current ratings are available upon request.The SMD Inductor AIML series is widely used in:
DC-DC power supplies and Power Converter systems
Voltage regulators and POL modules
Industrial control electronics
Consumer electronics and communication equipment
Automotive and embedded power systems
| Product Series | Inductance(µH) | IDC(mA) | Length (mm) | Width (mm) | Height (mm) |
| AIML0402 | 0.047-1.2 | 15-25 | 1.0 | 0.5 | 0.5 |
| AIML0603 | 0.047-22 | 1-50 | 1.6 | 0.8 | 0.8 |
| AIML0603H | 0.047-12 | 60-150 | 1.6 | 0.8 | 0.8 |
| AIML0805 | 0.047-47 | 5-300 | 2.0 | 1.2 | 0.9-1.2 |
| AIML0805H | 0.047-22 | 50-350 | 2.0 | 1.2 | 0.9 |
| AIML0805UH | 0.047-15 | 100-1100 | 2.0 | 1.2 | 0.9 |
| AIML1206 | 0.047-100 | 5-300 | 3.2 | 1.6 | 0.9-1.1 |
| AIML1206H | 0.047-27 | 50-450 | 3.2 | 1.6 | 0.9 |
| AIML1206UH | 1.0-18 | 100-1200 | 3.2 | 1.6 | 0.9 |
| AIML1210 | 1.0-120 | 150-600 | 3.2 | 2.5 | 1.3 |
| AIML1806 | 1.0-10 | 250-500 | 4.5 | 1.6 | 1.6 |
| AIML1812 | 1.0-120 | 150-650 | 4.5 | 3.2 | 1.5 |
Optimized for high current SMD inductor applications
Excellent balance between size, efficiency, and thermal performance
Reliable construction using high-quality Ferrite Core materials
Suitable for advanced power designs requiring low EMI and low loss
We provide OEM and ODM services, including:
Custom inductance values
Special current ratings
Package and pin configuration optimization
Contact our engineering team for datasheets, samples, or design-in support.
