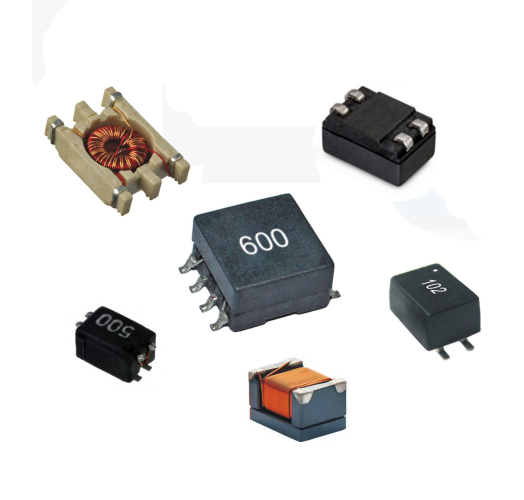

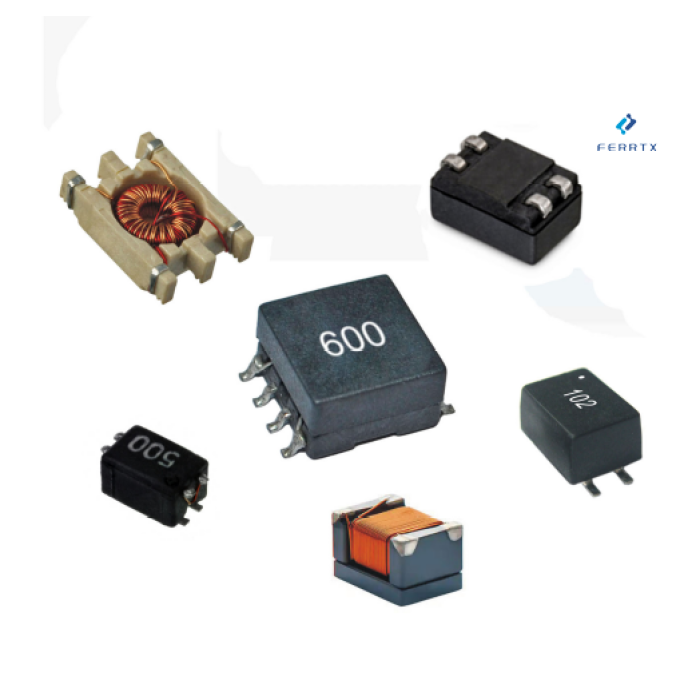

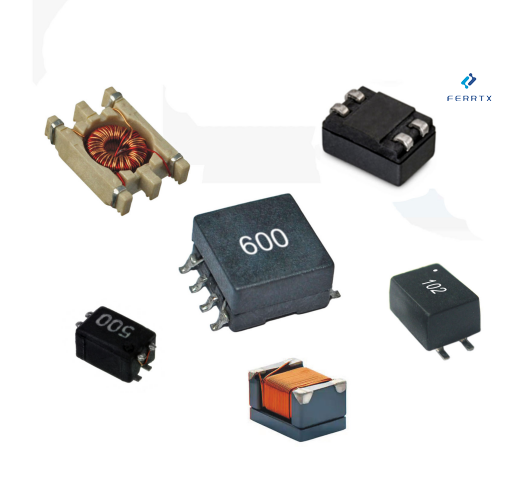

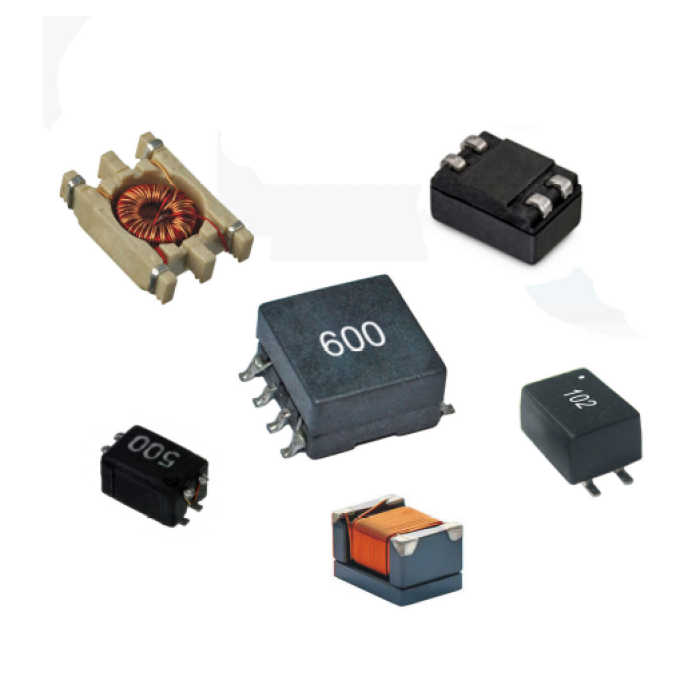

SMD Common Mode Chokes SF

EMI Line Filter

The ‌SMD Common Mode Chokes SF‌ series represents a high-performance solution for suppressing electromagnetic interference (EMI) in modern electronic circuits. These ‌Common Mode Choke Inductors‌ are specifically designed to filter out common mode noise while allowing differential signals to pass through unimpeded.

Key Features

• ‌High Performance‌: Offers excellent common mode impedance at high frequencies, ensuring superior noise suppression capabilities1
• ‌Automotive Grade‌: AEC-Q200 compliant (Grade 1), making them ideal for demanding automotive applications1
• ‌Premium Manufacturing‌: Produced in TS/IATF 16949 certified production lines for guaranteed quality and reliability
• ‌Space-Efficient Design‌: Low-profile construction provides effective performance in space-constrained applications
• ‌Environmentally Friendly‌: Lead-free construction and RoHS-compatible materials1
• ‌Advanced Core Technology‌: Features high-quality toroidal core design for optimal performance

Applications

These ‌Common Mode Chokes‌ find extensive use in:

• ‌Multimedia devices‌ requiring clean signal transmission
• ‌Automotive systems‌ including ADAS, infotainment, sensing, and TCU applications1
• ‌Automotive Ethernet‌ networks
• ‌High-speed digital equipment‌ such as computers and peripherals

Technical Advantages

The ‌SMD Common Mode Choke‌ series provides excellent electrical isolation through low-resistance filters, making them particularly effective in ‌EMI Filter‌ applications. Their performance characteristics make them suitable for integration with various ‌RF Microwave Components‌ and ‌EMC Filter - EMI/RFI‌ solutions.

Compatibility

These components are designed to work seamlessly with various ‌Power Inductors‌, ‌RF Inductors‌, and ‌Transformers‌ in complex electronic systems. Their compact SMD package makes them ideal for modern PCB designs where space is at a premium.
