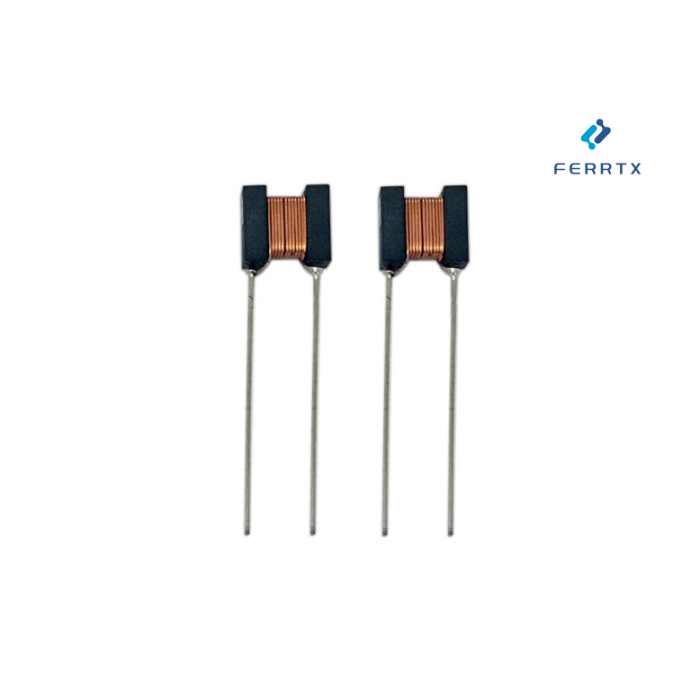

High-Quality Flat Coil Inductors

Introduction

In the rapidly evolving world of electronics, efficiency and reliability are paramount. Our company specializes in designing high-performance inductors that cater to the demanding needs of modern RF and compact PCB applications. With a focus on innovation, our AIFC1008 series stands out by delivering twice the inductance and Q values compared to traditional axial lead inductors in the same footprint. These mini inductors are engineered for high-density PCB assemblies, offering exceptional performance in RF circuits while mitigating common issues like lead inductance effect in microwave systems. Whether you're developing automotive systems, communication devices, or consumer electronics, our inductors provide the perfect blend of size, efficiency, and reliability. Ready to elevate your designs? Explore how our solutions can transform your projects!

Product Overview

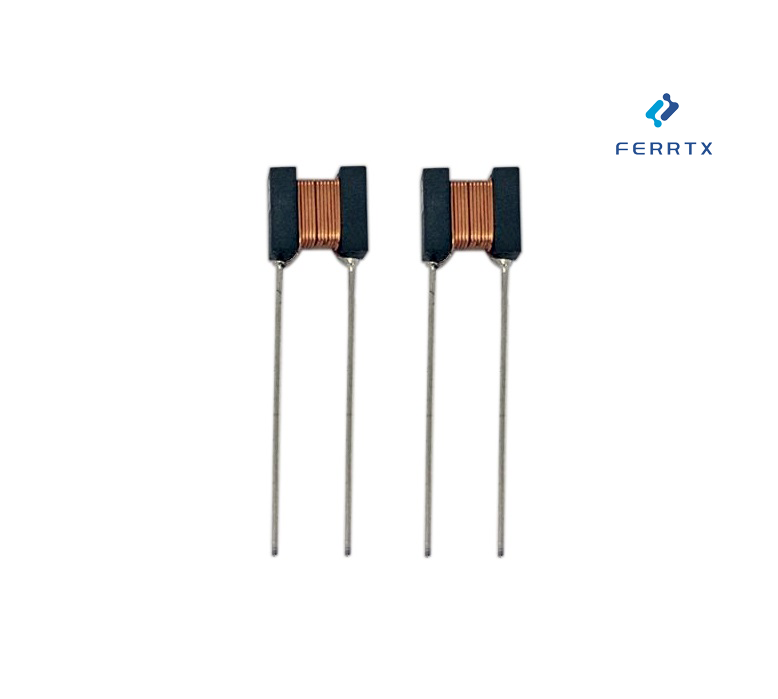

Our AIFC1008 series features a unique flat coil configuration that maximizes space efficiency without compromising performance. These inductors are ideal for applications where miniaturization and high Q values are critical. With an operating temperature range of -55°C to +130°C and a weight of just 1 gram, they are built to withstand harsh environments while maintaining stability. The series includes inductors with inductance values from 1.0 μH to 4700 μH, catering to both RF and audio frequency needs. Below is a summary of key parameters for select models:

Key Features

1. High Q Value: Our inductors achieve Q values up to 75, ensuring minimal energy loss and enhanced efficiency in RF circuits. This makes them ideal for high-frequency applications like filters and amplifiers.
2. Compact Design: The flat coil structure allows for seamless integration into high-density PCBs, saving space without sacrificing performance. This is critical for modern devices like smartphones and IoT modules.
3. Low DC Resistance: With RDC as low as 0.010Ω, our inductors reduce power loss and heat generation, improving overall system reliability.
4. High Saturation Current: Models like the AIFC1008-1R0K handle up to 7.0A, making them suitable for power-intensive applications such as DC-DC converters and EMI filters.
5. Robust Construction: Built with a Ferrite Core and wire-wound technology, these inductors offer excellent thermal stability and durability, even in automotive environments.

Applications
Our inductors are versatile and cater to a wide range of industries:

• RF Circuits: Perfect for impedance matching and filtering in communication equipment, GPS, and 5G modules.
• Automotive Systems: Used in ADAS, V2X communication, and infotainment systems due to their high reliability and temperature resilience.
• Consumer Electronics: Ideal for smartphones, PDP/LCD TVs, and gaming consoles where space and efficiency are critical.
• Industrial Equipment: Employed in sensors and Transformers for noise suppression and power management.
