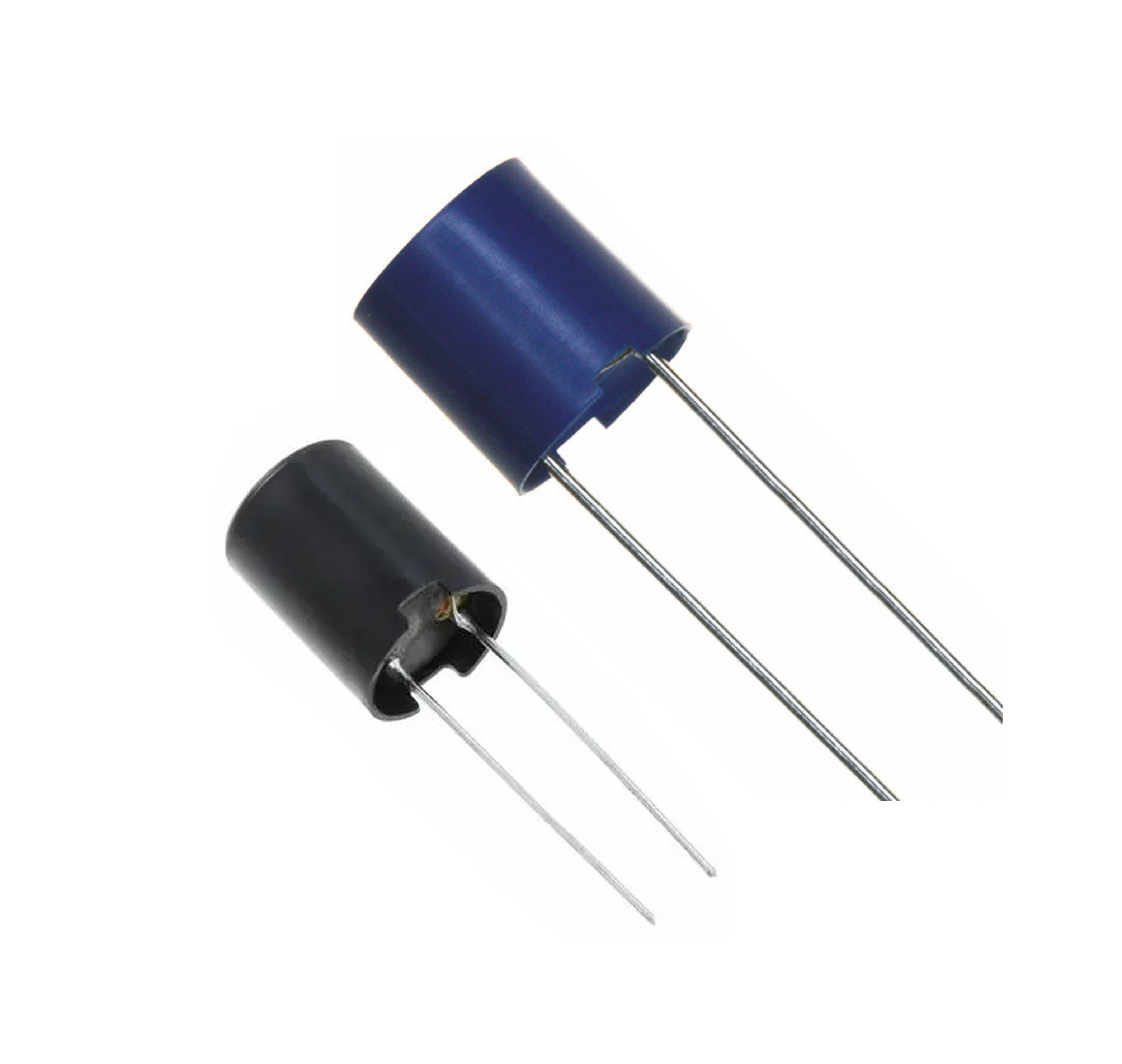

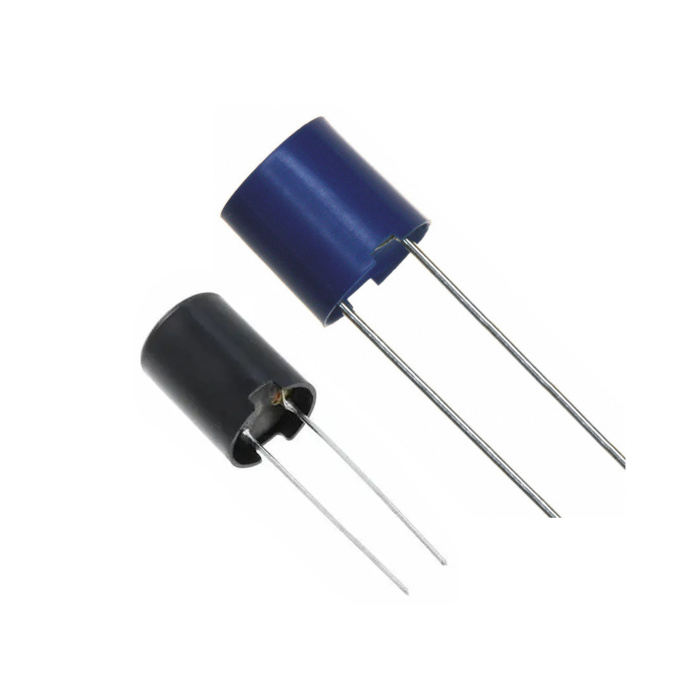

Model No.: LGB-C
Brand: FERRTX
Species: Inductor Leaded
Supply Type: Original Manufacturer
Place Of Origin: China
Installation Method: Through Hole
Features: Low DCR Ferrite Core
Inductance Range: 1μH-15,000μH
Current Rating: 0.16A-5.9A
DCR (DC Resistance): 0.006Ω-24Ω
Operating Temperature: -40℃ to +105℃
Package Type: Radial Leaded
Core Material: Ferrite
Waterproof Rating: IP67 (Plastic Encapsulated)
| Download: |
|
|---|
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 2~8weeks
Certificate: RoHS/ISO/UL/CE/IATF 16949/CNAS
Port: Xi'an,Shanghai
| Parameter | LGB0709C | LGB1112C (Flagship) |
| Inductance Range | 1μH-1500μH | 3.3μH-15,000μH |
| Max Current | 5.0A (LGB0709C–1ROM) | 5.9A (LGB1112C–3R3M) |
| DCR Range | 0.006–5.0Ω | 0.010–24.0Ω |
| Temp Stability | -40°C to +105°C | -40°C to +105°C |
Engine control units (ECU power filtering)
LED lighting drivers (IP67-rated models)
Example: LGB1015C–220M operates at 2.26A with 0.03Ω DCR in 12V systems
Buck/boost circuits (Optimized for 100-500kHz)
XDSL modem power supplies
Proven Solution: LGB0809C–2P2M handles 4.0A at 2.2μH for 24V→5V conversion
GPS receivers
Switching power supplies (EMI Filter integration)
Q: How to select between K/M/N tolerance grades?
A: Use K-grade (±10%) for precision DC/DC converters; M-grade (±20%) for cost-sensitive consumer electronics.
Q: Can it replace surface-mount inductors?
A: Yes – our through-hole design provides superior heat dissipation vs SMD in >3A applications.
Q: Compatible with automated assembly?
A: Fully compatible with pick-and-place + wave soldering (260°C peak).
Where 5.9A current stability meets military-grade waterproofing – your power integrity redefined. Precision Magnetics, Engineered by FERRTX.
